Skylon “Floating” Flagpole


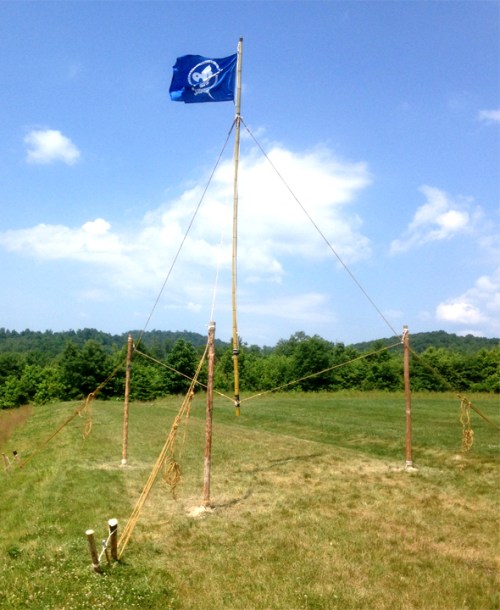

A flagpole suspended off the ground by a series of lines, so that it appears to be floating, can be a really neat project. The structural principle has been referred to as tensegrity, and is based on using one half the lines to lift the pole off the ground, and the other half to give it stability, supporting it in a vertical position. On occasion, Scouts choose to use more than three upright support poles, but just like with a simple flagpole employing three supporting guylines, three upright poles provide the required balance needed to hold the pole up straight. The longer the support poles, the higher off the ground the flagpole can go.

The Crew

There are many ways Scouts go about constructing  a suspended flagpole. The following materials were used for this particular flag display:

  • one 20-foot bamboo pole (flagpole)
  • three 10-foot x 3-inch pine spars (upright support poles)
  • nine pieces of rebar, sawed to 3 feet each
  • six 50-foot lengths of 3/8-inch manila (guylines)
  • three 3/8-inch double pulley blocks
  • 50-foot length of 1/4-inch braided nylon (for the halyard) along with a couple of clips
  • metal ring
  • six pioneering stakes
  • wooden mallet (for driving in the stakes)
  • club hammer (for driving in the rebar)
  • roll of friction tape
  • lengths of 1/4-inch braided nylon cord
  • binder twine

The following initial steps were taken for this particular flag display:

  1. SkylonPully

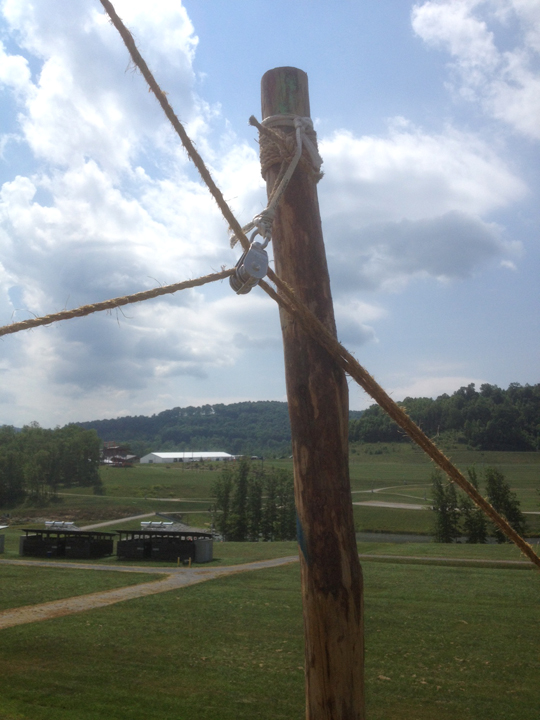

    Double Pulley Block and Tackle

    Where the flagpole will be placed, 9 feet from the center of an equilateral triangle, three holes are made, 4 inches in diameter and 2 feet deep.

  2. A double pulley is securely tied to the top of each 10-foot support pole and a 50-foot guyline is reeved through each sheave.
  3. A 10-foot upright support pole is planted in each hole which is packed with excavated material. Three lengths of rebar are pounded in around each spar.
  4. A span of friction tape is applied to the areas of the 20-foot flagpole, where the lines will be tied (bamboo is slick)
  5. The metal ring is tied to the tip of the 20-foot pole and the halyard is threaded through.
  6. A 1-1 anchor is installed about 9 feet behind each 10-foot spar

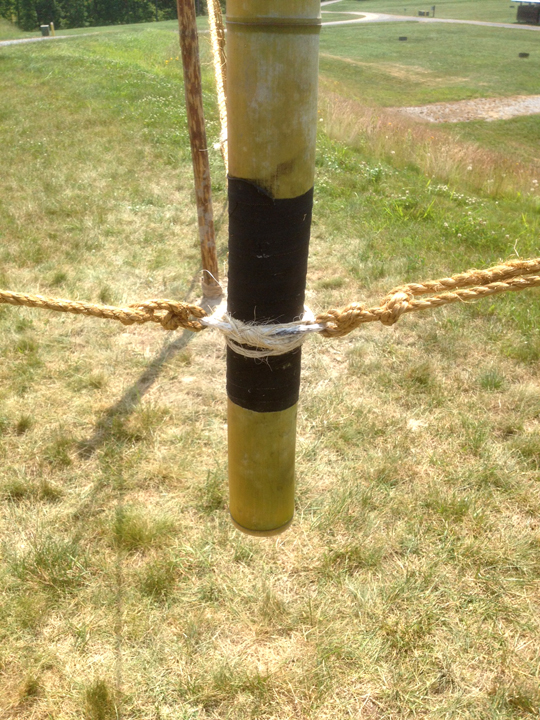

Jury Mast Knot Applied over Friction Tape

The following rigging procedure was followed for this particular flag display:

  1. A tight jury mast knot (#1168 in The Ashley Book of Knots) is applied over the friction tape at the bottom and 4 feet from the top of the flagpole.
  2. The guylines from each upright support pole are tied to corresponding loops in the jury mast knots at the top and bottom of the flagpole with two half hitches, the tail of which is tightly seized to the standing part using binder twine with a West Country Round Lashing.

The following procedure was followed to raise and support this particular flag display:

  1. Skylon 1-1

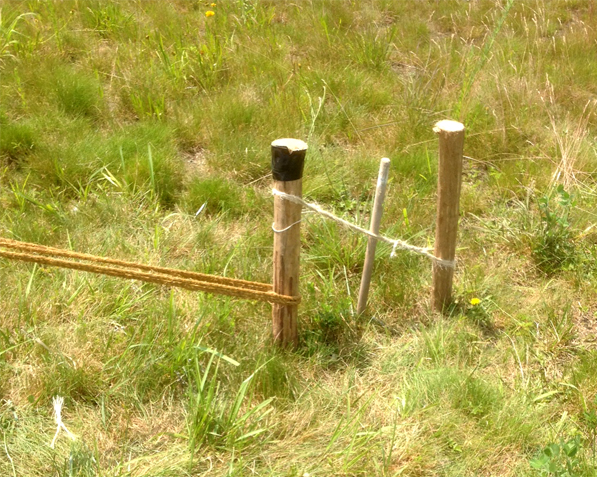

    1-1 Anchor

    When the flagpole is rigged and everything is in place, two or more Scouts lift up the pole in the center of the triangle, and hold it erect.

  2. One Scout mans each lifting guyline tied to the bottom of the pole. On signal, they all pull these lifting lines until the strain assumed by the Scouts holding the pole erect is replaced by the lower, lifting guylines.  (Note: If the pole is taller or heavier, an additional Scout needs to man each guyline attached to the top, in order to stabilize the pole as it’s being held up, keeping it from tilting or falling. However, tension is only applied to offset any overt tilting.)
  3. SkylonTop

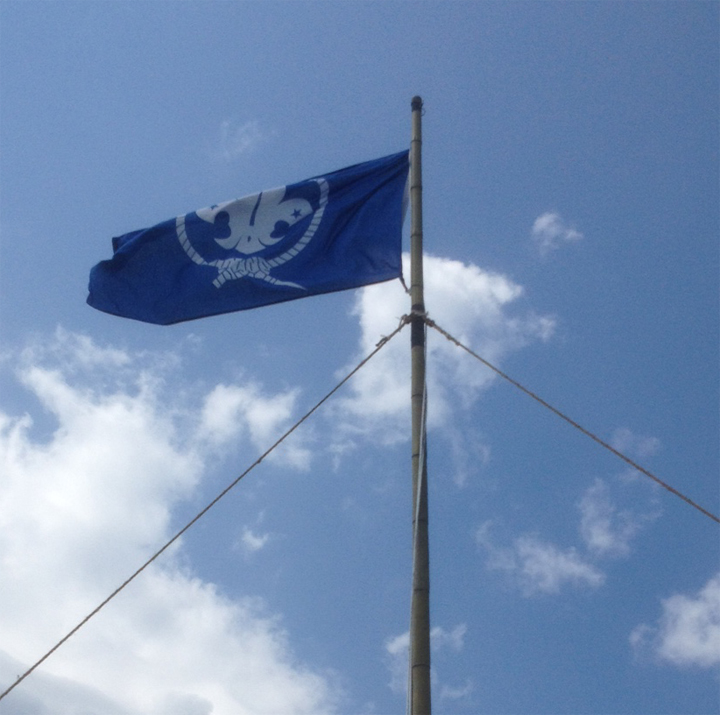

    Top Stabilizing Guylines

    When the lifting guylines have taken up the strain to hold the flagpole at the desired height (about half the length of the upright support poles protruding from their holes), a butterfly knot is applied at the appropriate place and they are secured to the 1-1 anchor with a rope tackle.

  4. When the lower guylines are well secured, the upper, stabilizing guylines can be adjusted so that the flagpole is held up in a straight position. When the flagpole is even, the upper lines in turn are secured to their respective anchors with a rope tackle.

—> An alternate approach can be taken in which the flagpole is first stabilized in an upright position by the three upper guylines. These can then be temporarily secured, readying the flagpole to be raised off the ground. Once standing in a vertical position, upward force is applied to the flagpole by a Scout or Scouts holding on to the bottom and lifting, in conjunction with a simultaneous pulling on the bottom lines and a simultaneous easing off on the top lines.  This lifting process is illustrated HERE.

Author: Scout Pioneering

Volunteer in the Boy Scouts of America

One thought on “Skylon “Floating” Flagpole”

  1. We built this at our last Troop mtg. Using 2″dia x 8ft long Tree Stakes, from Lowes. I decided to use 4, to reduce the load on each stake, and I thought it would look better. I used 4 Rolling Hitches at the Flag Pole bttm and Hockey Tape for friction. I started with and decided against the Masthead Knot, because it wasn’t fitting right. The flagpole was the typical Scout Stave one with the Halyard shown in that post. We used Taught Line Hitches, which worked well for minor adjustments for tilting and raising higher off the ground. I used two separate ground stakes (Orange ones from Lowes, 8 total) for the upper and lower guylines, ‘was intending to turn them into 1-1 anchors, but they were holding well as individual anchors. An additional guy line was needed for some of the tree stakes, as I wasn’t able to get them hammered (using a Fence Post Hammer) as deeply as necessary. Finally, I simply used Carabiners for pulleys with a Rolling Hitch on a Bight to mount them, worked fine, no issues. I recommend one person is the middle holding the flagpole, and one person at each corner making the adjustments to raise it. We had the 4 outer spars about 10-12ft apart, and it seemed like 25-30ft of guy line rope would be fine for all 8 guy lines.

    General Comment: This is a ‘tricky’ setup, but it worked out great, was very cool to look at, ‘was fairly stable, and very much do-able, with a few basic skills. Hopefully our troop will get better at this and set it up for the next district Camporee! Knowing how to tie a proper Rolling Hitch (and with a bight) is critical (which is simply a round turn then into a Clovehitch, the extra round turn needs to on the side of the applied load, up on bottom and down on the tops).

    Good Luck, and Happy Pioneering!
