Brazilian Balance Track


Pioneering projects can be built to serve a practical purpose, as in a bridge connecting two banks of a stream providing a shortcut to the dining hall, or simply for recreation as in a swing boat at a Scout Expo. The most desirable project constructed just for fun is the one that can get a lot of use. The more action it sees, the the more it can be considered a success. The Brazilian Balance Track, so dubbed because it came to our attention in a FaceBook post from the 88º GE / RJ Scout Group Atol das Rocas of Brazil as part of a training given by Chief Jorge Kuma Stotuka, is simply irresistible! Most everyone passing by is going to want to give it a go! For that matter, as revealed in the video, a group of Scouts will literally line up with individual Scouts waiting their turn to get on and see how easy or hard it is to make it from one end to the other.

Racking Turns

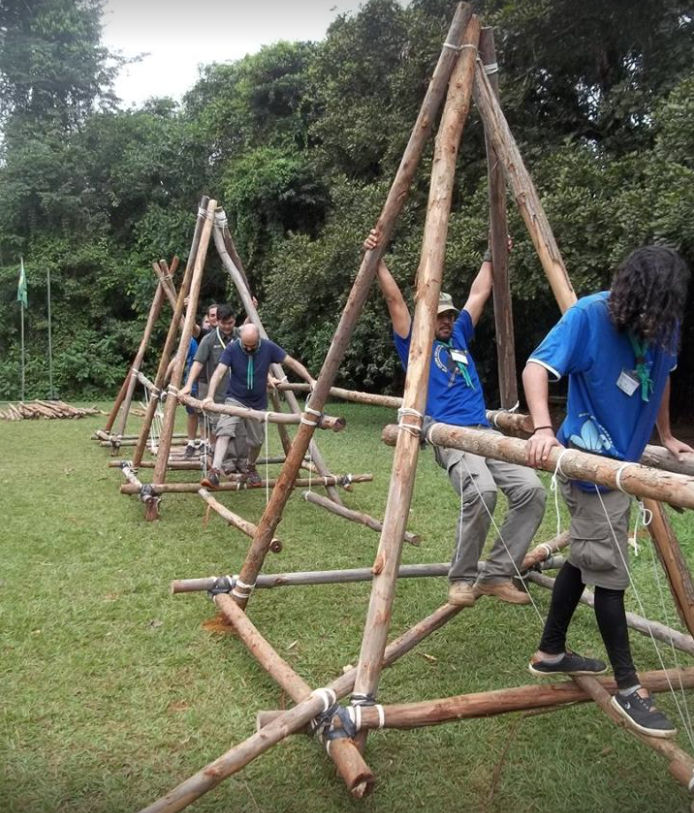

Basically, the track consists of four quadpods connected by three ingenious, little challenges. Three of the quadpods also provide their own less daunting challenge. Variations in construction will be determined by the length of the spars connecting the quadpods, in other words, the degree each challenge is more or less demanding hinges on the distance between the quadpods and subsequently the amount of stepping, swinging, and negotiating required to traverse each section.

Here is the basic layout:

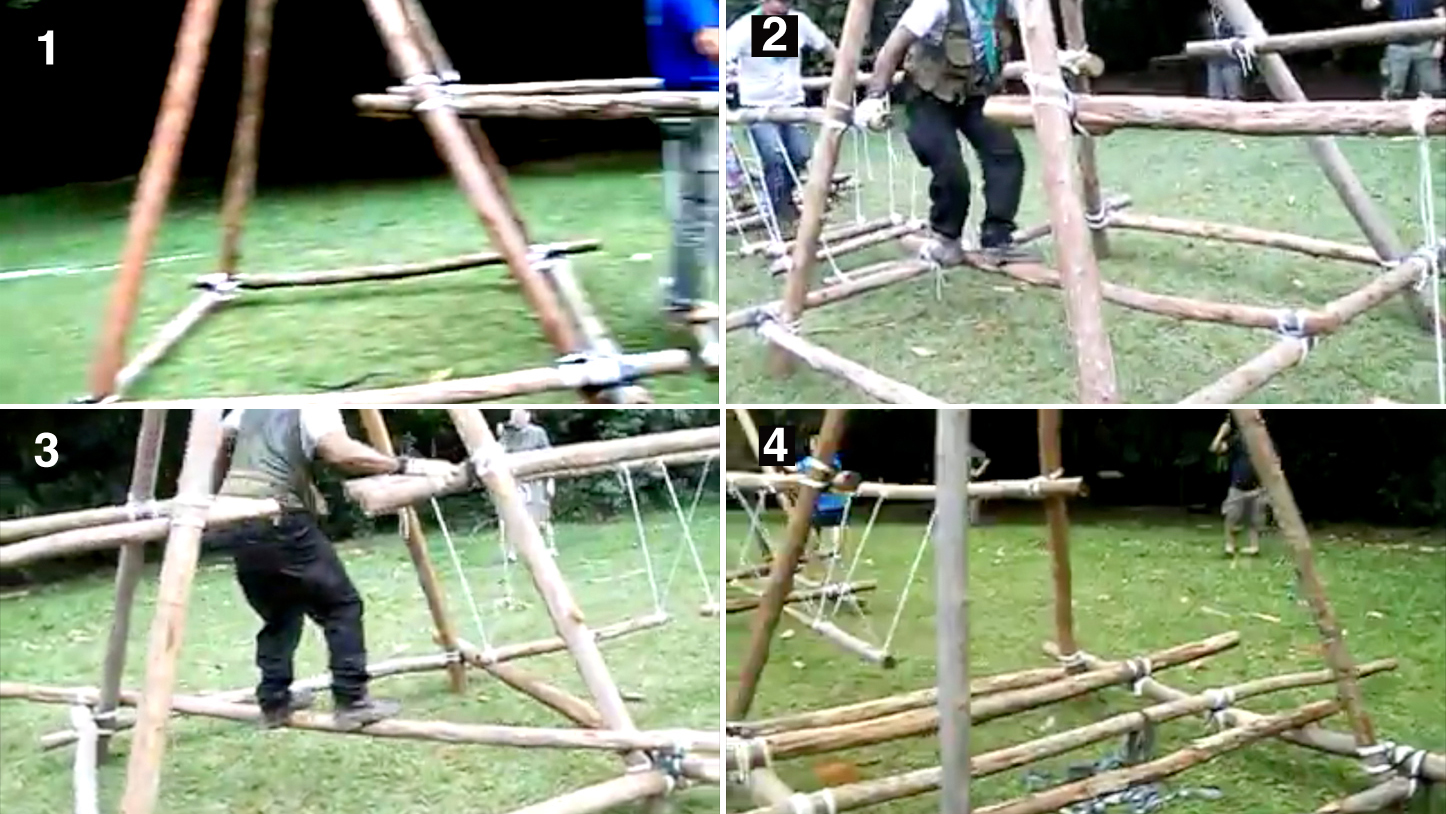

• Four 12-foot quadpods with four 8-foot crossbars about 6-inches from the butts, spaced about 10 feet apart
 • Inside 2nd quadpod: one 8-foot spar lashed to the center of the front and rear crossbars
Inside 3rd quadpod: one 10-foot diagonal pole connecting the side crossbars
Inside 4th quadpod: three evenly-spaced 8-foot spars lashed to the outside crossbars
Between 1st and 2nd quadpod: seven 3-foot ladder rungs, suspended about 1 foot above the ground from two parallel, 12-foot handrails

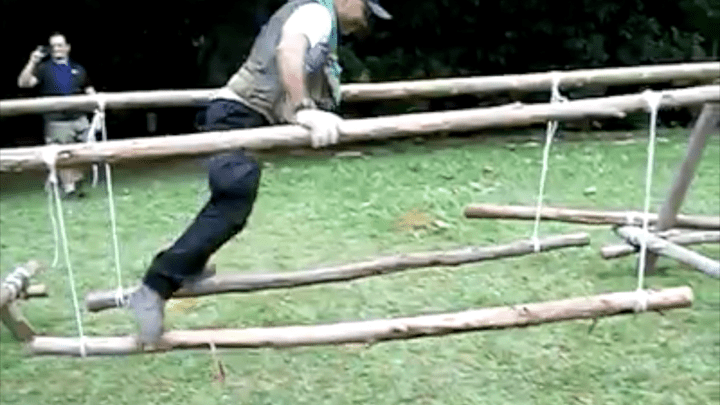

Between 2nd and 3rd quadpod: two 8-foot, lengthwise, swinging poles, one for each foot, suspended in two places about 1 foot above the ground from two 12-foot handrails

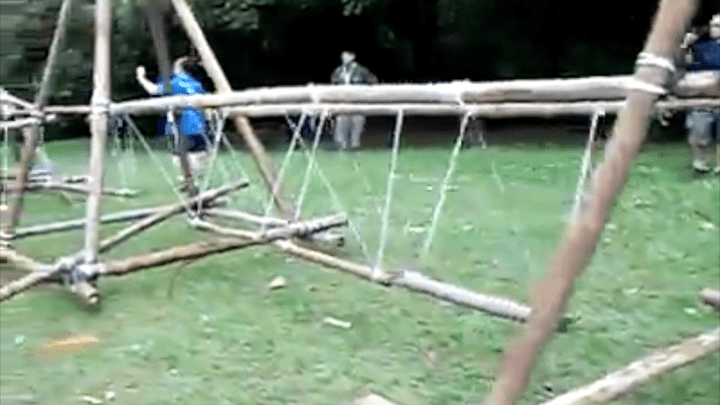

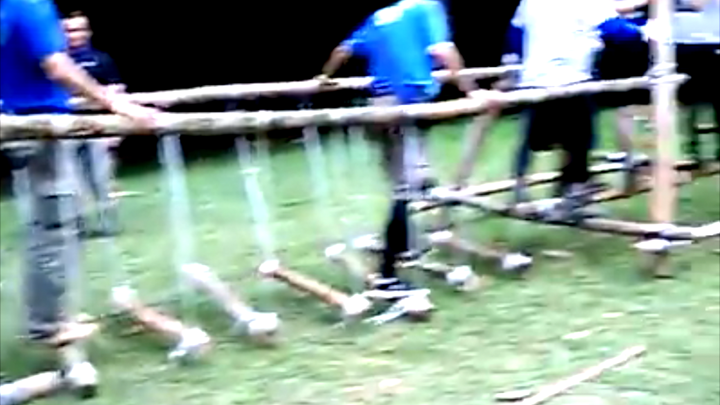

Between 3rd and 4th quadpod: three, swinging, 3-foot rungs, each suspended in four places from two 12-foot handrails and lined up so they’re parallel to the handrails about 1 foot off the ground

4 thoughts on “Brazilian Balance Track”

  1. My name is Jorge Kuma Sototuka
    The balance track was developed to young boys as good challenge with minimal adult support
    This project and many others can be find in a book published in portuguese. Soon the book will be avaiable in english version as digital book
