Single Fire Bucket Holder

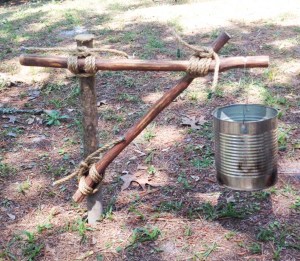

Single Fire Bucket Holder
Single Fire Bucket Holder

One of the essential mandates in the BSA’s Outdoor Code is: BE CAREFUL WITH FIRE.

  • I will prevent wildfire.
  • I will build my fires only where they are appropriate.
  • When I have finished using a fire, I will make sure it is cold out.
  • I will leave a clean fire ring, or remove all evidence of my fire.

In addition to being the height of simplicity, this Single Fire Bucket Holder makes an invaluable contribution towards safety around the fire circle. Since it’s always a safe bet to have a supply of water right near our cooking and campfires, why not add some convenience and accessibility in our campsites, especially because when fire buckets are on the ground, they’re frequently knocked over, inadvertently kicked, and even stepped in!

The design for this easy camp gadget is very straightforward. The diagonal support brace forming a triangle is what makes it work, and without it, the notched stick could never securely support the bucket.

Here are the suggested materials:

Link to: Larger Image

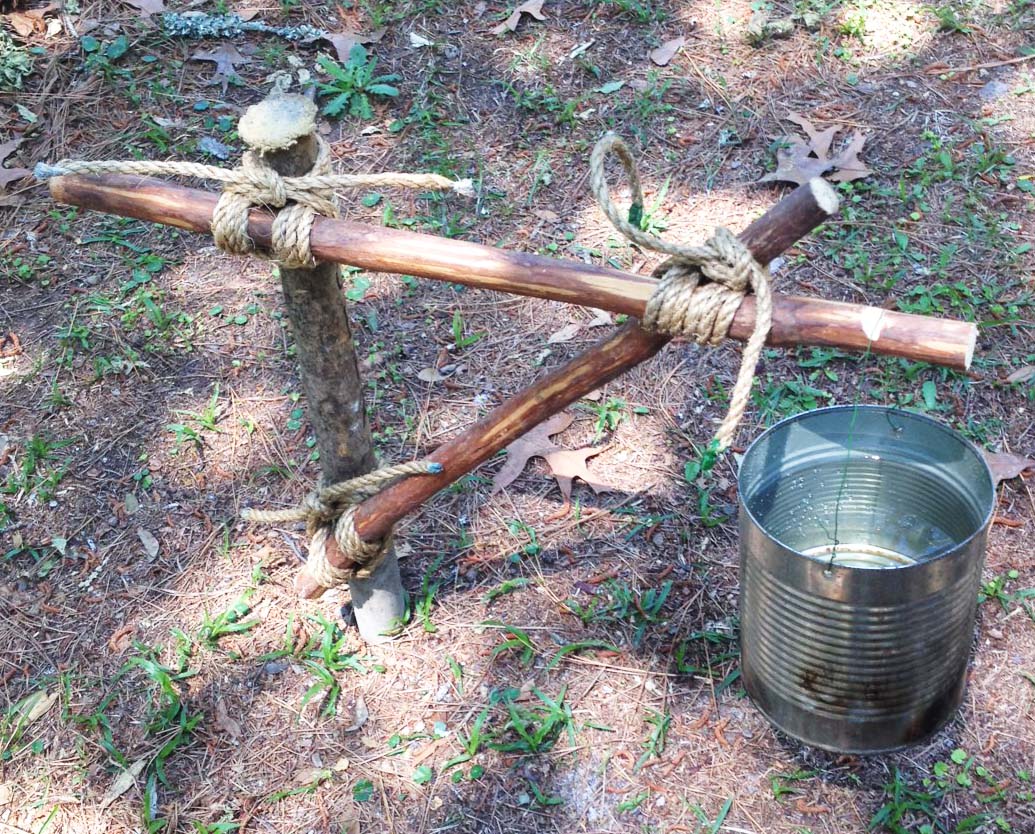

Single Fire Bucket Holder
  • one 3-foot x 2-inches pioneering stake
  • two 2-foot x 1-inches straight sticks (one with a notch at one end)
  • two 10-foot x 1/4-inches lashing ropes
  • one 6-foot x 1/4-inches lashing rope

The procedure is simple.

  1. Where you want the fire bucket, pound in the stake deep enough so it doesn’t shake.
  2. Lash on the notched stick with a tight square lashing extending out from the stake at a right angle.
  3. Near the notch, lash on the support brace at a 90º angle (not too tightly) and then position the stick so it intersects with the pounded in stake in such a way that the notched stick remains extending straight out.
  4. Secure this position with a tight Square Lashing.

Double Fire Bucket Holder





Hand Wash Station

This Wash Station is a Great First Class Camp Gadget!
Washing up before lunch.

This wash station is the ideal First Class Camp Gadget! It’s sturdy, portable, and very useful when camping away from washroom facilities. Inherent in its design is a sound approach to a variety of pioneering concepts and skills. When this project’s built with all the lashings tight and all the legs, cross bar, and support pieces properly positioned, it’s a fine example of a well-engineered, highly functional camp gadget. Each of the three legs making up the tripod gets a lashed on support piece, and the wash station’s stability stems from the fact the design contains three triangles.

Scouts sharing the work to lash together a wash station.
Getting it done!

To start, you’ll need six good, straight sticks as follows:

  • two 2-foot x 3/4 to 1-inch for the leg braces
  • two 4-foot x 3/4 to 1-inch for the back leg and crossbar
  • two 5-foot x 3/4 to 1-inch for the front legs

For the lashings, you’ll need:

  • one 10-foot x 1/4-inch manila rope for the tripod lashing
  • six 6-foot x 1/4-inch manila ropes for the square lashings

NOTE: This and several types of camp gadgets can be happily lashed together simply using binder twine!

You’ll also need

  • bar of soap in a sock with a 3-foot cord
  • small to medium-sized towel with a 3-foot cord
  • No. 10 can with a bail or 4-quart cooking pot with a bail.

Here’s the assembly procedure:

The design for making a wash station.
Position of the sticks.

Make the tripod. Using the 10-foot rope, lash the two 5-foot sticks and one 4-foot stick together with a tight tripod lashing. The 4-foot stick should be in the middle. Make sure the “butt” ends of all three these sticks are even. Separate the legs and set the tripod up. The success of this project relies on a well-tied, tight tripod lashing.

Lash on the braces. Using four tight square lashings, with the 6-foot ropes lash one end of the 2-foot sticks to the 5-foot legs and the other end of the 2-foot sticks to the four-foot leg.

Lash on the crossbar. Using two more square lashings, tightly lash the other 4-foot stick to the top extended sections of the two 5-foot sticks to make a cross bar for the towel and soap-in-a-sock.

Add the soap, water, and towel. Tie the end of one 3-foot cord to the soap-in-a-sock and the end of the other 3-foot cord to the towel, and hang them on either side of the 4-foot crossbar.

Washing his hands before breakfast on a cold, winter camping trip.

Hang the can filled with water to the end of the 4-foot stick extending from the front of the tripod.

During the camping trip, change the water as necessary. See that the soap-in-a-sock is not left in the can after use as it will melt.

One of the beauties of using metal containers is that in cold weather, the can of water can be heated in the fire.
