Pioneering Program Curriculum VI: Tripod Lashing

This is the sixth post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEO: How to Tie a Tripod Lashing

VI. The tripod is the most simple and most easy to erect self-standing pioneering structure. It frequently comes into play in the construction of simple campsite improvements as in providing a stand to hang a lantern or water bag, and in our favorite First Class Camp Gadget: the Wash Station. In larger projects, two tripods can support a crossbar as in a swing set, or support two parallel lateral spars for a platform as in the Double Tripod Chippewa Kitchen.

The Tripod Lashing with Plain Turns is a simple and quick way to lash together three spars into a tripod. For many projects, the wraps can be made with simple plain turns in lieu of racking turns, (as in what’s often referred to as the Figure of Eight Lashing). Here’s an illustration from the 1967 printing of the Boy Scout Field Book.

TripodColumn1 — As Gerald Finley says: “THE STIFFNESS OF THE TRIPOD LASHING DEPENDS ON THE NUMBER AND TIGHTNESS OF THE WRAPPING TURNS.”

TripodColumn2 — Two Half Hitches = a Clove Hitch!

OBJECTIVES

A. Scouts will demonstrate they can tie a tripod lashing by:

laying the poles parallel to one another with the butt ends even
starting off the lashing with a clove hitch around one outside pole about 6 inches from the tips
wrapping the lashing rope six to eight times around all three poles (How stiff the tripod legs will be when they’re separated depends on the number and tightness of these wrapping turns.)
taking two frapping turns between the middle pole and the one with the clove hitch
taking two additional frapping turns between the middle pole and the other outside pole *
completing the lashing by applying two half hitches (clove hitch) around the opposite outside pole

B. Scouts will demonstrate they can erect their tripod by:

crossing the outside legs under the middle pole
standing up their tripod by forming an equilateral triangle with the butt ends of the poles

C. Scouts will stabilize their tripod by:

lashing a horizontal brace between between each of the tripod’s legs with two square lashings

MATERIALS

three Scout Staves for each Scout
one 12-1/2-foot x 1/4-inch manila lashing rope for each Scout
six 6-foot x 1/4-inch manila lashing ropes for each Scout
three 3-foot x 1-inch straight sticks for each Scout
one Pot or No.10 can with a bail for each Scout
one 3-foot cord for each Scout

PROCEDURE A

1) The instructor demonstrates how to tie a tripod lashing narrating each step as he proceeds.

2) With the assistance of the instructor(s), using three Scout Staves and a 12-1/2-foot lashing rope, each Scout lashes the staves together as per the demonstration.

PROCEDURE B

1) Once their lashing is adequately completed, each Scout crosses the two outside legs underneath the middle leg to stand up his tripod.

Horizontal Braces — Building a Chippewa Kitchen: horizontal braces are lashed between the tripod’s legs.

2) Once their tripod is erect, each Scout connects the tripod legs with three 3-foot sticks with square lashings, using six 6-foot lashing ropes.

3) When their legs of their tripod are stabilized with with the three cross braces, each Scout suspends a pot or No. 10 can filled half way up with water, by hanging it on the tripod with a 3-foot cord attached to the bail.

* A Note About Frapping: When finishing the wraps, if the running end is carried between the end and middle pole without completing a full wrap around all three poles, the rope will be carried over the middle pole to start the second set of fraps (as pictured above).

If a full wrap is completed around all three poles, after the frapping turns are made, the rope will be carried under the middle pole to start the second set of fraps. In either case, the first and second set of frapping turns proceed in opposite directions! (This note applies to Tripod Lashings with both plain turns and racking turns.)

INTERPATROL COMPETITION: Everyone on the Tripod

PIONEERING CURRICULUM: MAIN PAGE

Pioneering Program Curriculum V: Shear Lashing

This is the fifth post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEO: How to Tie a Shear Lashing

V. With the square lashing under their belts, Scouts can start to actually build pioneering projects. Though the basic and oft-used A-frame can be readily completed using three square lashings, the shear lashing is most frequently chosen to start lashing together this common support structure.

OBJECTIVES

A. Scouts will demonstrate they can tie a shear lashing by:

starting off the lashing with a clove hitch around one pole
wrapping the lashing rope eight to ten times around both poles
taking two frapping turns between the poles around the wraps
completing the lashing by applying two half hitches around the opposite pole (clove hitch)

B. Scouts will demonstrate they can construct an A-frame by:

connecting the tips of two poles with a shear lashing
spreading the poles apart to form an inverted ‘V’
lashing a pole to the butt ends of the ‘V’ with square lashings

MATERIALS

Three Scout Staves for each Scout
One 10-foot x 1/4-inch manila lashing rope for each Scout
Two 6-foot x 1/4-inch manila lashing ropes for each Scout

PROCEDURE A

1) The instructor shares the purpose and application of the shear lashing, explaining how we use it when we want to connect two spars and open them out to form the legs of an A-frame.

2) Scouts gather around the instructor who, using two Scout Staves and a 10-foot lashing rope, demonstrates lashing the ends of the staves together with a shear lashing, narrating each step as he does.

Two Scout Staves joined at the end with a Two-Stave Shear Lashing — Two Spread Scout Staves Joined at the Top with a Two-Spar Shear Lashing

3) With the assistance of the instructor(s), using two Scout Staves and a 10-foot lashing rope, each Scout proceeds to to tie a shear lashing applying the following steps:

The two staves are placed parallel to one another either on the ground, resting on a log, or leaning against a wall.
A clove hitch is tied to one of the staves at around 6 inches from the end. (Depending on the structure being lashed together, the placement of the clove hitch can vary from 6 inches to 18 inches or more, from the end of the spar.)
A 4 to 6-inch tail is left in the short running end, which is wrapped around the standing part serving to secure the clove hitch, before proceeding with the wraps.
The long running end is wrapped around both staves eight times, evenly and away from the ends. (The directive is 8 to 10 wraps, and sometimes as little as 5. The greater number of wrapping turns, the stiffer the lash will be.)
After the wraps, both staves can be held upright and spread a bit to make room for two tight frapping turns taken around the wraps and between the staves.
After the fraps, a half hitch is applied to one stave. cinched up close to the fraps and pulled tight. Then another half hitch is applied, cinched up and tightened to form the finishing clove hitch. (Preferably, but not necessarily, the final clove hitch is tied to the opposite pole on the opposite side of the first clove hitch.)
The two legs are spread farther apart to form and inverted ‘V’ and the lashing is evaluated to determine if it is well-formed and tight enough to resist sliding.

PROCEDURE B

1) When their shear lashing is adequately completed, each Scout is given a third Scout Stave and two 6-foot lashing ropes.

2) With square lashings, each Scout joins one end of the third stave to one leg of the inverted ‘V’ and then the other end of the third stave to the other leg of the inverted ‘V.’ (Both ends should be lashed in the same position on each leg, and the square lashings should be tied tightly so they don’t slip.)

3) When all three lashings are well-formed and tight enough, each Scout should pick up the resulting A-frame and give it a shake, testing that it is indeed sturdy.

INTERPATROL COMPETITION: Simple A-Frame Chariot Race

Related Post with Photographed Lashing Procedure: The Somewhat Ambiguous Shear Lashing

PIONEERING CURRICULUM: MAIN PAGE

The Somewhat Ambiguous Shear Lashing

VIEW VIDEO: How to Tie a Shear Lashing

Scouts Lash the Tops of Their Sheer Legs with a Two-Spar Shear Lashing to Begin Their Single A-Frame Bridges — Scouts Lash the Tops of Their Shear Legs with a SHEAR LASHING to Begin Their Single A-Frame Bridge

DEFINITION: ambiguous |amˈbigyoōəs|adjective(of language) open to more than one interpretation; having a double meaning; unclear or inexact

Put the two timbers together and tie a clove hitch near the top of one. Bind timbers together by seven or eight turns. Make turns loose, one beside the other. Make two complete frapping turns around lashing turns between the timbers. Fasten securely with clove hitch around one timber. Open out the timbers. Note: Two shear lashings without frappings and with the clove hitch around both timbers are used to lash two timbers into one long one. — From the 1981 Printing of the Pioneering Merit Badge Pamphlet

One Thing is NOT Ambiguous! The shear lashing’s USE is quite clear. References to the lashing in John Thurman’s Pioneering books, in John Sweet’s Scout Pioneering, and the Lashing section in the Pioneering Merit Badge Pamphlets by Pioneering Legend Adolph Peschke all describe its fundamental use exactly the same way. Putting it neat like John Sweet: Use a sheer lashing “when two spars are to be opened out like scissors to make a pair of sheerlegs,” or right to the point like John Thurman in Pioneering Projects, the sheer lashing is “used for lashing together two parallel spars which will be opened out of the parallel to form sheer legs.”

What are sheer legs? Simply put: sheer legs are two upright spars lashed together at the tips with the butt ends splayed apart to support some kind of weight. Most always, in Scout Pioneering we use sheer legs to form an A-Frame.

Ambiguous? Yes. Let’s start with ambiguous spelling! Most modern references to the lashing spell it s-h-e-a-r. Yet, the much respected and revered John Thurman was emphatic that the correct spelling was s-h-e-e-r!

Terminology. In John Sweet’s book, sheer lashing has two different forms each with the same name. When two spars are lashed together for strength, or lap-jointed to extend their length a sheer lashing is used BUT with the clove hitches tied around both spars and without any frapping turns. He still calls it a sheer lashing, but of course this is commonly known as a round lashing! John Thurman refers to a true round lashing as the Sheer Lashing Mark II and the lashing used to make sheer legs as the Sheer Lashing Mark I.

Let’s take this opportunity to further clarify two lashing designations that keep popping up. A SHEAR Lashing is used to make shear legs. A ROUND Lashing is used to attach one pole to another in the same direction as in extending the overall length of shorter poles. (It can also be used to bind more than one pole together to make a stronger pole.) SHEAR Lashings incorporate frapping turns. ROUND Lashings do not! Along these lines, the West Country Shear Lashing should be called the West Country Round Lashing, and rightfully so!

Nowhere is this stated more clearly than in Gerald Finley’s book, Rope Works: “West Country Round Lashing is also called West Country Shear Lashing, but this name contributes to the confusion caused by lumping shear and round lashings together. West Country Round Lashing is used to form a rigid joint between two parallel poles; it does not form the flexible joint of a shear lashing and it has no frapping turns.”

Two-Spar Shear Lashing. To add to the possible confusion, Adolph Peschke calls what John Thurman refers to as the Sheer Lashing Mark I (which is in actuality THE shear lashing) the Two-Spar Shear Lashing. This name can also be related to the tying of a Tripod Lashing With Plain Turns, wherein the procedure is exactly like the Two-Spar Shear Lashing but with three spars. It follows that it’s easy to dub this tried and true form of tripod lashing (just like the Two-Spar Shear Lashing) the THREE-Spar Shear Lashing. The Two-Spar Shear Lashing is used to make an A-Frame, and the Three- Spar Shear Lashing is used to make a simple tripod.

Ambiguity in Tying the Lashing. Though the formation is the same: clove hitch around one spar, six to eight wraps, two fraps, finish with clove hitch around one spar, there are varied approaches to actually tying the shear lashing. These discrepancies all hinge on… the hinge. (Pun intended.) The spars have to pivot in order to spread out the desired distance. How can this be accomplished so the lashing is tight but not so tight that when spreading the legs into position, the legs and lashing rope resist the strain to the point that something breaks? The tighter the wraps, and the more wrapping turns you take, the stiffer the lashing will be.

One view is to make the wraps and fraps on the loose side, concluding they’ll tighten when the legs are spread.
Another view is to place a small block of wood between the spars to yield adequate room for the frapping turns.
Another view is to make the wraps moderately tight and then before frapping, spread the legs a bit to allow room for the frapping turns, being careful not to close the spars on the lasher’s fingers!
Finally, another view is to complete the wraps, then spread the legs to the desired width, and then take tight frapping turns.

Whatever works well will also depend on the diameter of the spars, how straight they are, and indeed on the structure itself.

Open out the Timbers. NOTE: Two shear lashings without frappings and with a clove hitch around both timbers are used to lash two timbers into one long one. — The NOTE is a perfect description of what is termed the “Round Lashing!”

Smaller Double Tripod Chippewa Kitchen

Lashing on one of the Front Tripod Braces for a 6’ Double Tripod Chippewa Kitchen and Adding the Platform Support Spars. — A Smaller Double Tripod Chippewa Kitchen for a Single Patrol

Basically, this is a mini version of the full-sized Double Tripod Chippewa Kitchen. Same procedure, just scaled down, and a perfect fit for one patrol. The only things different here are the dimensions:

two 6-foot x 2-1/2 to 3-inch platform support spars
six 6-foot x 2-inch tripod leg spars
four 4-foot x 2-inch rear tripod braces
two 4-foot x 2-1/2 to 3-inch front tripod braces (to support the platform support spars)
fifteen to twenty 3-foot x 2-inch floor spars (depending on the size of the cooking surface required)
sixteen 15-foot x 1/4-inch manila lashing ropes for square lashings (12-1/2′ lashing ropes work well if you have them.)
two 20-foot x 1/4-inch manila lashing ropes for tripod lashings
binder twine for floor lashing
piece(s) of burlap or canvas to cover cooking platform (unless you’re using clay)

It's obvious the patrol is ready to foil cook their lunches before the coals are ready! — It’s obvious the patrol is ready to foil cook their lunches before the coals are ready!

Note: When lashing on the tripod braces, position the two rear ones as low as possible. This way the thicker front one can be lashed on unencumbered, and also placed at the right height. When it comes to adding the two platform support spars you have a choice: lash them both on either the outside or on the inside of the front (outer) tripod legs. In these photos, they’re lashed on the inside.

For complete details, refer to the procedure outlined on the full Chippewa Kitchen post.

Pioneering and the Order of the Arrow

Chicora Chapter Pioneering Crew, Santee Lodge 116, Order of the Arrow

This section is about Pioneering and the Order of the Arrow. The OA is unique to the BSA, but for those readers from other countries, its correlation with Pioneering can apply to all Scouting groups seeking to render cheerful service and promote camping.

It’s been seen time and again, Scouts are impressed by well-built, pioneering structures. Tall gateways, strong bridges, or clever camp gadgets are found to be especially exciting when experienced outdoors during a Scout gathering. The attraction is even more pronounced in those Scouts who would love to have the chance to get involved firsthand in the challenge and fun, but frequently don’t possess the various skills or have the opportunities to build more involved or larger pioneering structures.

A member of Santee Lodge, 116, Order of the Arrow, helps Webelos Scouts cross the monkey bridge his chapter built during a District "Webeloree." — An Arowman helps Webelos Scouts cross the monkey bridge his chapter built during a District “Webeloree.”

So, what’s all this have to do with the Order of the Arrow? First and foremost, Pioneering aside, Scouts who are members of the OA should be seen as exemplifying the Scout Oath and Law in their daily lives. But, as the BSA’s national honor society, a very favorable impact is created when a specially-trained chapter or lodge pioneering crew can demonstrate they know how to accomplish some “bigger” things. They can build them! Then, as a celebration of Scouting, they can help others to enjoy what they’ve built! It’s a worthwhile opportunity to cheerfully serve their fellow Scouts, promote camping, and also contribute to the overall value of a district or council event. The resulting impact definitely serves to impress their fellow Scouts who will naturally hold the Order of the Arrow in an even higher regard.

Poles for Pioneering – What is a Spar?

Wooden poles are the main ingredient in building a pioneering structure. Everyone knows what a pole is. Depending on the project at hand, we use them in all different lengths and diameters. But, what are all these references to spars? Is a spar different than a pole?

What is a spar? Simply stated, in pioneering, a spar is a thick, strong pole. Obviously, when completed, a pioneering project has to be able to withstand the strain and stress that will occur while performing its intended function. We can’t build a structure out of spindly sticks tied together with string and expect it to work. We use spars lashed together with good, natural fiber rope!

Bamboo Pole, Pine Spar, Scout Stave, Stick — Poles, Staves, Sticks, and Spars

Okay. So a spar is a thick, strong pole. Now there are a lot of givens, but we’ll go through them anyway, and quickly:

The best spars for pioneering are straight with a minimum of taper.
The diameter of a spar is measured at the butt end, not the tip. Depending on what’s being built, butt ends are frequently between two and four inches thick, and under certain circumstances, even thicker.
Spars can be any length, depending on what’s being built. In Scout Pioneering, the most common sizes are six, eight, ten, and twelve feet. (Depending on what’s being built, fourteen, sixteen, and even longer are sometimes called for.)
For pioneering projects, spars should be skinned. (If the bark moves when the project is under strain, lashings can slip, skinned spars last longer and the projects look nicer.)
Spars should be stored out of the weather for future use.

Is a Scout Stave a spar? No. By themselves, they’re too skinny. Scout Staves are great for instruction and small projects, but a 5-foot Scout Stave is a strong stick, not a spar. Many camp gadgets can be built using short, smaller diameter poles, like Scout Staves.

Is a bamboo pole a spar? A bamboo pole is a bamboo pole. Large diameter bamboo is certainly thick, and depending on it’s condition, also strong, however it should be born in mind, bamboo can withstand vertical stress much better than horizontal stress. It’s super for a variety of pioneering uses because it’s wonderfully straight and for its size it’s very light weight. Due to it’s surface being so slick, lashing bamboo poles together presents additional challenges.

RELEVANT LINKS

Pioneering Program Curriculum IV: Square Lashing!

This is the fourth post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEO: How to Tie a Mark II Square Lashing

IV. Simply speaking, Pioneering can be seen as building structures by lashing together spars. In most cases, the lashing that is used is the square lashing. For ease, simplicity and above all efficiency, the square lashing used here is the Mark II Square Lashing.

Click on the Images, and then click on them again for a Larger View.

OBJECTIVES

A. Scouts will demonstrate they can tie a proper Mark II Square Lashing by:
1) positioning their lashing rope so that the crossbar is initially supported
2) completing three neat, tight wraps
3) making the transition from wrapping to frapping
4) completing two tight fraps and finishing with a square knot
B. Scouts will demonstrate they can join two Scout Staves at 90° angles, by using a properly-tied square lashing.

MATERIALS

Crossbar(s) suspended between to uprights or supports, about 3 feet high and long enough so that each Scout can stand in front with enough room to practice
Two Scout Staves for each Scout
One 10-foot x 1/4-inch manila lashing rope for each Scout
One 6-foot x 1/4-onch manila lashing rope for each Scout

PROCEDURE A

1) Instructor crouches down or sits in a chair in front of a crossbar. A Scout Stave is leaning against the bar on the other side. Scouts are gathered behind and to the sides of the instructor, so they can watch his hands as he demonstrates the Mark II Square Lashing while narrating:

First thing is to halve the rope.
Place the middle of the rope behind the vertical spar and under the horizontal (crossing) spar.
Start the wraps by working both ends at the same time bringing them up in front of and over the horizontal spar and then crossing behind the vertical spar.
Start the second wrap by carrying both ends to the front, bringing them down over the horizontal spar and down behind the vertical spar. Cross them underneath.
Just like the first wrap, bring the ends up in front of and up over the horizontal spar and then cross them a final time behind the vertical spar. You now have three wraps. Carry both ends to the front on top of the crossing spar.
To begin the fraps, cross the ends over the top of the wraps.
Pull the rope tightly, around the wraps between the spars, and after two fraps, finish with a square knot.

Note: An Instructor monitors each of the following steps:

SImple Lashing Pole. Note that the vertical spars are behind the crossing spar. — Simple Lashing Pole. Notice the vertical spars are behind the crossing spar.

2) Using a Scout Stave and a 10-foot lashing rope, each Scout takes a position in front of the crossbar, which will serve as the horizontal (crossing) spar. They place their Scout Stave behind the crossbar.

3) Scouts halve their rope and place it behind their Scout Stave with an end on either side and under the horizontal spar.

4) Scouts start theirs wraps, keeping them neat, even, and flush to one another.

5) After three wraps, Scouts bring the ends of the rope to the front and cross them to begin their wraps.

6) Pulling their two fraps tightly, Scouts finish their lashing with a square knot.

PROCEDURE B

1) Each Scout is given two Scout Staves and a 6-foot lashing rope and instructed to lash the poles together in the middle with a neat, tight square lashing.

INTERPATROL COMPETITIONS: Indoor Ladder Race and Free-Standing Flagpole

PIONEERING CURRICULUM: MAIN PAGE

Scout Meeting Challenge: Simple A-Frame Transport Race

Chariot races are fun and here’s about the easiest version around. Once Scouts are familiar with the shear lashing and square lashing, they can make an A-Frame to serve as a simple carrying structure (chariot). The race can be run in a variety of ways:

Th Simple Pick Up and Carry Approach — The Simple Pick Up and Carry Approach

Pick up the chariot and carry it (advisable if the playing field is a well-cared for lawn)
Drag the chariot (works well in wide open fields)
Run relay-style heats on a short course (where space is limited)
Lay out a longer course

Materials for each Patrol

two 8-foot x 4-inch spars for the A-frame legs
one 6-foot x 3-inch spar for the ledger
three 15-20-foot x 1/4-inch manila lashing ropes

Shear Lashings are Applied to the Tips of the Legs

Procedure Patrols discuss their plan of attack. It’s decided who is to tie what lashings, who is to assist, who will ride and who will carry (or drag as conditions dictate).

Link to: Larger Image — A-Frames are Formed

On signal, patrols lash together an A-frame using a shear lashing at the tips of the 8-foot spars and square lashings at the butt ends for the 6-foot ledger. (If desired, three square lashings can be tied.) When the chariot is built, it is raced around a preset course or to a turn around line and back.

2013 Jamboree Pioneering Area Video Pictorials

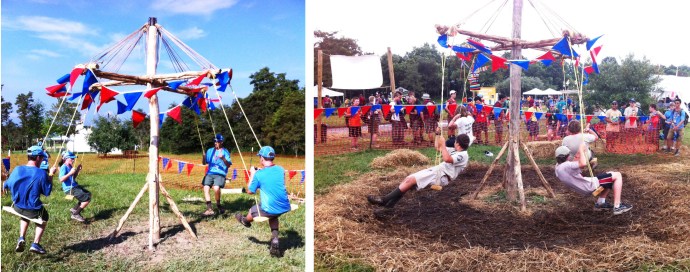

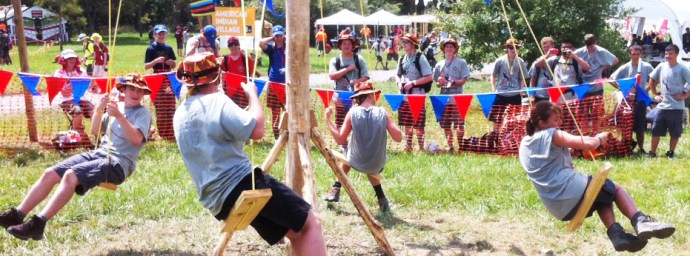

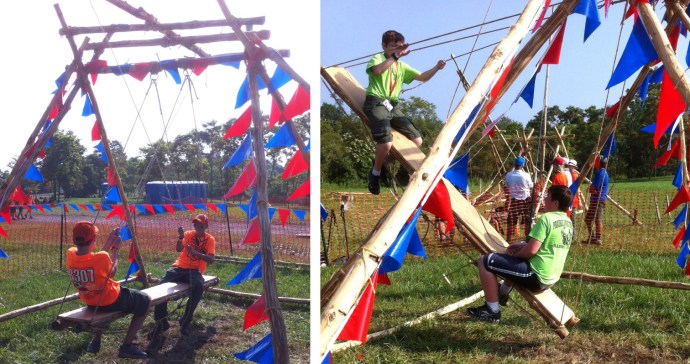

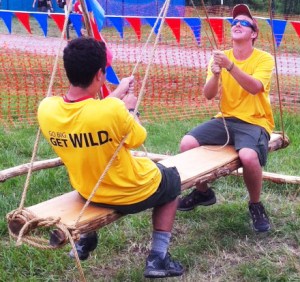

Here are two videos that will reveal something of what went on in the Pioneering Area up on Garden Ground Mountain at the Summit. MUCH better when viewed in Full screen!

Pioneering Program Curriculum III: Square Knot & Roundturn With Two Half Hitches

This is the third post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEOS: How to Always Tie a Square Knot Right / How to Tie a Roundturn With Two Half Hitches

III A. In the BSA, the square knot is commonly referred to as a joining knot and tying it is a requirement to earn the Scout rank. However, the square knot (reef knot) is first and foremost a binding knot. For our purposes, its primary use will be to complete a Mark II Square Lashing.

III B. A roundturn with two half hitches is one of the basic knots that is very reliable for a number of uses in pioneering work. It is easy to tie and untie and does not reduce the strength of the rope due to sharp turns when under a hard pull.

OBJECTIVES

Scouts will show they understand the square knot is used as a binding knot and will demonstrate they can always tie it (instead of a granny knot) by relying solely on the appearance of the first overhand knot. Refer to Foolproof Way to ALWAYS Tie a Square Knot Right.

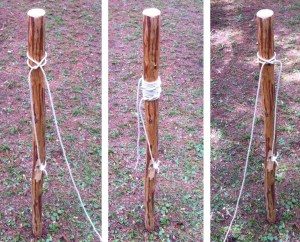

Scouts will demonstrate how a roundturn can be used to temporarily hold the strain on a rope.
Scouts will demonstrate they can tie two half hitches around the standing part of a rope and draw them up tight against a roundturn.

MATERIALS

3-foot length of 3/16 or 1/4-inch braided nylon or polyester cord for each Scout
Length of 1/2-inch nylon or polyester cord and a vertical pole or tree, to serve as a large visual aid
Sturdy horizontal pole, lashed between two trees or anchored uprights about 3-1/2 feet off the ground
One 15-foot x 1/4-inch manila lashing rope for every two Scouts

PROCEDURE A

Standing End on Top, Standing End on Bottom

Utilizing the 1/2-inch cord and vertical pole or tree, the instructor demonstrates how a square knot is used to secure a line or rope directly around an object.
While tying an overhand knot (half knot) around the pole, the instructor explains how it’s always possible to know how to tie the second overhand knot just by looking at the first. This can be illustrated by positioning the two running ends so they are perpendicular to the standing part wrapped around the pole, (see Illustration 1) It’s pointed out that one running end is on the bottom and the other is on the top. When bringing the ends together to tie the second overhand knot, the end on the bottom should stay on the bottom and the end on top should stay on the top, and then the second overhand knot can be tied to form the square knot correctly 100% of the time. This is demonstrated by the instructor!
Using their 3-foot cord, Scouts tie an overhand knot around their thigh, and then position the two ends so they lie at right angles to the part wrapped around their thigh. They then practice carrying the bottom and top ends together to form a square knot.
Scouts bring their 3-foot cords to the horizontal pole(s) and each ties an overhand knot around the pole. When all the overhand knots are in place, they back away and change places with another Scout. The “new” overhand knot is interpreted, and relying only on its appearance, Scouts complete the square knot.

Finishing a Square Knot from an Overhand Knot with the Left Running End on the Bottom and the Right Running End on Top — Finishing a Square Knot By Relying Solely on the Appearance of the First Overhand Knot

5. Alternating the position of the running ends of overhand knots tied around the horizontal pole, races are run between individuals to determine that the ability to rely only on the appearance of the initial overhand knot has been mastered. Reviews are conducted as necessary.

Finishing a Square Knot from an Overhand Knot with the Left Running End on Top and the Right Running End on the Bottom — Finishing a Square Knot By Relying Solely on the Appearance of the First Overhand Knot

PROCEDURE B

1. The instructor wraps the 1/2-inch cord around the horizontal pole forming a roundturn. He explains that a roundturn goes around the pole twice, and when maintaining a grip on the running end, a good deal of stress can be held because of the friction around the pole created by the roundturn.

Holding the strain on the standing part in the left hand, and with the running end, starting a roundturn around the pole, continuing to hold the strain on the standing part while forming a complete roundturn around the pole, and letting go of the standing part continuing to hold the strain with only the running end. — Applying a Roundturn to a Horizontal Pole

2. The instructor ties a half hitch around the standing part of the rope and cinches it up to the roundturn on the pole.
3. The instructor ties a second half hitch around the standing part and cinches that up to the first. He explains that these two half hitches have formed a clove hitch around the standing part and the knot is often called two half hitches. He further explains that when two half hitches are tied like this after a roundturn, the knot is called a roundturn with two half hitches and, as will be seen later, is often used on guylines and anchor points when building a pioneering structure.

Tying the first half hitch around the standing part, cinching the first half hitch up to the roundturn and tying the second half hitch around the standing part, you get a completed roundturn with two half hitches. — Adding Two Half Hitches to the Roundturn

4. The class is divided into twos. The first Scout holds the end of the 15-foot rope and stands about 12 feet away from the horizontal pole. The second Scout goes to the pole and with the other end of the rope applies a roundturn, while the first gives the rope some tension with a slight, steady pull. When the roundturn is completed, the second Scout lets go of the standing part and with one hand grabbing the running end, he holds the strain still applied by the first Scout. He then adds two half hitches. When the roundturn with two half hitches is tied, the second Scout lets go of the rope entirely. The two Scouts switch so that everyone in the class can demonstrate they are comfortable tying the knot.

INTERPATROL ACTIVITY: Flagpole Race

PIONEERING CURRICULUM: MAIN PAGE

Pioneering Program Curriculum II: Half Hitches and Round Lashing

This is the second post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEOS: How to Tie and Apply Half Hitches and the Clove Hitch / How to Tie a Round Lashing

Two Half Hitches Over the Top of a Pole Forming a Clove Hitch

II. In Pioneering, half hitches are everywhere! Two of them next to each other is a clove hitch, and that’s something we use time and time again. As John Thurman declares, “If only we can get Scouts to learn that if you make one half hitch and another half hitch and bring them together they make a clove hitch, what a lot of time the Movement would save in the amount of fiddling and fumbling that goes on when a clove hitch is the order of the day.”

OBJECTIVES

Scouts will demonstrate they can tie half hitches around a horizontal pole, proceeding from both the right and the left.
Scouts will demonstrate they can tie a round lashing by starting and ending the lashing with two half hitches.
Scouts will lash together two staves to make a longer pole by using two properly positioned round lashings.

Horizontal Hitching Post Lashed Between Two 6' Uprights — Horizontal Hitching Post Lashed Between Two 6′ Uprights

MATERIALS

Suspended horizontal hitching post or similar setup, to accommodate the entire class
Two or more 5-foot Scout Staves for every Scout (the more the better)
Four 6 to 10-foot x 1/4-inch manila lashing ropes for every Scout (the more the better)
6-foot x 1-1/2-inch diameter spar set up as a crossbar with a 6-foot length of 1/2-inch nylon or polyester cord, attached in the middle, to serve as a large visual aid

PROCEDURE A

Starting at the center of the 6-foot spar, the instructor slowly ties a half hitch for all to see, proceeding from the left and initially carrying the running end over the top of the spar.
The half hitch is untied and slowly tied again for all to see. This is repeated as necessary while, in like manner, the class ties their own half hitch around the horizontal hitching post.
When each Scout can tie the half hitch, the instructor slowly demonstrates the tying of two half hitches in succession. (No mention needs to be made that this is a clove hitch.)
When all Scouts can accomplish this, three and four half hitches are tied in succession. Scouts give it a go.
Starting again at the center, steps 1-4 are repeated on the other side, this time proceeding from the right and initially carrying the running end over the top of the spar.

Tying a simple half hitch around a horizontal pole, proceeding from the left and moving to the right: When proceeding from the left, the running end can be carried over the top of the spar, brought down behind the standing part, and then simply carried over the standing part. Dress the half hitch by pulling the standing part to the left and the running end to the right. For a second half hitch, simply repeat the process. Two Half Hitches (Clove Hitch) Three Half Hitches Four Half Hitches. — Click on the Images for LARGER Views!

Two Round Lashings Joining Together Two Scout Staves

PROCEDURE B

Using two Scout Staves and a lashing rope, the instructor demonstrates how, by holding in one hand the two staves and the long end of the rope as the standing part, he can tie two half hitches around both staves working with the running end. This forms a clove hitch which will start off the round lashing. It will be easy to see that since the long end of the rope will be used for the wrappings, to start the lashing, the half hitches will be applied moving towards the nearest end of one of the staves.
Scouts apply the technique, tying the clove hitch around two staves in the manner shown.
The instructor demonstrates wrapping the longer end tightly and neatly around both staves, leaving enough rope to finish the lashing with two half hitches.
Scouts practice lashing two staves together with two round lashings. The space where the two poles are joined, gets two tight round lashings—one on either side of the overlap and right near the ends of each pole. (See photo to the left.)
Scouts combine into one group and, using all the materials on hand, join all the staves tightly together into one very long pole, with round lashings.

INTERPATROL ACTIVITY: Catch the Snapper

PIONEERING CURRICULUM: MAIN PAGE

Scout Meeting Challenge: Atomic Pile

The Atomic Pile provides an excellent opportunity for team building while also effectively honing individual leadership skills. Additionally, it can provide an opportunity to test what can be termed “group leadership,” which will manifest to a greater or lesser degree the ability of a group to lead itself when there is no one assigned the leadership role.

The following Atomic Pile structure is only one simple version, designed for short-term use. It works very well during a troop meeting. When featured for extended use, like at a camporee or public gathering, a more solidly-built construction is in order.

The log is steadied on top of a corner mark. — The log is steadied on top of a corner square.

Suggested Materials

four 8 to 10-foot x 2-inch poles for corner uprights
twelve 4-inch diameter wooden discs -or- 4-inch squares of lumber, four of them painted with the numeral “5,” four with “10,” and four with “20”
one 4-inch diameter log, 15 inches long with a large eye hook on one side and a flat, even surface on the other
four small single pulleys
four 40-foot lengths of 1/4-inch braided nylon cord for the pulleys
four 25-foot lengths of 1/4-inch braided nylon cord for the boundary lines and guylines
four 3-foot lengths of 1/8-inch nylon cord to attach pulleys to the corner uprights
four 30-inch pioneering stakes to stabilize the corner uprights
eight 10-15-foot x 1/4-inch manila lashing ropes for connecting the pioneering stakes to the uprights
four smaller stakes for the guylines, to help steady the corner uprights

The pulleys are attached to the corner uprights with a prusik. A heavy eyebolt is screwed into the log. The ends of the 50' cords are tied to the eye hook with a roundturn and two half hitches. The numbered blocks are positioned inside the 10' x 10' square. — Atomic Drop Components

BUILDING THE STRUCTURE

Putting up an Atomic Pile activity is well within the capability of most patrols, and by dividing the tasks, can be completed in under 30 minutes. However, building the Atomic Pile is not as key to team building and leadership development as is actually using the structure.

How will the corner uprights stay erect? It will be impractical to keep the corner uprights in a rigid vertical position with three guylines like a flagpole. So, you’ve got three choices to hold them up:

Use a post hole digger to sink the uprights into the ground deep enough to firmly support them.
Drive in a pioneering stake and then lash the upright to the stake to hold it up.
Do both 1 and 2 (often recommended).

Raise the corner uprights. In the flat place the Atomic Pile will be situated, lay the 10-foot poles out in a 10′ x 10′ square. Just outside the 90° angle formed by the poles, either dig a hole deep enough to support the first upright, or firmly drive in a pioneering stake straight into the ground.

Knots at Corner Upright — Boundary Cords / GuyLines

Before standing up the pole, using a 3-foot cord, attach a pulley about an inch from the tip with a prusik. Wrap the cord as many times as needed so the pulley hangs down a couple of inches. Using a 40-foot cord, reeve one end through the pulley and then tie that end to the eye hook of the 4-inch-diameter log with a roundturn with two half hitches. Place the log in the center of the square.

When you’re ready, place the butt end of the pole into the hole and tamp it down firmly, or lash the butt end tightly to the pioneering stake with two round lashings. Of course, depending on how rigid the pole is standing, as needed, do both.

Repeat the process for the three other corner uprights.

Tie on the boundary lines. About 4 feet up from the ground, with a clove hitch, tie one end of a 25-foot cord to a corner upright. Walk the cord to the next pole in the square and with a rolling hitch, tie it on so the cord is parallel to the ground, keeping the line taut. The running end of the cord should extend out about 15 feet from where the rolling hitch was tied. This will serve as a guyline for that corner pole.

Repeat the process with the other three 25-foot cords, starting with a clove hitch tied right next to the rolling hitch.

Secure the guylines. Firmly hammer in a smaller stake 45° out from each corner upright, about 8 feet away. Attach the length of cord extending from the rolling hitch to the stake with a taut-line hitch. Pull it tight. This will add a little extra support.

The only thing left to do is position the 4 inch discs or blocks inside the 10′ x 10′ square. The four 20s can be placed near the corners, the 5s can be placed near the center, and the 10s between the center and the corners.

Scouts face away from the “Atomic Pile” and rely on the leader’s directives.

Challenges. An Atomic Pile presents a variety of alternatives in the way of activities, and even spectators are afforded their own form of entertainment observing the progress and prowess of those at the pulley ropes. This is especially pronounced when patrol teams compete against one another.

Within a preset time limit, using a heads on approach, groups of four can be challenged to balance the log for five seconds on as many discs (or blocks) as they can. This simple challenge can be self-led, that is, without a fifth Scout issuing commands, or can be conducted with an assigned leader who does not handle a pulley rope.
Instead of the quantity of discs, scores can be achieved in accordance with the point value painted on each disc.
Scouts man each pulley rope, but instead of facing the square, each must turn their back to the discs. Naturally, in order to maneuver the log from this position, they must rely on an assigned leader to direct their actions.

Incorporating the Atomic Pile into the meeting.

The Atomic Pile can be utilized by groups of Scouts during the gathering period preceding the opening ceremony.
During the meeting, individual patrols can be assigned a period where they engage in the activity by themselves, either to hone their leadership skills or practice for an interpatrol competition.
As an interpatrol activity, patrols can enter their teams to compete against one another in any of the challenges listed above.

SCOUT MEETING CHALLENGES MAIN PAGE

Pioneering Program Curriculum I: Knot-Tying Terms and Open-Ended Half Hitches

This is the first post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

I. There are numerous terms pertaining to knots and working with rope, but the four presented here, along with some simple “moves” requiring a minimum amount of dexterity, will be useful when learning and applying some of the basics that follow.

OBJECTIVES

Through hands on experience, Scouts will become familiar with and demonstrate the following knot-tying terminology: running end, standing part, overhand loop, underhand loop.
Using the materials provided, Scouts will also demonstrate they can tie Half Hitches over an open-ended pole.

MATERIALS

Suspended horizontal hitching post or similar setup, to accommodate the entire class
Enough vertical hitching posts (or uprights with a 15-foot attached length of 3/16 or 1/4-inch nylon cord) so there is at least one for every two Scouts
6-foot x 1-1/2-inch diameter spar set up as a crossbar with a 6-foot length of 1/2 inch nylon or polyester cord, attached in the middle, to serve as a large visual aid

PROCEDURE A

With each Scout standing in front of a dangling cord, using the 1/2-inch cord as an illustration, the instructor explains where the running end, and standing part are. Scouts are given an opportunity to point to the corresponding part on their respective cords.
The instructor explains what an overhand loop is, illustrating the “right-hand-twist.” Scouts review the maneuver and form the loop with their respective cords.
The instructor explains what an underhand loop is and illustrates the “left-hand-grab.” Scouts review the maneuver and form the loop with their respective cords.
The instructor calls out each of the above terms in mixed orders and Scouts, race to point to the correct part of the cord, or form the loops in response.

The Right-Hand-Twist to Form a Right Overhand Loop and the Left-Hand-Grab to Form a Right Underhand Loop

A Hitching Post with a Series of Half Hitches — Half Hitches

PROCEDURE B

With Scouts gathering around a vertical hitching post, the instructor demonstrates how, by making an underhand loop, a half hitch can be placed around an open-ended pole. He then demonstrates that many half hitches can be placed around the pole, one on top of the other.
Pairs of Scouts, each at a vertical hitching post, try to lay half hitches over the top of the pole. Scouts coach one another and further instruction is provided as needed.
Races are conducted to see how many half hitches can be laid over a pole in 20 seconds.

VIEW VIDEO: Hitching Race

PIONEERING CURRICULUM: MAIN PAGE

The Swing Boat at the Jamboree

Situated adjacent to the catapults, like a giant, rope-propelled see-saw, the swing boat up on Garden Ground Mountain repeatedly attracted Scouts and Venturers. The pull rope on each side allowed the riders to raise one another up and back as high as they wanted, and by rhythmically pulling on and releasing the rope, they could control their height and speed, back and forth.

PIONEERING AREA: ACTIVITY STATIONS & GAMES

JAMBOREE PIONEERING AREA: MAIN PAGE

The Carousel at the Jamboree

Members of a Venture Crew Take a Ride — After their hike up to Garden Ground Mountain, members of a Venture Crew take a ride.

The carousel has been a mainstay for the past several jamborees. It was located at the entrance to Peschke Field just beyond the Indian Village, and was one of the most popular attractions in the pioneering area. Because it was so much fun, there was often a line of Scouts and Venturers waiting their turn to get on board. Notice the transformation of the carousel grounds after days of use and lots of rain. (Click on the photos for full page views.)

Left to Right: One of the FIrst Groups to RIde / One of the Last Groups to Ride

PIONEERING AREA: ACTIVITY STATIONS & GAMES

JAMBOREE PIONEERING AREA: MAIN PAGE
