As presented in Bryan on Scouting:
Tying a square knot might be confusing for Scouts. “Right-over-left” or was it “left-over-right?”
For the next few weeks, we’ll be sharing some camp hacks that the BSA’s national camping subcommittee has shared with us. This week’s tip involves a technique to tying a square knot correctly every time. Special thanks to Larry Green for the tips and text below.
The square knot, also known as the reef knot, is first and foremost a binding knot. Its primary function is to secure a line tightly up against an object as when tying a bandage, a package or the flaps of a wall tent at camp.
When it’s time to tie a square knot, there’s a surefire way to always tie it right, and all you need to do is use your eyes.
- Tie the first half-knot.
- Position the ends so the blue end projects down on one side, and the red end extends up on the other side. It’s as if each end has its own area — like each is in their own “zone.” That’s where they need to stay.
- When the ends are brought together to form the second half-knot, they don’t enter the other “zone” by crossing behind the other end. They just meet in the middle. The knot is finished by carrying either end over and around the other.
- It makes no difference how the first half-knot is tied (over-under or under-over, right-over-left or left-over-right).
- When bringing the ends together to form the second half-knot, keep them in their own “zones.” Don’t cross over into the other end’s area.
- This way, you’ll always tie a square knot, and never a granny knot.
Tying a square knot from this visual perspective comes in handy, because often Scouts will lose track of whether they went over-under or under-over, or right-over-left or left-over-right. Once they get the knack of seeing how each end stays in its own “zone,” this approach is fool-proof.
Watch the video of this technique below.
This short commentary is one part surmise and three parts observation. It’s composed of a series of events with a predictable outcome. Except to those familiar with Scout Pioneering, and Scout competitions, the whole scenario will appear obscure. But to the Scouts involved, it’s far from obscure. On the contrary, whenever something like this happens, it’s downright confusing, and without being melodramatic, maybe a little traumatic too. No real names are used in this account, and no fingers are being pointed at any individuals. The characters in stories like this are always well-intentioned and without malice. There are no wrongdoers involved… just victims.
Scout Pioneering is about building structures with poles and rope. They can be useful, they can be for fun, and often they’re both. Knowing how to tie knots and lashings is a basic Scouting skill that’s been a part of our movement for over a hundred years. In all bonafide Scout Pioneering settings, when two poles cross each other, but do not touch, a Diagonal Lashing is often used to spring the poles together. The lashing is so-named, because the wraps run diagonal to the poles. Additionally, those who are experienced in building pioneering structures accept the fact that joining two poles together that cross from 45º to 90º calls for a Square Lashing. There’s more contact between the rope and the poles than with a Diagonal Lashing, and hence a Square Lashing provides a better hold. The Square Lashing gets its name from the fact the wraps run square to the poles. The name has nothing to do with at what angle the poles cross.
Enter “Ned”: Without knowing any better, Ned, a well-meaning Scouting volunteer, reasons quite innocently the Diagonal Lashing should be used whenever Scouts join two poles that cross each other at less than a perpendicular angle. So from this viewpoint, which, because of its name, appears logical, Ned concludes Scouts should use Diagonal Lashings when making an A-frame. After all, the angles formed by the poles are less than 90º. Without any real, hands on exposure to pioneering, he’s not familiar with the fact the lashing is reserved for springing two poles together when they cross but don’t touch. To him, his assumption about the lashing is obvious. He proceeds to write up a description of a Scouting activity featuring his misunderstanding about the use of Diagonal Lashings. Since he’s an intelligent, well-respected Scouter…somehow, it get’s printed, and then again reprinted, in official BSA publications.
Enter the “Raccoon Patrol”: As part of a troop that regularly embraces large pioneering projects, the Raccoon Patrol is well-versed in building A-frames. During inter-patrol competitions at Scout meetings, they do well in A-frame Chariot Races. On outings they build camp see-saws where the roller bar for the plank is supported by two heavy duty A-frames. They have also helped to build several monkey bridges relying on sturdy A-frames as sub assemblies. Belonging to a unit with a successful pioneering program, they’ve been taught to make their A-frames using three Japanese Mark II Square Lashings. In addition to being supported in certain BSA publications, their grasp of Scouting skills stems from Scouters who’ve served on the pioneering staff at national jamborees and who, themselves, have learned from some of the most esteemed Scout Pioneering legends.
Enter “Nancy”: On staff at summer camp, Nancy volunteers to conduct an A-frame Chariot Race as part of the camp-wide skills event towards the end of the week. Her reference material is one of the BSA publications containing Ned’s well-meaning misconception, directing Scouts to construct an A-frame using Diagonal Lashings. Without any real experience putting together an A-frame, she’s basing her thinking on what she has read. Furthermore, since the content is featured in an official publication, she requires each patrol taking part in the activity to build their A-frame in just that way.
Reenter the “Raccoon Patrol”: Participating in the camp-wide competition, the Raccoons confidentially arrive at Nancy’s station, all revved up to be the fastest patrol in the A-frame Chariot Race. Nancy proceeds to explain her rules for putting together the A-frame, which immediately confuses the Raccoons. In their attempt to comply, they bungle the Diagonal Lashings, something they seldom use. At the top, they ask if they can tie a Square Lashing in lieu of a Shear Lashing, and Nancy acquiesces. But, they are further penalized because Nancy insists that if they’re going to tie a Square Lashing, it must start and end with a Clove Hitch. She has never seen or heard of a Japanese Mark II Square Lashing. It isn’t in the official publication she is using as her reference. At that point, the Raccoon’s performance is so poor, they don’t even bother to race. With disgruntled comments, they leave Nancy’s station. They are hurt and bewildered.
Are these kinds of scenarios rare at Scout skill events? The answer is, no. They take place at Boy Scout summer camps, district and council camporees, and OA conclaves. Scouts have been penalized, disqualified, and even politely insulted by facilitators who base their event’s rules on material that contradicts what some may have adopted from other official publications. This is a sad state of affairs. Scouts become frustrated, angry, and disillusioned—feelings that shouldn’t obtain at a Scouting event.
What about this conflicting information presented in different official publications? Are there ways around the confusion? The answer is, yes. At the time of this writing, a national task force is taking steps to assure the publications all provide compatible information pertaining to Scout skills—approaches that are sensible, practical, and proven to be the most efficient. This is a lengthy process and will take time. Everything that appears in official BSA publications should be exemplary, but change happens slowly. Until Scout skills are presented consistently across the board, the following is felt to be an advisable practice: during inter-troop, district, or council events, in competitions like the A-frame Chariot Race, let the patrols complete the challenge in anyway they can. Don’t permit their efforts to be circumscribed by a rigid set of exacting rules. As long as what they build is safe and gets the job done, the Scouts should be allowed to experience success.
This is the fourth post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.
SUPPORTING VIDEO: How to Tie a Mark II Square Lashing
IV. Simply speaking, Pioneering can be seen as building structures by lashing together spars. In most cases, the lashing that is used is the square lashing. For ease, simplicity and above all efficiency, the square lashing used here is the Mark II Square Lashing.
- A. Scouts will demonstrate they can tie a proper Mark II Square Lashing by:
- 1) positioning their lashing rope so that the crossbar is initially supported
- 2) completing three neat, tight wraps
- 3) making the transition from wrapping to frapping
- 4) completing two tight fraps and finishing with a square knot
- B. Scouts will demonstrate they can join two Scout Staves at 90° angles, by using a properly-tied square lashing.
- Crossbar(s) suspended between to uprights or supports, about 3 feet high and long enough so that each Scout can stand in front with enough room to practice
- Two Scout Staves for each Scout
- One 10-foot x 1/4-inch manila lashing rope for each Scout
- One 6-foot x 1/4-onch manila lashing rope for each Scout
1) Instructor crouches down or sits in a chair in front of a crossbar. A Scout Stave is leaning against the bar on the other side. Scouts are gathered behind and to the sides of the instructor, so they can watch his hands as he demonstrates the Mark II Square Lashing while narrating:
- First thing is to halve the rope.
- Place the middle of the rope behind the vertical spar and under the horizontal (crossing) spar.
- Start the wraps by working both ends at the same time bringing them up in front of and over the horizontal spar and then crossing behind the vertical spar.
- Start the second wrap by carrying both ends to the front, bringing them down over the horizontal spar and down behind the vertical spar. Cross them underneath.
- Just like the first wrap, bring the ends up in front of and up over the horizontal spar and then cross them a final time behind the vertical spar. You now have three wraps. Carry both ends to the front on top of the crossing spar.
- To begin the fraps, cross the ends over the top of the wraps.
- Pull the rope tightly, around the wraps between the spars, and after two fraps, finish with a square knot.
Note: An Instructor monitors each of the following steps:
2) Using a Scout Stave and a 10-foot lashing rope, each Scout takes a position in front of the crossbar, which will serve as the horizontal (crossing) spar. They place their Scout Stave behind the crossbar.
3) Scouts halve their rope and place it behind their Scout Stave with an end on either side and under the horizontal spar.
4) Scouts start theirs wraps, keeping them neat, even, and flush to one another.
5) After three wraps, Scouts bring the ends of the rope to the front and cross them to begin their wraps.
6) Pulling their two fraps tightly, Scouts finish their lashing with a square knot.
1) Each Scout is given two Scout Staves and a 6-foot lashing rope and instructed to lash the poles together in the middle with a neat, tight square lashing.
During the building process, an area adjacent to the Hourglass Tower saw a lot of action for whipping rope and sharpening pioneering stakes. During the jamboree, it was set up for rope making, for hitching and lashing instruction, and as a display of camp gadgets.
CAMP GADGETS AT THE JAMBOREE: Four useful camp gadgets were set up as displays—a wash station, clothes drying rack, tool rack, and Chippewa kitchen.
- Wash Station (an ideal “First Class Camp Gadget”)
- A Better Clothes Drying Rack (You’ve got to love this design!)
- Tool Rack (very simple)
- Double Tripod Chippewa Kitchen (the king of camp gadgets)
ROPE MAKING AT THE JAMBOREE: There were always Scouts in the rope making area where they were afforded an opportunity to make a short length of rope as a souvenir. To finish off their project, they also learned the West Country Whipping.
LEARNING THE MARK II SQUARE LASHING AT THE JAMBOREE: As in the Single A-Frame Bridge Building area, Scouts were introduced to the quicker, easier-to-learn, and more efficient Japanese Mark II Square Lashing, but here they learned on a lashing rack. Naturally as in past jamborees, all the structures in the pioneering area were lashed with this form of Square Lashing.
A trestle is the basic component for building a bridge in a pioneering project. It is used to support the walkways.
The most basic form of a trestle is an H-frame. It consists of two legs, two ledgers, and two cross braces (see figure 125). When building a bridge, the top ledger is also called a transom. This is the part that supports the walkways.
To make an H-frame trestle, the two ledgers are lashed near the top and bottom of the legs and the cross braces are added, lashing them to the legs.
All of the lashing on the H-frame trestle is done with two types of lashings: a square lashing and a diagonal lashing. The ledgers are lashed to the legs with square lashings. Although it might not look like it, the cross braces are also lashed to the legs with square lashings, not a diagonal lashing. A diagonal lashing is used to lash the two cross braces together where they cross in the center.
When setting out to build an H-frame trestle, choose the two spars for legs first. These spars can be most any length, depending on the type and height of the structure you’re building.
To build a basic H-frame, lay the two legs on the ground with the two butt ends of the spars at the same end and even with each other. Then add the ledgers.
Ledgers. The ledgers are spars that are typically 2 to 2-1/2 inches in diameter. They are lashed to the legs with square lashings. Any of the three square lashings (shown in this pamphlet) can be used. The position of the ledgers on the legs will depend on the structure you’re building. There are a couple of general rules to keep in mind.
First, always keep the legs parallel and the butt ends of the legs even with each other as you’re lashing on the ledgers.* If you don’t, the trestle will stand crooked when you stand it up. As you add the ledgers, they should not stick out too far beyond the legs. You must leave enough room at the ends to tie the lashing, Any more will get in the way.
When using a Traditional Square Lashing or a Modified Square Lashing to tie the ledgers to the legs, be sure the starting clove hitch is placed on the leg so it’s beneath the ledger. When the clove hitch is below the ledger it will support it when the trestle is stood upright. As you tie the lashings, make sure they ar all very tight.
If you use a Japanese Mark II Square Lashing, you can start this lashing with a clove hitch in the middle of the rope to help support the ledger.
Cross braces. Next, the cross braces are added. The cross braces are spars that are usually 2 inches in diameter. They are lashed to the legs in a particular sequence.
First, flip the trestle over and work on the opposite side from the ledgers (see figure 125). Lash one cross brace to the back side of both legs. As mentioned before, use a square lashing (not a diagonal lashing) to attach the ends of the cross braces to the legs.
The second cross brace is added so that the bottom end is on the same side as both ends of the first cross brace. The other end is placed on the front side, the side with the ledgers (see figure 125). This is done so that the cross braces are standing slightly apart. There will be a gap where they cross at the center.
Diagonal Lashing. After the ends of the ledgers and the cross braces are lashed to the legs, stand the trestle up on end. Adjust the trestle so that the legs are parallel. Also check to see that the top ledger is parallel to the ground. If it is not, lower the trestle, untie the lashing, and adjust it.
When the legs are parallel and the top ledger is parallel to the ground, you’re ready to tie the diagonal lashing to the cross braces while the trestle is standing upright. This lashing is very important to the strength of the trestle.
The diagonal lashing creates triangles that are important to stiffen the arrangement of the spars and to keep the trestle from racking. Look around at steel towers, bridges, or buildings being erected and you will see the triangle used in many places for the same reasons as we use it to build a trestle.
When the cross braces are lashed to the legs, there is a slight gap between them where they crossed at the center. A diagonal lashing is used here because it starts out with a timber hitch. The timber hitch pulls the cross braces tightly together. This adds strength to the whole trestle. You have to keep a strain on the lashing rope as you complete the diagonal lashing with three wraps in each direction around the X. Then make two frapping turns between the cross braces to pull the wraps tight. Finally finish by tying another clove hitch on one cross brace.
Once the possibility of racking has been taken care of with the diagonal lashing, the trestle’s vertical legs provide support for a large downward load. Since this is a downward force, also known as a shearing force, the legs don’t have to be very big. In fact, the overall shape of the trestle is an engineered structure that is able to support quite a bit of weight with rather small-diameter spars for legs.
* An exception is building a Single Lock Bridge when the top of one trestle has to fit between the legs of the other.
The square lashing is the basic type of lashing for most pioneering projects. The more a Scout ties them, the more they become like second nature. That means, when the tying of an efficient and tight square lashing is “no sweat,” building a pioneering structure will be easier and more successful. This, of course, makes the experience more fun.
So, to assure the Scouts are ready and able to tackle projects that are challenging, fun, and rewarding, they need to feel confident and happy they can easily tie tight square lashings.
This challenge is very simple, but, it’s fun, and requires each patrol to tie eight tight square lashings. It’s great for new Scouts and a useful team-building activity and practice session “disguised” as a fun, fast-paced interpatrol competition.
Materials for Each Patrol:
- two 8-foot x 4-inch spars
- four 3-foot x 2-inch ladder rungs
- eight 15-foot x 1/4-inch lashing ropes
Method: with the above materials, each patrol will lash together a ladder with four rungs, spacing the rungs FROM THE BOTTOM ABOUT ONE FOOT APART, using eight square lashings. When sturdy, the whole patrol will stand the ladder up and take turns climbing to the top.
The following text and some of the drawings are by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:
We could imagine the first lashing made by man was wrapping a few strips of bark around a stone to hold it to a tree branch to make an ax to hunt and build with. Even today with all our modern ways to hold things together, it is still fascinating to lash sticks or spars together to make a camp gadget or useful structure.
There are still areas in the world where lashing spars (or bamboo poles) is the basic means of building structures. In Scouting, we use the same methods but have replaced strips of bark and vines with natural and synthetic fiber ropes.
The best choice of rope to use for lashing the type of pioneering projects (shown in this pamphlet) is pure manila rope. Therefore, all references to rope used for lashing in this section refer to manila rope.
Yet, sometimes we are faced with a problem—we have to use what is available and economical to get the job done. When making camp gadgets for temporary use, you could use lesser quality, less expensive rope or even binder twine for small projects.
SQUARE LASHINGS ***
The basic type of lashing for most projects is some form of a square lashing. This lashing is used to join two spars together, usually at a right angle, but not always. For example, square lashings are used when building a trestle to join the ledger and header to the legs at right angles. But it is also used to hold the ends of the X bracing to the legs at an angle. (Refer to “Making a Trestle.”)
In this section, three different square lashings are shown: (1) the Traditional Square Lashing, (2) the Modified Square Lashing, and (3) the Japanese Mark II. All three types of square lashings accomplish the same thing by making three wraps and two frapping turns around the spars being held together.
The only difference between these three different square lashings is the type of knot that is used to start and complete the lashing. You may learn that one of these knots is easier to tie, if so, you can stick with the one you are most comfortable with.
In addition to square lashings, you will most likely need to know how to make a diagonal and shear lashings. Some methods of making these types are also shown later in this section.
No matter what kind of lashing you’re making, there are two basic terms you should be familiar with: wraps and fraps. The basic difference between the two terms is that a wrap is made around the spars, while a frap is made around the rope itself.

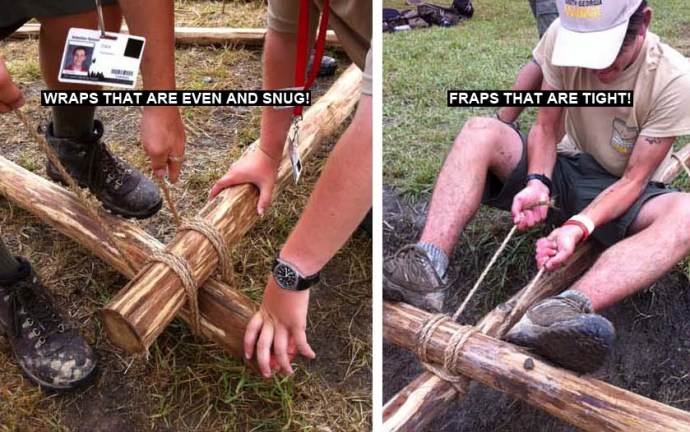

Wrap. A wrap is a turn made around the two spars to hold the spars tightly together. Usually, three wraps are made to form a Square Lashing. Some other lashings require more wraps.
Frap. A frap is a turn made between the spars. It goes around the wraps to pull the wraps tighter. Usually two frapping turns are made on a lashing.
Good lashings are not made in a hurry. Each wrap must be made with a strain on the rope. Frapping turns should be pulled up as tightly as possible before the final knot is tied.
When you set out to make a lashing, the size and length of the rope you need are among the first questions you have to answer. To determine the length of rope needed for a lashing, add the diameters (in inches) of the two spars at the point the lashing is being made. If one spar is 2-1/2 inches in diameter and the other is 3-1/2 inches in diameter, the total equals 6 inches. Multiply by 3 feet to get the length of the rope needed for lashing.
If you use a rope that is too short to make three wraps and two fraps for a lashing, you should add (Splice or join with a Square Knot) a length of rope to complete the lashing with three full wraps and two fraps. For safety, don’t leave the lashing short.
If you find you have extra rope, make more wraps or fraps to use up the rope to avoid cutting the rope or leaving long loose ends hanging out.
In most cases, 1/4-inch diameter manila rope should take care of lashing two spars together as long as the combined diameter of both spars is 6″ or less. When the combined diameter is over 6 inches, use 3/8-inch diameter rope.
If your troop or camp puts together a pioneering kit, it should contain lashing ropes that are cut to standard lengths: 10, 15, 20, 30 and 50 feet.
Both ends of these lashing ropes should be properly whipped. It also helps to color-code the ends of all ropes with a bit of paint to denote each length. When storing ropes, make sure they are dry and properly coiled. Never “hank” ropes for storage. That is, don’t wrap them around your hand and elbow to form a coil. Tie each coil with a short piece of cord and store the coiled rope on pegs or in a ventilated storage box.*
TRADITIONAL SQUARE LASHING
In Scout Pioneering in the United States we most often see the square lashing started with a clove hitch. The clove hitch is tied on the vertical spar, just below where you want to join the crossing horizontal spar (see 1).
Using a clove hitch to start this lashing allows for two things. First, you can rest the crossing spar on the clove hitch to help support it as you begin the lashing while building your structure. Second, the clove hitch helps keep the structure from racking (twisting out of shape), causing the lashing to loosen as it is moved or hoisted into position.
After the clove hitch is tied, wrap the excess short end of the rope around the standing part of the rope (see 2). Hold the crossing spar up to the vertical spar and make three wraps around the spars using the long end (see 3, 4, and 5). Pull each wrap tight to hold the spars together. Make two frapping turns around the wraps (between the spars) to pull the wraps tight (see 6 and 7) and finish with another clove hitch on the horizontal spar (see 8 and 9).
One other point to make about the square lashing is that you shouldn’t be fooled by or limited by its name. Although two spars can be lashed together at 90° using a square lashing, it can also be used to lash two spars together at any angle. For example, a square lashing is used to lash the ends of two light spars to the uprights of a trestle to form the X bracing. A diagonal lashing is used at the center of the X to hold the crossed spars together.
MODIFIED SQUARE LASHING
The Modified Square Lashing was developed because of the difficulty usually experienced when tying a clove hitch to complete the traditional square lashing. The clove hitch that starts the lashing is easy enough to make, but tying a clove hitch at the end of the lashing is a different matter.
As shown in figure 104, the modified square lashing starts with a clove hitch. When tying the clove hitch, let the running end of the clove hitch extend about 12″. Also do not twist the short end around the standing part of the rope as in the traditional square lashing.
After tying the starting clove hitch, proceed as usual using the long end of the rope to make three wraps (see figure 105). Then make two frapping turns (see figure 106).
To complete the lashing, bring up the short end of the rope that extends from the clove hitch and tie a square knot (see figure 107). Bring the short end up in the opposite direction of the frapping turns.
As in the Traditional Square Lashing, there is some disadvantage in having to make the complete lashing using the one end of the rope.
This lashing is a straightforward approach to the task of lashing two spars together. (CLICK HERE FOR INFORMATION AND PROCEDURE.)
DIAGONAL LASHING ***
When putting crossed braces on a structure to keep it from racking (as used when making a trestle), the most important lashing is the diagonal lashing where the spars cross. (Refer to the “Making a Trestle” section.)
When the cross spars are properly assembled on the trestle, they will be standing apart where they cross. That is, there will be a few inches of space between the spars where they cross at the center of the X. To pull them tightly together, a timber hitch is used to start the lashing (figure 1). As the timber hitch is pulled tight, the spars are sprung together. Next, three wraps are made in each direction across the X (figures 2 thru 5). After the wraps, make two frapping turns between the spars, pulling the wrapping turns tightly together and taking up any slack (figures 6 and 7). Finally, tie a clove hitch on one spar to complete the lashing (figures 8 thru 10). When this lashing is added to the cross braces, it helps keep the trestle from racking. Filipino Diagonal Lashing.
The pattern you make with the rope for this lashing is the same as the one to make the whipping. The only difference is that this lashing is tied around two spars to hold them together.
To make this lashing, tie a series of half-knots (overhand knots) around the two spars (see figure 115). Tie one half-knot in front and the next half-knot in back (see figure 116). Make sure each half-knot is pulled up as tight as possible. After tying six to ten half-knots, finish off the lashing with a square knot (see figure 117). By using six to ten half-knots in this lashing, it makes it very strong and effective, but can be a little difficult to untie.
The West Country Round Lashing is used to tie two spars together to extend the overall length of the spars. When this is done, you should make two sets of lashings, not just one lashing. Make one lashing at each end of the overlapping spars.
TWO-SPAR SHEAR LASHING (Shear Lashing)
The main application for the Two-Spar Shear Lashing is when spar legs are to be spread apart to form an A-frame.
The Two-Spar Shear Lashing starts with a clove hitch on one spar (see figure 118). After making the clove hitch, wrap the excess part of the short running end around the standing part of the rope (see figure 119).
Unlike square lashings, the shear lashing requires eight or ten wraps around the spars before making the frapping turns between the spars to pull the wraps tight (see figure 120). This lashing then ends with a clove hitch on the other spar (see figure 121).
If you’re making an A-frame, start the spars side by side and tie a clove hitch on one spar, about 1 foot from the top end of the spars depending on the project. Then you can take ten wrapping turns around the spars, making the wraps somewhat loose. The legs can then be spread to the required distance. This should put strain on the wraps.
In some pioneering situations all that’s needed is a few wraps with a rope, a light cord, or binder twine to hold two small spars or sticks together. Wrap the rope or cord around the spars a few times and finish with a Square Knot. This is called a strop lashing.
A strop lashing can be drawn down tight, or it can be made as a loose wrap so that it allows movement or acts as a hinge.
The strop lashing can have several simple applications at camp. For example, if you don’t want to dig a hole for the staff of your patrol flag, drive a tall stake in the ground. Then use a light cord or binder twine to make two strop lashings about 1 foot apart to hold the staff to the stake (see figure 122).
If your patrol just completed a signal tower and you want to show who did it, lash your patrol flag to the top of one of the legs with a strop lashing.
When you’re adding walkways to a bridge, they need to be joined to the trestle to form a single unit. The way to do that is to lash the two walkways to the transom at the center of the bridge with two or three strop lashings (see figure 123).
The ends of the walkways also need to be held to stakes. Use a strop lashing to hold the ends of the walkway to the stakes (see figure 124).
The Boy-Sized projects provided and designed by Adolph Peschke and featured in the older Pioneering Merit Badge Pamphlet (Single Lock Bridge, Single Trestle Bridge, A-Frame Bridge, Double A-Frame Monkey Bridge, 14′ Double Ladder Signal Tower) do not require the frequently employed tripod lashing, and hence it’s not included herein.
* An approach that is seen as a practical way to preserve and organize your lashing ropes is to coil ropes of the same length into manageable groupings, i.e. a large coil containing more than a single rope, and then tying up the grouping at one end with a 3-foot light cord.
** Round lashings are more frequently used to very effectively extend Scout staves or smaller diameter spars.
*** In a square lashing, the wraps and fraps form a square. In a diagonal lashing the wrapping turns cross the poles diagonally. Both lashings can be used to join two poles together that cross each other from 45º to 90º. It’s the square lashing that is used most because there is more contact between the rope and the poles, and hence it is stronger. A diagonal lashing is used when there is a need to close a gap between two spars or when they spring apart, in other words, when we want to bind poles together where they cross each other but do not touch. This most commonly occurs when the ends of the spars are already lashed in place in a structure, as in forming the X-brace of an H-Trestle.
James Keller, Director of the Pioneering area at the 2013 National Jamboree, related a story about the Japanese Mark II Square Lashing. He described how back in 1993, Adolph Peschke had mandated that his staff should just use the Japanese Mark II Square Lashing for the national jamboree’s pioneering projects. Some of the Pioneering staff back then had not as of yet become familiar with the lashing, and at first, some were a little hesitant to adopt it. But, after becoming acquainted, their overwhelming consensus was, why had they wasted so much time over the years using the traditional Square Lashing.

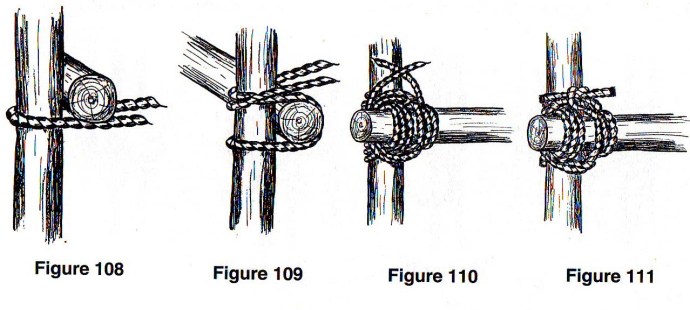

The Japanese Mark II Square Lashing has found its way into Scouting in the United States through Wood Badge training in England, and because of the work of John Thurman, camp chief of Gilwell. He observed it on one of his many world trips related to Wood Badge training.
This lashing is a straightforward approach to the task of lashing two spars together. Begin by placing the spars in the desired position. Now fold your lashing rope in half.
The midpoint of the rope is placed around the vertical spar and just under the crossing spar (see figure 108). Now work both ends of the rope at the same time to make three wraps around the spars (see figure 109).
After completing the three wraps, bring the two ends up between the spars in opposite directions to make the frapping turns around the wraps (see figure 110). Pull the frapping turns tight, and complete the lashing by tying the two ends with a Square Knot (see figure 111). It’s that simple.
The advantage of this lashing is that you’re working both ends of the rope at the same time. This makes it much quicker to tie since each hand has less rope to pull through. This lashing has the same holding effect as both the traditional and modified Square Lashings.
If more support is needed for the crossing spar, a Clove Hitch can be tied at the midpoint of the rope. Tie the Clove Hitch to the vertical spar just below the crossing spar. You can rest the crossing spar on the Clove Hitch as the lashing is being made. Then use both ends to complete the lashing as described above.
- — Up / Over / Behind / Cross —
- — Down / Over / Behind / Cross —
- — Up / Over / Behind / Cross —
- — Front / Cross / Down —
- — Cross / Up / Knot —
The well-known, time-tested, traditional Monkey Bridge is perhaps the most familiar of all Scout pioneering projects. It’s frequently featured at Scout Expos, Camporees, Scout Camps, and is often a central attraction at public gatherings where Scouting is represented.
The following instructions and guidelines are provided by Adolph Peschke, taken from the 1993 edition of the Pioneering Merit Badge Pamphlet:
Using a double A-frame to build a monkey bridge is a departure from the usual X-frame that supports the foot rope and hand ropes. This new method has two distinct advantages over the X- frame version. First, the double A-frame provides a wider base making it less likely to tip over. The second advantage is that the positions of the A-frames can be adjusted so the span between the hand ropes can be narrowed for better balance as you make the crossing.
Building the A-frames. The first step in building the monkey bridge is to build four A-frames using the 8-foot spars for the two legs, and 6-foot spars for the ledger. Lay out the first set of three spars (two legs and one ledger) on the ground in position for lashing. Before lashing, drive three stakes, as follows, to help you make all four A-frames the same size: Drive a stake at the top to mark where the leg spars cross. Then drive stakes to mark the positions of where the bottom ledger crosses the legs. This will also indicate how far the legs are spread apart. Now you can lash the four A-frames together, laying them out one at a time using the stakes. Remember that all three lashings on the A-frames are square lashings, even though the spars cross at less than 90˚ angle.
Double A-frame. When you have four A-frames, you can lash two of them together to form a double A-frame. (see figure 140). Lay one A-frame on the ground and then put another on top of it so that the bottom ledgers overlap one-half their length (approximately 3 feet). The first step in lashing the A-frames together is to go up where the two legs cross (the X formed by one leg from each A-frame). Then with a good tight square lashing, lash the two legs together.
Note: The point where these two legs are lashed together is where the foot rope will rest. You can adjust the overlap of the two A-frames to adjust how high the foot rope will be off the ground. Also note where the tops of the A-frames are, because this is where the hand ropes will be. To complete the double A-frame, stand it up so the butt ends of all four legs rest solidly on level ground. Lash the two bottom ledgers together where they overlap with three strop lashings. Now repeat the entire process to build the second double A-frame.
Site preparation. Before you can erect the double A-frames, you need to prepare the site. Begin by stretching a length of binder twine along the center line of where the monkey bridge is to be built. Working from the center, measure 10 feet toward each end to mark where the A-frames are to be placed. They should be 20 feet apart. Then mark out another 10′ from each A-frame to where the anchors are to be built.
Note: These dimensions are for building a bridge with a 20-foot span. This is the maximum span for a bridge using a 50-foot rope. The extra 30 feet of rope is needed to have 15 feet of rope at each end for the proper distance from the A-frames to the anchors (10 feet) and for the knots at the anchors (5 feet).
Build the anchors. The foot rope will be attached to anchors at both ends. Before erecting the double A-frames, build a 3-2-1 anchor, or a log and stake anchor, 10 feet from where the A-frames will be erected (see figure 141).
Rope grommet. After the anchors are built, attach a rope grommet with a ring or shackle in it. (You can make the rope grommet with a 10-foot length of 1/2-inch diameter polypropylene rope. Tie the ends together using a carrick bend, and permanently secure the ends with some strong twine).
Position the A-frames. Prepare to erect the monkey bridge by moving the A-frames into position no more than 20 feet apart. Lay them down on the binder twine that marks the center line of the bridge.
Hand and foot ropes. Now you can prepare the foot and hand ropes for the monkey bridge. Lay the foot rope in a straight line off to the side of where the A-frames are laying. Then lay the two hand ropes on the ground next to each other so they’re parallel to the foot rope and 42 inches away.
Stringer ropes. Now you can add the stringer ropes that will go from the foot rope to the hand ropes. Start by tying the center of an 8-foot long stringer rope (use 1/4-inch manila rope) at the center of the foot rope, using a clove hitch. The stringer rope is tied around the foot rope so that both ends are 4 feet long. Add two more stringer ropes on both sides of the center stringer rope (so there are five stringer ropes in all), tying them about 4 feet apart. Tie one end of each stringer rope to one of the hand ropes, again using a clove hitch. Then do the same with the other ends of the stringer ropes, attaching them to the other hand rope.
Assemble the bridge. You’re just about ready to assemble the bridge. First place a piece of heavy canvas (called a “saddle”) in the V formed by both double A-frames. This will protect the foot rope and allow it to slide a little in the V without interfering with the lashing rope.
Now get the crew together to erect the bridge. You will need a safety officer to watch for any problems that might occur, and a signal caller to tell the crew members what to do. You will need two Scouts to lift and hold each double A-frame in place, two more Scouts to lift the foot rope into the V of the double A-frames, and two more Scouts to lift the two hand ropes into place at the tops of the A-frames. Lift everything into place. Then, holding the A-frames steady, temporarily tie the hand and foot ropes into the rings of the grommets using a roundturn and two half hitches (see figure 142).
Tighten the foot rope. Now you can put a strain on the foot rope. It’s not necessary to use block and tackle since this will put too much strain on the lashings, anchors, and the foot rope itself when there is a load on the bridge.* Whatever strain three or four Scouts can put on the foot rope by pulling it by hand will be enough. As soon as the bridge is used a few times, there will be a sag in the rope. This is fine because it means that you are working with reduced strain on the foot rope as a safety measure.
Tighten the hand ropes. Next, tie the hand ropes to the top ends of the A-frames. First, loosen one end at a time from the anchors. Then, use a clove hitch to tie the hand rope to the top end of the leg of the double A-frame. As you’re tying these clove hitches, adjust the strain on the sections of the hand ropes between the double A-frames to match the sag of the foot rope. Also, adjust the length of the stringer ropes so there is even strain between the foot rope and both hand ropes. After the hand ropes are tied to the tops of the A-frames, move down and retie the ends of the hand ropes to the rings in the grommets using a roundturn and two half hitches.
Final testing. With caution, one crew member can get on the bridge as all lashings, anchors, and knots are observed by the safety officer and all other crew members. Make adjustments as required. Then secure the running ends of the hand ropes and foot rope with a piece of cord. Safe operation calls for only one Scout to be on the foot rope of the monkey bridge at a time.
LIST OF MATERIALS FOR DOUBLE A-FRAME MONKEY BRIDGE
- eight 4-inch x 8-foot A-frame legs
- four 3-inch x 6-foot ledgers
- fourteen 1/4-inch x 15-foot lashing ropes for Square Lashings
- one 1/2-inch or 3/4-inch x 50-foot rope
- two 1/2-inch x 50-foot hand ropes
- five 1/4-inch x 8-foot stringer ropes
- six 1/4-inch x 10-foot lashing ropes for Strop Lashings
- six pioneering stakes for each 3-2-1 anchor
- eight pioneering stakes for each log-and-stake anchor
- one 5-inch x 4-foot spar for log-and-stake anchor
- two 1/2-inch x 10-foot polypropylene ropes for rope grommets
- two pieces of scrap canvas for foot rope saddle
- binder twine for anchor tieback straps
* It has been found that a rope tackle in the foot rope at each end (not a block and tackle) tightened by one Scout is an excellent procedure to maintain the optimum foot rope tension, and an easy-to-use remedy for too much sagging due to repeated, heavy use and over stretching. There are other configurations used to initially tighten and keep the hand and foot ropes at the optimum tension during use, depending on the weight the bridge must withstand and the amount of traffic it will bear.
