Using Half Hitches to Finish Many Lashings


Though the clove hitch is most always taught by laying two turns around the pole to form an ‘X’ and then passing the running end underneath, the approach presented in this video is an essential one that should come into play anytime a lashing is finished with a clove hitch. This video, extracted from the Clove Hitch and Half Hitches video, communicates this basic process in an understandable and straightforward manner.

Whenever I observe a Scout or Scouter trying to finish a lashing by tying a clove hitch, and they’re not first tying one half hitch up against the wraps, and then another snugged up tight against the first, well…I first feel sorry for them, and then I either need to demonstrate how to do it much easier, quicker, and better, or shake my head, tolerate my frustration, and say nothing.

Anyone who is into lashing poles together, for whatever reason, is already using this super-simple technique—or should be.

As we often quote, John Thurman said, “The first and everlasting thing to remember about the clove hitch is that it is composed of two half hitches. What a very obvious thing to say, but there is hardly one Scout in a hundred who learns what it means. If only we can get Scouts to learn that if you make one half hitch and another half hitch and bring them together they make a clove hitch, what a lot of time the Movement would save in the amount of fiddling and fumbling that goes on when a clove hitch is the order of the day. We would be able to start in the sure knowledge that we can make clove hitches and pass quickly on to better and brighter things.”

Enough said!

The Misunderstood Clove Hitch

What’s with the Lark’s Head



When tying the basic, oft-used, simple “two-half-hitches” (double-half-hitch), instead of TwoHalfHitchesapplying a clove hitch around the standing part, there’s a thing about mistakingly tying a lark’s head. This accident rears its head time and again, and many Scouts (both youth and adult) somehow don’t recognize the difference. Fact remains, tying a lark’s head around the standing part (cow hitch) doesn’t provide the same holding effect or friction as forming a clove hitch. Mostly, it does the trick, BUT, it’s not the same and shouldn’t be considered as such.

TautLineHitchA clove hitch is formed by tying two half hitches in the same direction. The lark’s head is made up of two half hitches tied in opposite directions (see above video).

This becomes a “bigger” issue when tying a taut-line hitch. If the half hitches aren’t tied in the same fashion (if the running end isn’t spiraling around the standing part in the same direction), instead of a rolling hitch around the standing part, what you get is a lark’s head along with an extra round turn. This provides less friction. It will not grab the guyline as well, and hence is less effective.

In addition to the campcraft  jobs it does so well, the lark’s head is useful in Pioneering too. Besides coming into play to hang all kinds of stuff, it’s how we start off the Filipino diagonal lashing.

VIDEO: How to Tie Two Half Hitches (Double Half Hitch)
VIDEO: How to Tie Taut-Line Hitch

Pioneering Program Curriculum II: Half Hitches and Round Lashing

This is the second post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEOS: How to Tie and Apply Half Hitches and the Clove Hitch / How to Tie a Round Lashing

Two Half Hitches Over the Top of a Pole Forming a Clove Hitch
Two Half Hitches Over the Top of a Pole Forming a Clove Hitch

II. In Pioneering, half hitches are everywhere! Two of them next to each other is a clove hitch, and that’s something we use time and time again. As John Thurman declares, “If only we can get Scouts to learn that if you make one half hitch and another half hitch and bring them together they make a clove hitch, what a lot of time the Movement would save in the amount of fiddling and fumbling that goes on when a clove hitch is the order of the day.”

OBJECTIVES

  • Scouts will demonstrate they can tie half hitches around a horizontal pole, proceeding from both the right and the left.
  • Scouts will demonstrate they can tie a round lashing by starting and ending the lashing with two half hitches.
  • Scouts will lash together two staves to make a longer pole by using two properly positioned round lashings.
Horizontal Hitching Post Lashed Between Two 6' Uprights
Horizontal Hitching Post Lashed Between Two 6′ Uprights

MATERIALS

  • Suspended horizontal hitching post or similar setup, to accommodate the entire class
  • Two or more 5-foot Scout Staves for every Scout (the more the better)
  • Four 6 to 10-foot x 1/4-inch manila lashing ropes for every Scout (the more the better)
  • 6-foot  x 1-1/2-inch diameter spar set up as a crossbar with a 6-foot length of 1/2-inch nylon or polyester cord, attached in the middle, to serve as a large visual aid

PROCEDURE A

  1. Starting at the center of the 6-foot spar, the instructor slowly ties a half hitch for all to see, proceeding from the left and initially carrying the running end over the top of the spar.
  2. The half hitch is untied and slowly tied again for all to see. This is repeated as necessary while, in like manner,  the class ties their own half hitch around the horizontal hitching post.
  3. When each Scout can tie the half hitch, the instructor slowly demonstrates the tying of two half hitches in succession. (No mention needs to be made that this is a clove hitch.)
  4. When all Scouts can accomplish this, three and four half hitches are tied in succession. Scouts give it a go.
  5. Starting again at the center, steps 1-4 are repeated on the other side, this time proceeding from the right and initially carrying the running end over the top of the spar.
Tying a simple half hitch around a horizontal pole, proceeding from the left and moving to the right: When proceeding from the left, the running end can be carried over the top of the spar, brought down behind the standing part, and then simply carried over the standing part. Dress the half hitch by pulling the standing part to the left and the running end to the right. For a second half hitch, simply repeat the process. Two Half Hitches (Clove Hitch) Three Half Hitches Four Half Hitches.
Click on the Images for LARGER Views!
Click on Image for LARGE
Click on Image for LARGER Views!
Two Round Lashings Joining Together Two Scout Staves
Two Round Lashings Joining Together Two Scout Staves

PROCEDURE B

  1. Using two Scout Staves and a lashing rope, the instructor demonstrates how, by holding in one hand the two staves and the long end of the rope as the standing part, he can tie two half hitches around both staves working with the running end. This forms a clove hitch which will start off the round lashing. It will be easy to see that since the long end of the rope will be used for the wrappings, to start the lashing, the half hitches will be applied moving towards the nearest end of one of the staves.
  2. Scouts apply the technique, tying the clove hitch around two staves in the manner shown.
  3. The instructor demonstrates wrapping the longer end tightly and neatly around both staves, leaving enough rope to finish the lashing with two half hitches.
  4. Scouts practice lashing two staves together with two round lashings. The space where the two poles are joined, gets two tight round lashings—one on either side of the overlap and right near the ends of each pole. (See photo to the left.)
  5. Scouts combine into one group and, using all the materials on hand, join all the staves tightly together into one very long pole, with round lashings.

INTERPATROL ACTIVITY: Catch the Snapper

PIONEERING CURRICULUM: MAIN PAGE

The Misunderstood Clove Hitch

VIEW VIDEO: How to Tie and Apply the Clove Hitch and Half Hitches

Ah, the clove hitch. It’s a simple way to attach a rope to a pole, it’s side-to-side adjustable and is frequently used to start and finish a variety of lashings. Some folks don’t like it because in various applications, it’s not the most secure or reliable choice. But, in those instances, there are numerous alternatives. See the following photos—all close clove hitch relatives.

Clove Hitch / Rolling Hitch / Constrictor / Spar Hitch
Clove Hitch / Rolling Hitch / Constrictor / Spar Hitch

The clove hitch is one of the most-frequently-used knots Scouts learn, so common, yet it can also be very elusive, especially when it comes to completing certain lashings. In the knot-tying universe, the clove hitch is a whole lot more prevalent than most of us realize, and it can be tied in a variety of ways and from a variety of different perspectives.

Of course they're all clove hitches!
Of course they’re all Clove Hitches!

Two Half Hitches. Here’s what John Thurman says in Pioneering Projects: “The first and everlasting thing to remember about the clove hitch is that it is composed of two half hitches. What a very obvious thing to say, but there is hardly one Scout in a hundred who learns what it means. If only we can get Scouts to learn that if you make one half hitch and another half hitch and bring them together they make a clove hitch, what a lot of time the Movement would save in the amount of fiddling and fumbling that goes on when a clove hitch is the order of the day. We would be able to start in the sure knowledge that we can make clove hitches and pass quickly on to better and brighter things.”

Starting from the right and proceeding the the left. / Starting from the left and proceeding to the right.
Starting from the right and proceeding the the left. / Starting from the left and proceeding to the right.

Before addressing the various ways to approach tying a clove hitch, did you ever wonder why the basic knot, two half hitches is called “Two Half Hitches?” (The name “Double Half Hitch” has also been used.) What’s a half hitch anyway? Well, now we know it’s half a clove hitch, (the line wraps around the object and then passes under itself) but how many of us have realized that in actuality,  two half hitches is a clove hitch tied around the rope’s standing part? That’s what it is! On a side note, the very useful taut-line hitch is nothing but a clove hitch started off with a roundturn (called a rolling hitch), which is also tied around the rope’s standing part. As mentioned above, the clove hitch is whole lot more prevalent than most of us realize, and indeed it can be tied in a variety of ways. Here we go:

A Hitching Post with a Series of Half Hitches
A Hitching Post with a Series of Half Hitches
Hitching Race during the Troop Meeting Gathering Period
Hitching Race during a Troop Meeting’s Gathering Period

Open-End Clove Hitch. Back in the 60s at Camp Wauwepex, a Scout camp on Long Island, one of the attractions in the Scoutcraft area was a vertical pole about 4 feet tall with a rope attached near the bottom. This was a “Hitching Post.” It was put up so Scouts could see how many Half Hitches they could throw over the top of the pole as quickly as possible. Watching fellow Scouts who had mastered the simple technique provided enough motivation to learn how to do it too, and it was easy to get quite good at it. As we were throwing hitches over the pole with greater and greater alacrity, we weren’t aware that every two of these hitches was a clove hitch. Nor would we have cared. It was just fun to see how fast we could get. VIEW VIDEO: Hitching Race

When preceding from the left, all that needs to be done is:

  1. Form a right underhand loop and place it over the pole.
  2. Form another right underhand loop and place it over the pole (on top of the pervious one).
  3. Voila! Clove hitch!

When preceding from the right, instead of right underhand loops, form left underhand loops.

In no position to tie anything but an
In no position to tie anything but an “Open-Ended Clove Hitch!”

Without being informed, one can just look at two of these half hitches and see they look exactly like a clove hitch. Of course, that’s because these two half hitches are a clove hitch. Throwing two half hitches over the open end of a vertical pole is the hands down, quickest way of tying a clove hitch, After you’ve done it for awhile, it takes about a second. A common way to refer to this approach is to call it an “Open-Ended Clove Hitch.” It’s exactly what the doctor ordered when you need to tie a clove hitch over the end of a spar. It’s also the only way to tie a clove hitch in the middle of a long line, like when securing a hand rope on the top of an A-frame during the construction of a Double A-frame Monkey Bridge (unless you want to pull foot after foot of rope through the hitches because you’re using an alternate method, or… you just don’t know any better).

Open-Ended Clove Hitch
Open-End Clove Hitch

It’s really surprising how many folks, old and young, aren’t familiar with this simple method of tying a clove hitch. Here’s an amusing illustration: A young Scout was competing at a camporee for the best time in completing a Rope-Toss-Log-Lift Challenge. After throwing the rope over the crossbar and tying the end to a log with a timber hitch, the third step is to secure the other end of the rope to a stake in the ground with a clove hitch. Ah! An open ended pole! So, this young Scout completes the first two steps, runs over to the stake and, bam! He ties an Open-Ended Clove Hitch over that stake in nothing flat. The jaw of the Scouter conducting the event drops down. With mouth open and a look of bewilderment on his face, he leans down, scratches his head, and examines the knot. Yes, to his surprise, indeed it’s a clove hitch! This skinny, young Scout did something the adult had never seen before, and the old guy was astonished!

Finishing a Lashing with Two Half Hitches.

Finishing a Diagonal Lashing with Two Half Hitches forming the Clove Hitch
Finishing a Diagonal Lashing with Two Half Hitches forming the Clove Hitch

Here’s the story:  When you learn how to do this, number one, it’s faster. Number two, it’s also easier to securely finish off the frapping turns, because it’s a cinch to snug both half hitches in close and pull them real tight, which is definitely something you want to do.

1/2 HITCH + 1/2 HITCH = CLOVE HITCH  —> WATCH AND SEE!

A Better Clothes Drying Rack

You’ve got to love this design. It’s compact, it’s sturdy, and it’s ingenious!

This drying rack is based on suspending two concentric, equilateral triangles to make six cross sections for hanging wet clothing or towels during a long term encampment, and there’s no reason you can’t put it up on an overnighter if there’s a practical need. All that’s been said before regarding the advantages of this kind of campsite improvement apply to this simple camp gadget:

  • It takes up less space while drying more wet things.
  • It eliminates the clutter of clothing and towels haphazardly strewn around on tables, tree branches, tent platforms, or overcrowded on a disorganized array of drooping clothes lines.
  • It can be set up in a location where there is the most sunshine.
  • It’s especially useful when camping in an open area with few trees.

Materials (adapt these as you like)

  • three 4-foot  x 1-inch sticks
  • three 5-foot x 1-inch sticks (Scout staves are ideal)
  • one 6-foot x 1-1/2 to 2-1/2-inch straight pole for the upright (or an additional 5-foot Scout stave)
  • one 30-inch pioneering stake
  • eight camp gadget lashing ropes (6 to 10-foot)
  • three 15-foot lashing ropes
  • three small stakes
Two Equilateral Triangles

Procedure

Lash the triangles. Start by lashing together two equilateral triangles, one smaller for the top (three 4-foot sticks), and the larger one for the bottom (three 5-foot staves). Use square lashings. One easy way is to lash two at 90° and then bend them in and tie the third square lashing to make the triangle. This yields a nice, tightly-lashed triangle, (but be careful you’re not putting too much stress on the ropes and poles when preparing to apply the third lashing).

Pioneering Stake
Pioneering Stake

Erect the upright. Pound in a pioneering stake and lash the 6-foot pole to it securely with two tight strop lashings or round lashings. Making this upright stand up vertically without moving or wobbling at all is a key to a good and sturdy clothing dryer. So, solidly pound in the stake and make sure it’s as straight as possible. Also, make sure the lashings are well-tied and tight.

—> ALTERNATIVE APPROACH: A clothes drying rack can be erected without having to either pound in a stake or sink the center pole, by using the same principle as when erecting a flagpole. The key is using the support ropes as guylines. SEE PHOTO.

Rolling Hitches
Rolling Hitches

Attach the triangles. Lay the triangles on the ground over the upright, first the larger triangle, and then the smaller one on top.

Using rolling hitches, tie the three 15-foot support ropes to the top of the upright. (Roundturns with two half hitches also work just fine.)

Tie each corner of the smaller triangle to a support rope so it will be suspended about 5 feet above the ground. Use clove hitches which can be adjusted as necessary to assure the triangle hangs evenly and the 4-foot sticks are horizontal. Continuing with each of the three support ropes, repeat this process for the larger triangle so that it will hang about 4 feet above the ground.

Clove Hitch
Clove Hitch
Tautline at Stake
Taut Line Hitch at Stake

Anchor the support ropes. Hammer in a small stake a foot or so out, in line with each corner of the bottom triangle. Using the remaining length of the support ropes, attach them to the stakes with a simple taut-line hitch. This will further stabilize the clothing dryer and enable you to make fine-tune adjustments to the way the triangles lay. (You can also just make them fast to the stakes with a roundturn with two half hitches, or another clove hitch.)

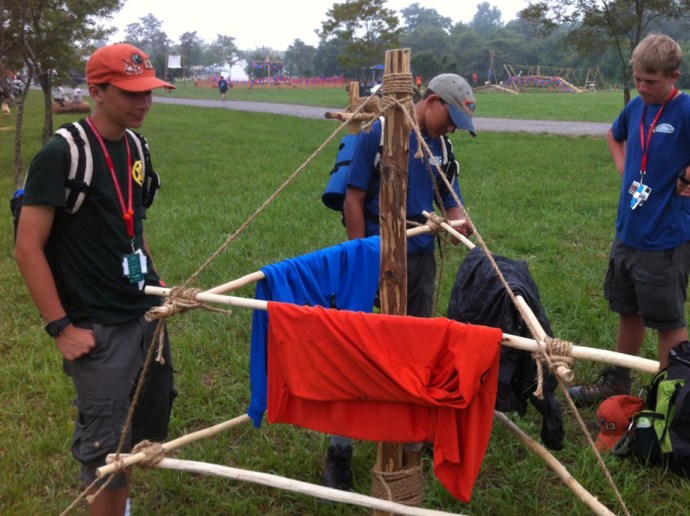

Better Clothes Drying Rack
An assembled clothes drying rack at the 2013 Jamboree gets the once over.

Making a Trestle

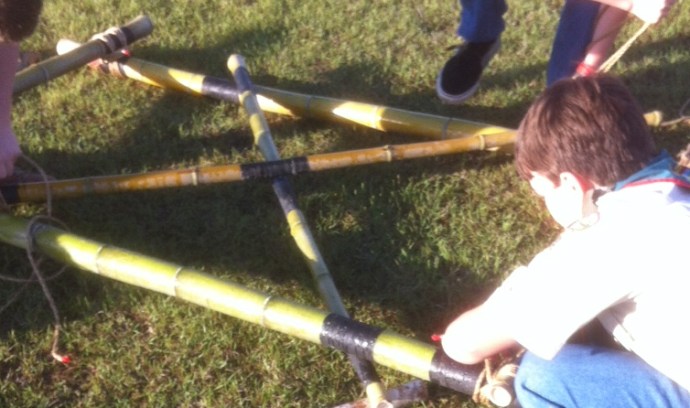

Lashing together a Trestle from Bamboo Spars
Lashing together a Trestle from Bamboo Spars (note the friction tape)

Link to: Older Pamphlet InfoThe following text is by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

A trestle is the basic component for building a bridge in a pioneering project. It is used to support the walkways.

The most basic form of a trestle is an H-frame. It consists of two legs, two ledgers, and two cross braces (see figure 125). When building a bridge, the top ledger is also called a transom. This is the part that supports the walkways.

To make an H-frame trestle, the two ledgers are lashed near the top and bottom of the legs and the cross braces are added, lashing them to the legs.

Figure 125
Figure 125

All of the lashing on the H-frame trestle is done with two types of lashings: a square lashing and a diagonal lashing. The ledgers are lashed to the legs with square lashings. Although it might not look like it, the cross braces are also lashed to the legs with square lashings, not a diagonal lashing. A diagonal lashing is used to lash the two cross braces together where they cross in the center.

When setting out to build an H-frame trestle, choose the two spars for legs first. These spars can be most any length, depending on the type and height of the structure you’re building.

To build a basic H-frame, lay the two legs on the ground with the two butt ends of the spars at the same end and even with each other. Then add the ledgers.

Ledgers. The ledgers are spars that are typically 2 to 2-1/2 inches in diameter. They are lashed to the legs with square lashings. Any of the three square lashings (shown in this pamphlet) can be used. The position of the ledgers on the legs will depend on the structure you’re building. There are a couple of general rules to keep in mind.

Assembling the X-Brace Side
This Trestle is One of Several Subassemblies in a Larger Project

First, always keep the legs parallel and the butt ends of the legs even with each other as you’re lashing on the ledgers.* If you don’t, the trestle will stand crooked when you stand it up. As you add the ledgers, they should not stick out too far beyond the legs. You must leave enough room at the ends to tie the lashing, Any more will get in the way.

When using a Traditional Square Lashing or a Modified Square Lashing to tie the ledgers to the legs, be sure the starting clove hitch is placed on the leg so it’s beneath the ledger. When the clove hitch is below the ledger it will support it when the trestle is stood upright. As you tie the lashings, make sure they ar all very tight.

If you use a Japanese Mark II Square Lashing, you can start this lashing with a clove hitch in the middle of the rope to help support the ledger.

Cross braces. Next, the cross braces are added. The cross braces are spars that are usually 2 inches in diameter. They are lashed to the legs in a particular sequence.

First, flip the trestle over and work on the opposite side from the ledgers (see figure 125). Lash one cross brace to the back side of both legs. As mentioned before, use a square lashing (not a diagonal lashing) to attach the ends of the cross braces to the legs.

The second cross brace is added so that the bottom end is on the same side as both ends of the first cross brace. The other end is placed on the front side, the side with the ledgers (see figure 125). This is done so that the cross braces are standing slightly apart. There will be a gap where they cross at the center.

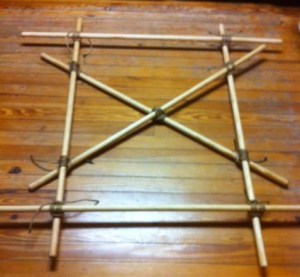

Trestle built with 5' Scout Staves
Trestle built with 5′ Scout Staves

Diagonal Lashing. After the ends of the ledgers and the cross braces are lashed to the legs, stand the trestle up on end. Adjust the trestle so that the legs are parallel. Also check to see that the top ledger is parallel to the ground. If it is not, lower the trestle, untie the lashing, and adjust it.

When the legs are parallel and the top ledger is parallel to the ground, you’re ready to tie the diagonal lashing to the cross braces while the trestle is standing upright. This lashing is very important to the strength of the trestle.

The diagonal lashing creates triangles that are important to stiffen the arrangement of the spars and to keep the trestle from racking. Look around at steel towers, bridges, or buildings being erected and you will see the triangle used in many places for the same reasons as we use it to build a trestle.

When the cross braces are lashed to the legs, there is a slight gap between them where they crossed at the center. A diagonal lashing is used here because it starts out with a timber hitch. The timber hitch pulls the cross braces tightly together. This adds strength to the whole trestle. You have to keep a strain on the lashing rope as you complete the diagonal lashing with three wraps in each direction around the X. Then make two frapping turns between the cross braces to pull the wraps tight. Finally finish by tying another clove hitch on one cross brace.

Once the possibility of racking has been taken care of with the diagonal lashing, the trestle’s vertical legs provide support for a large downward load. Since this is a downward force, also known as a shearing force, the legs don’t have to be very big. In fact, the overall shape of the trestle is an engineered structure that is able to support quite a bit of weight with rather small-diameter spars for legs.

* An exception is building a Single Lock Bridge when the top of one trestle has to fit between the legs of the other.



Lashing INFORMATION

The following text and some of the drawings are by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

We could imagine the first lashing made by man was wrapping a few strips of bark around a stone to hold it to a tree branch to make an ax to hunt and build with. Even today with all our modern ways to hold things together, it is still fascinating to lash sticks or spars together to make a camp gadget or useful structure.

There are still areas in the world where lashing spars (or bamboo poles) is the basic means of building structures. In Scouting, we use the same methods but have replaced strips of bark and vines with natural and synthetic fiber ropes.

The best choice of rope to use for lashing the type of pioneering projects (shown in this pamphlet) is pure manila rope. Therefore, all references to rope used for lashing in this section refer to manila rope.

Yet, sometimes we are faced with a problem—we have to use what is available and economical to get the job done. When making camp gadgets for temporary use, you could use lesser quality, less expensive rope or even binder twine for small projects.

SQUARE LASHINGS ***

The basic type of lashing for most projects is some form of a square lashing. This lashing is used to join two spars together, usually at a right angle, but not always. For example, square lashings are used when building a trestle to join the ledger and header to the legs at right angles. But it is also used to hold the ends of the X bracing to the legs at an angle. (Refer to “Making a Trestle.”)

In this section, three different square lashings are shown: (1) the Traditional Square Lashing, (2) the Modified Square Lashing, and (3) the Japanese Mark II. All three types of square lashings accomplish the same thing by making three wraps and two frapping turns around the spars being held together.

The only difference between these three different square lashings is the type of knot that is used to start and complete the lashing. You may learn that one of these knots is easier to tie, if so, you can stick with the one you are most comfortable with.

In addition to square lashings, you will most likely need to know how to make a diagonal and shear lashings. Some methods of making these types are also shown later in this section.

LASHING TERMS

No matter what kind of lashing you’re making, there are two basic terms you should be familiar with: wraps and fraps. The basic difference between the two terms is that a wrap is made around the spars, while a frap is made around the rope itself.

Wrap. A wrap is a turn made around the two spars to hold the spars tightly together. Usually, three wraps are made to form a Square Lashing. Some other lashings require more wraps.

Frap. A frap is a turn made between the spars. It goes around the wraps to pull the wraps tighter. Usually two frapping turns are made on a lashing.

Good lashings are not made in a hurry. Each wrap must be made with a strain on the rope. Frapping turns should be pulled up as tightly as possible before the final knot is tied.

ROPE LENGTH

When you set out to make a lashing, the size and length of the rope you need are among the first questions you have to answer. To determine the length of rope needed for a lashing, add the diameters (in inches) of the two spars at the point the lashing is being made. If one spar is 2-1/2 inches in diameter and the other is 3-1/2 inches in diameter, the total equals 6 inches. Multiply by 3 feet to get the length of the rope needed for lashing.

If you use a rope that is too short to make three wraps and two fraps for a lashing, you should add (Splice or join with a Square Knot) a length of rope to complete the lashing with three full wraps and two fraps. For safety, don’t leave the lashing short.

If you find you have extra rope, make more wraps or fraps to use up the rope to avoid cutting the rope or leaving long loose ends hanging out.

ROPE DIAMETER

In most cases, 1/4-inch diameter manila rope should take care of lashing two spars together as long as the combined diameter of both spars is 6″ or less. When the combined diameter is over 6 inches, use 3/8-inch diameter rope.

PIONEERING KIT

If your troop or camp puts together a pioneering kit, it should contain lashing ropes that are cut to standard lengths: 10, 15, 20, 30 and 50 feet.

Both ends of these lashing ropes should be properly whipped. It also helps to color-code the ends of all ropes with a bit of paint to denote each length. When storing ropes, make sure they are dry and properly coiled. Never “hank” ropes for storage. That is, don’t wrap them around your hand and elbow to form a coil. Tie each coil with a short piece of cord and store the coiled rope on pegs or in a ventilated storage box.*

TRADITIONAL SQUARE LASHING

Drawing Design from Rope Works by Gerald L. Findley http://www.ropeworks.biz/reader/squarlas.pdf
Drawing Design from Rope Works by Gerald L. Findley http://www.ropeworks.biz/reader/squarlas.pdf

In Scout Pioneering in the United States we most often see the square lashing started with a clove hitch. The clove hitch is tied on the vertical spar, just below where you want to join the crossing horizontal spar (see 1).

Using a clove hitch to start this lashing allows for two things. First, you can rest the crossing spar on the clove hitch to help support it as you begin the lashing while building your structure. Second, the clove hitch helps keep the structure from racking (twisting out of shape), causing the lashing to loosen as it is moved or hoisted into position.

After the clove hitch is tied, wrap the excess short end of the rope around the standing part of the rope (see 2). Hold the crossing spar up to the vertical spar and make three wraps around the spars using the long end (see 3, 4, and 5). Pull each wrap tight to hold the spars together. Make two frapping turns around the wraps (between the spars) to pull the wraps tight (see 6 and 7) and finish with another clove hitch on the horizontal spar (see 8 and 9).

One other point to make about the square lashing is that you shouldn’t be fooled by or limited by its name. Although two spars can be lashed together at 90° using a square lashing, it can also be used to lash two spars together at any angle. For example, a square lashing is used to lash the ends of two light spars to the uprights of a trestle to form the X bracing. A diagonal lashing is used at the center of the X to hold the crossed spars together.

MODIFIED SQUARE LASHING

The Modified Square Lashing was developed because of the difficulty usually experienced when tying a clove hitch to complete the traditional square lashing. The clove hitch that starts the lashing is easy enough to make, but tying a clove hitch at the end of the lashing is a different matter.

As shown in figure 104, the modified square lashing starts with a clove hitch. When tying the clove hitch, let the running end of the clove hitch extend about 12″. Also do not twist the short end around the standing part of the rope as in the traditional square lashing.

After tying the starting clove hitch, proceed as usual using the long end of the rope to make three wraps (see figure 105). Then make two frapping turns (see figure 106).

To complete the lashing, bring up the short end of the rope that extends from the clove hitch and tie a square knot (see figure 107). Bring the short end up in the opposite direction of the frapping turns.

As in the Traditional Square Lashing, there is some disadvantage in having to make the complete lashing using the one end of the rope.

Modified Square Lashing
Modified Square Lashing

JAPANESE MARK II SQUARE LASHING

This lashing is a straightforward approach to the task of lashing two spars together. (CLICK HERE FOR INFORMATION AND PROCEDURE.)

Square Lashing
Japanese Mark II Square Lashing Photographed Procedure

DIAGONAL LASHING ***

When putting crossed braces on a structure to keep it from racking (as used when making a trestle), the most important lashing is the diagonal lashing where the spars cross. (Refer to the “Making a Trestle” section.)

When the cross spars are properly assembled on the trestle, they will be standing apart where they cross. That is, there will be a few inches of space between the spars where they cross at the center of the X. To pull them tightly together, a timber hitch is used to start the lashing (figure 1). As the timber hitch is pulled tight, the spars are sprung together. Next, three wraps are made in each direction across the X (figures 2 thru 5). After the wraps, make two frapping turns between the spars, pulling the wrapping turns tightly together and taking up any slack (figures 6 and 7). Finally, tie a clove hitch on one spar to complete the lashing (figures 8 thru 10). When this lashing is added to the cross braces, it helps keep the trestle from racking. Filipino Diagonal Lashing.

Diagonal Lashing Diagram
Diagonal Lashing Diagram

WEST COUNTRY ROUND LASHING

The pattern you make with the rope for this lashing is the same as the one to make the whipping. The only difference is that this lashing is tied around two spars to hold them together.

To make this lashing, tie a series of half-knots (overhand knots) around the two spars (see figure 115). Tie one half-knot in front and the next half-knot in back (see figure 116). Make sure each half-knot is pulled up as tight as possible. After tying six to ten half-knots, finish off the lashing with a square knot (see figure 117). By using six to ten half-knots in this lashing, it makes it very strong and effective, but can be a little difficult to untie.

The West Country Round Lashing is used to tie two spars together to extend the overall length of the spars. When this is done, you should make two sets of lashings, not just one lashing. Make one lashing at each end of the overlapping spars.

West Country Shear Lashing Diagram
West Country Shear Lashing Diagram

TWO-SPAR SHEAR LASHING (Shear Lashing)

The main application for the Two-Spar Shear Lashing is when spar legs are to be spread apart to form an A-frame.

The Two-Spar Shear Lashing starts with a clove hitch on one spar (see figure 118). After making the clove hitch, wrap the excess part of the short running end around the standing part of the rope (see figure 119).

Two-Spar Shear Lashing Diagram
Two-Spar Shear Lashing Diagram (this drawing has been modified for the purpose of clarity)
Completed Shear Lashing Before the Spars have been Spread
Completed Shear Lashing Before the Spars have been Spread
Shear Lashing After Spreading the Shear Legs
Shear Lashing After Spreading the Shear Legs

Unlike square lashings, the shear lashing requires eight or ten wraps around the spars before making the frapping turns between the spars to pull the wraps tight (see figure 120). This lashing then ends with a clove hitch on the other spar (see figure 121).

If you’re making an A-frame, start the spars side by side and tie a clove hitch on one spar, about 1 foot from the top end of the spars depending on the project. Then you can take ten wrapping turns around the spars, making the wraps somewhat loose. The legs can then be spread to the required distance. This should put strain on the wraps.

With the legs apart, you can make the frapping turns around the wraps to pull them tight. Finally, complete the lashing by tying a clove hitch on the opposite spar.

The Somewhat Ambiguous Shear Lashing

STROP LASHING

In some pioneering situations all that’s needed is a few wraps with a rope, a light cord, or binder twine to hold two small spars or sticks together. Wrap the rope or cord around the spars a few times and finish with a Square Knot. This is called a strop lashing.

A strop lashing can be drawn down tight, or it can be made as a loose wrap so that it allows movement or acts as a hinge.

The strop lashing can have several simple applications at camp. For example, if you don’t want to dig a hole for the staff of your patrol flag, drive a tall stake in the ground. Then use a light cord or binder twine to make two strop lashings about 1 foot apart to hold the staff to the stake (see figure 122).

If your patrol just completed a signal tower and you want to show who did it, lash your patrol flag to the top of one of the legs with a strop lashing.

When you’re adding walkways to a bridge, they need to be joined to the trestle to form a single unit. The way to do that is to lash the two walkways to the transom at the center of the bridge with two or three strop lashings (see figure 123).

The ends of the walkways also need to be held to stakes. Use a strop lashing to hold the ends of the walkway to the stakes (see figure 124).

Strop Lashing
Strop Lashing

The Boy-Sized projects provided and designed by Adolph Peschke and featured in the older Pioneering Merit Badge Pamphlet (Single Lock BridgeSingle Trestle Bridge, A-Frame Bridge, Double A-Frame Monkey Bridge14′ Double Ladder Signal Towerdo not require the frequently employed tripod lashing, and hence it’s not included herein.

* An approach that is seen as a practical way to preserve and organize your lashing ropes is to coil ropes of the same length into manageable groupings, i.e. a large coil containing more than a single rope, and then tying up the grouping at one end with a 3-foot light cord.

** Round lashings are more frequently used to very effectively extend Scout staves or smaller diameter spars.

*** In a square lashing, the wraps and fraps form a square. In a diagonal lashing the wrapping turns cross the poles diagonally. Both lashings can be used to join two poles together that cross each other from 45º to 90º.  It’s the square lashing that is used most because there is more contact between the rope and the poles, and hence it is stronger. A diagonal lashing is used when there is a need to close a gap between two spars or when they spring apart, in other words, when we want to bind poles together where they cross each other but do not touch. This most commonly occurs when the ends of the spars are already lashed in place in a structure, as in forming the X-brace of an H-Trestle.

PDF FILE for: Lashing INFORMATION

Double A-Frame Monkey Bridge

—> View Video of Bridge Construction

Assembly
Adjusting knots and lashings after the first test crossing.

The well-known, time-tested, traditional Monkey Bridge is perhaps the most familiar of all Scout pioneering projects. It’s frequently featured at Scout Expos, Camporees, Scout Camps, and is often a central attraction at public gatherings where Scouting is represented.

The following instructions and guidelines are provided by Adolph Peschke, taken from the 1993 edition of the Pioneering Merit Badge Pamphlet:

Link to: Older Pamphlet InfoUsing a double A-frame to build a monkey bridge is a departure from the usual X-frame that supports the foot rope and hand ropes. This new method has two distinct advantages over the X- frame version. First, the double A-frame provides a wider base making it less likely to tip over. The second advantage is that the positions of the A-frames can be adjusted so the span between the hand ropes can be narrowed for better balance as you make the crossing.

Building the A-frames. The first step in building the monkey bridge is to build four A-frames using the 8-foot spars for the two legs, and 6-foot spars for the ledger. Lay out the first set of three spars (two legs and one ledger) on the ground in position for lashing. Before lashing, drive three stakes, as follows, to help you make all four A-frames the same size: Drive a stake at the top to mark where the leg spars cross. Then drive stakes to mark the positions of where the bottom ledger crosses the legs. This will also indicate how far the legs are spread apart. Now you can lash the four A-frames together, laying them out one at a time using the stakes. Remember that all three lashings on the A-frames are square lashings, even though the spars cross at less than 90˚ angle.

Schematic of A-frame alignment

Double A-frame. When you have four A-frames, you can lash two of them together to form a double A-frame. (see figure 140). Lay one A-frame on the ground and then put another on top of it so that the bottom ledgers overlap one-half their length (approximately 3 feet). The first step in lashing the A-frames together is to go up where the two legs cross (the X formed by one leg from each A-frame). Then with a good tight square lashing, lash the two legs together.

Note: The point where these two legs are lashed together is where the foot rope will rest. You can adjust the overlap of the two A-frames to adjust how high the foot rope will be off the ground. Also note where the tops of the A-frames are, because this is where the hand ropes will be. To complete the double A-frame, stand it up so the butt ends of all four legs rest solidly on level ground. Lash the two bottom ledgers together where they overlap with three strop lashings. Now repeat the entire process to build the second double A-frame.

Laying out the distance between A-frames and anchors

Site preparation. Before you can erect the double A-frames, you need to prepare the site. Begin by stretching a length of binder twine along the center line of where the monkey bridge is to be built.  Working from the center, measure 10 feet toward each end to mark where the A-frames are to be placed. They should be 20 feet apart. Then mark out another 10′ from each A-frame to where the anchors are to be built.

Note: These dimensions are for building a bridge with a 20-foot span. This is the maximum span for a bridge using a 50-foot rope. The extra 30 feet of rope is needed to have 15 feet of rope at each end for the proper distance from the A-frames to the anchors (10 feet) and for the knots at the anchors (5 feet).

Build the anchors. The foot rope will be attached to anchors at both ends. Before erecting the double A-frames, build a 3-2-1 anchor, or a log and stake anchor, 10 feet from where the A-frames will be erected (see figure 141).

Rope grommet. After the anchors are built, attach a rope grommet with a ring or shackle in it. (You can make the rope grommet with a 10-foot length of 1/2-inch diameter polypropylene rope. Tie the ends together using a carrick bend, and permanently secure the ends with some strong twine).

Position the A-frames. Prepare to erect the monkey bridge by moving the A-frames into position no more than 20 feet apart. Lay them down on the binder twine that marks the center line of the bridge.

Hand and foot ropes. Now you can prepare the foot and hand ropes for the monkey bridge. Lay the foot rope in a straight line off to the side of where the A-frames are laying. Then lay the two hand ropes on the ground next to each other so they’re parallel to the foot rope and 42 inches away.

Stringer ropes. Now you can add the stringer ropes that will go from the foot rope to the hand ropes. Start by tying the center of an 8-foot long stringer rope (use 1/4-inch manila rope) at the center of the foot rope, using a clove hitch. The stringer rope is tied around the foot rope so that both ends are 4 feet long. Add two more stringer ropes on both sides of the center stringer rope (so there are five stringer ropes in all), tying them about 4 feet apart. Tie one end of each stringer rope to one of the hand ropes, again using a clove hitch. Then do the same with the other ends of the stringer ropes, attaching them to the other hand rope.

Assemble the bridge. You’re just about ready to assemble the bridge. First place a piece of heavy canvas (called a “saddle”) in the V formed by both double A-frames. This will protect the foot rope and allow it to slide a little in the V without interfering with the lashing rope.

Fig142
Schematic of foot, hand ropes and anchors

Now get the crew together to erect the bridge. You will need a safety officer to watch for any problems that might occur, and a signal caller to tell the crew members what to do. You will need two Scouts to lift and hold each double A-frame in place, two more Scouts to lift the foot rope into the V of the double A-frames, and two more Scouts to lift the two hand ropes into place at the tops of the A-frames. Lift everything into place. Then, holding the A-frames steady, temporarily tie the hand and foot ropes into the rings of the grommets using a roundturn and two half hitches (see figure 142).

Tighten the foot rope. Now you can put a strain on the foot rope. It’s not necessary to use block and tackle since this will put too much strain on the lashings, anchors, and the foot rope itself when there is a load on the bridge.* Whatever strain three or four Scouts can put on the foot rope by pulling it by hand will be enough. As soon as the bridge is used a few times, there will be a sag in the rope. This is fine because it means that you are working with reduced strain on the foot rope as a safety measure.

Tighten the hand ropes. Next, tie the hand ropes to the top ends of the A-frames. First, loosen one end at a time from the anchors. Then, use a clove hitch to tie the hand rope to the top end of the leg of the double A-frame. As you’re tying these clove hitches, adjust the strain on the sections of the hand ropes between the double A-frames to match the sag of the foot rope. Also, adjust the length of the stringer ropes so there is even strain between the foot rope and both hand ropes. After the hand ropes are tied to the tops of the A-frames, move down and retie the ends of the hand ropes to the rings in the grommets using a roundturn and two half hitches.

Final testing. With caution, one crew member can get on the bridge as all lashings, anchors, and knots are observed by the safety officer and all other crew members. Make adjustments as required. Then secure the running ends of the hand ropes and foot rope with a piece of cord. Safe operation calls for only one Scout to be on the foot rope of the monkey bridge at a time.

LIST OF MATERIALS FOR DOUBLE A-FRAME MONKEY BRIDGE

  • eight 4-inch x 8-foot A-frame legs
  • four 3-inch x 6-foot ledgers
  • fourteen 1/4-inch x 15-foot lashing ropes for Square Lashings
  • one 1/2-inch or 3/4-inch x 50-foot rope
  • two 1/2-inch x 50-foot hand ropes
  • five 1/4-inch x 8-foot stringer ropes
  • six 1/4-inch x 10-foot lashing ropes for Strop Lashings
  • six pioneering stakes for each 3-2-1 anchor
  • eight pioneering stakes for each log-and-stake anchor
  • one 5-inch x 4-foot spar for log-and-stake anchor
  • two 1/2-inch x 10-foot polypropylene ropes for rope grommets
  • two pieces of scrap canvas for foot rope saddle
  • binder twine for anchor tieback straps

* It has been found that a rope tackle in the foot rope at each end (not a block and tackle) tightened by one Scout is an excellent procedure to maintain the optimum foot rope tension, and an easy-to-use remedy for too much sagging due to repeated, heavy use and over stretching. There are other configurations used to initially tighten and keep the hand and foot ropes at the optimum tension during use, depending on the weight the bridge must withstand and the amount of traffic it will bear.

More Photos

2013 Jamboree Monkey Bridge Modified A-Frame Construction Photo Illustration

Single Pull Rope Tackle Monkey Bridge Configuration

PDF FILE  for: Double A-Frame Monkey Bridge
