Pioneering Program Curriculum III: Square Knot & Roundturn With Two Half Hitches

This is the third post in a series that will eventually comprise an activity-based, unit pioneering program curriculum.

SUPPORTING VIDEOS: How to Always Tie a Square Knot Right / How to Tie a Roundturn With Two Half Hitches

III A. In the BSA, the square knot is commonly referred to as a joining knot and tying it is a requirement to earn the Scout rank. However, the square knot (reef knot) is first and foremost a binding knot. For our purposes, its primary use will be to complete a Mark II Square Lashing.

III B. A roundturn with two half hitches is one of the basic knots that is very reliable for a number of uses in pioneering work. It is easy to tie and untie and does not reduce the strength of the rope due to sharp turns when under a hard pull.

OBJECTIVES

  • Scouts will show they understand the square knot is used as a binding knot and will demonstrate they can always tie it (instead of a granny knot) by relying solely on the appearance of the first overhand knot. Refer to Foolproof Way to ALWAYS Tie a Square Knot Right.
  • Scouts will demonstrate how a roundturn can be used to temporarily hold the strain on a rope.
  • Scouts will demonstrate they can tie two half hitches around the standing part of a rope and draw them up tight against a roundturn.

MATERIALS

  • 3-foot length of 3/16 or 1/4-inch braided nylon or polyester cord for each Scout
  • Length of  1/2-inch nylon or polyester cord and a vertical pole or tree, to serve as a large visual aid
  • Sturdy horizontal pole, lashed between two trees or anchored uprights about 3-1/2 feet  off the ground
  • One 15-foot x 1/4-inch  manila lashing rope for every two Scouts

PROCEDURE A

Standing End on Top, Standing End on Bottom
Standing End on Top, Standing End on Bottom
  1. Utilizing the 1/2-inch cord and vertical pole or tree, the instructor demonstrates how a square knot is used to secure a line or rope directly around an object.
  2. While tying an overhand knot (half knot) around the pole, the instructor explains how it’s always possible to know how to tie the second overhand knot just by looking at the first. This can be illustrated by positioning the two running ends so they are perpendicular to the standing part wrapped around the pole, (see Illustration 1) It’s pointed out that one running end is on the bottom and the other is on the top. When bringing the ends together to tie the second overhand knot, the end on the bottom should stay on the bottom and the end on top should stay on the top, and then the second overhand knot can be tied to form the square knot correctly 100% of the time. This is demonstrated by the instructor!
  3. Using their 3-foot cord, Scouts tie an overhand knot around their thigh, and then position the two ends so they lie at right angles to the part wrapped around their thigh. They then practice carrying the bottom and top ends together to form a square knot.
  4. Scouts bring their 3-foot cords to the horizontal pole(s) and each ties an overhand knot around the pole. When all the overhand knots are in place, they back away and change places with another Scout. The “new” overhand knot is interpreted, and relying only on its appearance, Scouts complete the square knot.
Finishing a Square Knot from an Overhand Knot with the Left Running End on the Bottom and the Right Running End on Top
Finishing a Square Knot By Relying Solely on the Appearance of the First Overhand Knot

5. Alternating the position of the running ends of overhand knots tied around the horizontal pole, races are run between individuals to determine that the ability to rely only on the appearance of the initial overhand knot has been mastered. Reviews are conducted as necessary.

Finishing a Square Knot from an Overhand Knot with the Left Running End on Top and the Right Running End on the Bottom
Finishing a Square Knot By Relying Solely on the Appearance of the First Overhand Knot

PROCEDURE B

1. The instructor wraps the 1/2-inch cord around the horizontal pole forming a roundturn. He explains that a roundturn goes around the pole twice, and when maintaining a grip on                                                                 the running end, a good deal of stress can be held because of the friction around the pole created by the roundturn.

Holding the strain on the standing part in the left hand, and with the running end, starting a roundturn around the pole, continuing to hold the strain on the standing part while forming a complete roundturn around the pole, and letting go of the standing part continuing to hold the strain with only the running end.
Applying a Roundturn to a Horizontal Pole

2. The instructor ties a  half hitch around the standing part of the rope and cinches it up to the roundturn on the pole.
3. The instructor ties a second half hitch around the standing part and cinches that up to the first. He explains that these two half hitches have formed a clove hitch around the standing part and the knot is often called two half hitches. He further explains that when two half hitches are tied like this after a roundturn, the knot is called a roundturn with two half hitches and, as will be seen later, is often used on guylines and anchor points when building a pioneering structure.

Tying the first half hitch around the standing part, cinching the first half hitch up to the roundturn and tying the second half hitch around the standing part, you get a completed roundturn with two half hitches.
Adding Two Half Hitches to the Roundturn

4. The class is divided into twos. The first Scout holds the end of the 15-foot rope and stands about 12 feet away from the horizontal pole. The second Scout goes to the pole and with the other end of the rope applies a roundturn, while the first gives the rope some tension with a slight, steady pull. When the roundturn is completed, the second Scout lets go of the standing part and with one hand grabbing the running end, he holds the strain still applied by the first Scout. He then adds two half hitches. When the roundturn with two half hitches is tied, the second Scout lets go of the rope entirely. The two Scouts switch so that everyone in the class can demonstrate they are comfortable tying the knot.

INTERPATROL ACTIVITY: Flagpole Race

PIONEERING CURRICULUM: MAIN PAGE

Scout Meeting Challenge: Flagpole Race

VIEW VIDEO: Simple Flagpole Raising Demonstration

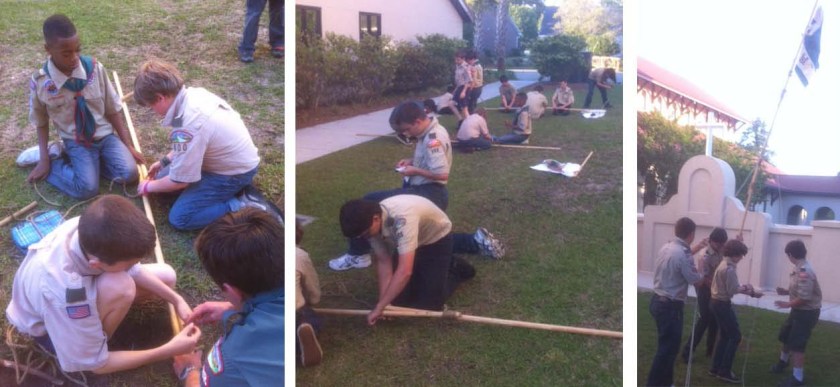

Put it together, lift it up, and tie it down!
Put it together, lift it up, and tie it down!

Several campcraft skills come into play in order to successfully complete this Simple Flagpole challenge. Each patrol flies their patrol flag from a 14′ flagpole they construct using the following materials:

  • four Scout Staves (or 3 Scout Staves if their patrol flag is already tied to a 5′ pole)
  • six 6-foot x 1/4-inch lashing ropes
  • three 15-foot dining fly guylines
  • three long stakes
  • one mallet

On signal, each patrol flies their flag by:

  1. joining the staves together with round lashings
  2. attaching the three guylines about 3/4 the way up from the bottom with  roundturns with two half hitches or rolling hitches
  3. hammering in the three stakes forming an equilateral triangle
  4. tying the guylines at the stakes with taut-line hitches
  5. adjusting the tension on the lines to securely hold their flagpole in a vertical position

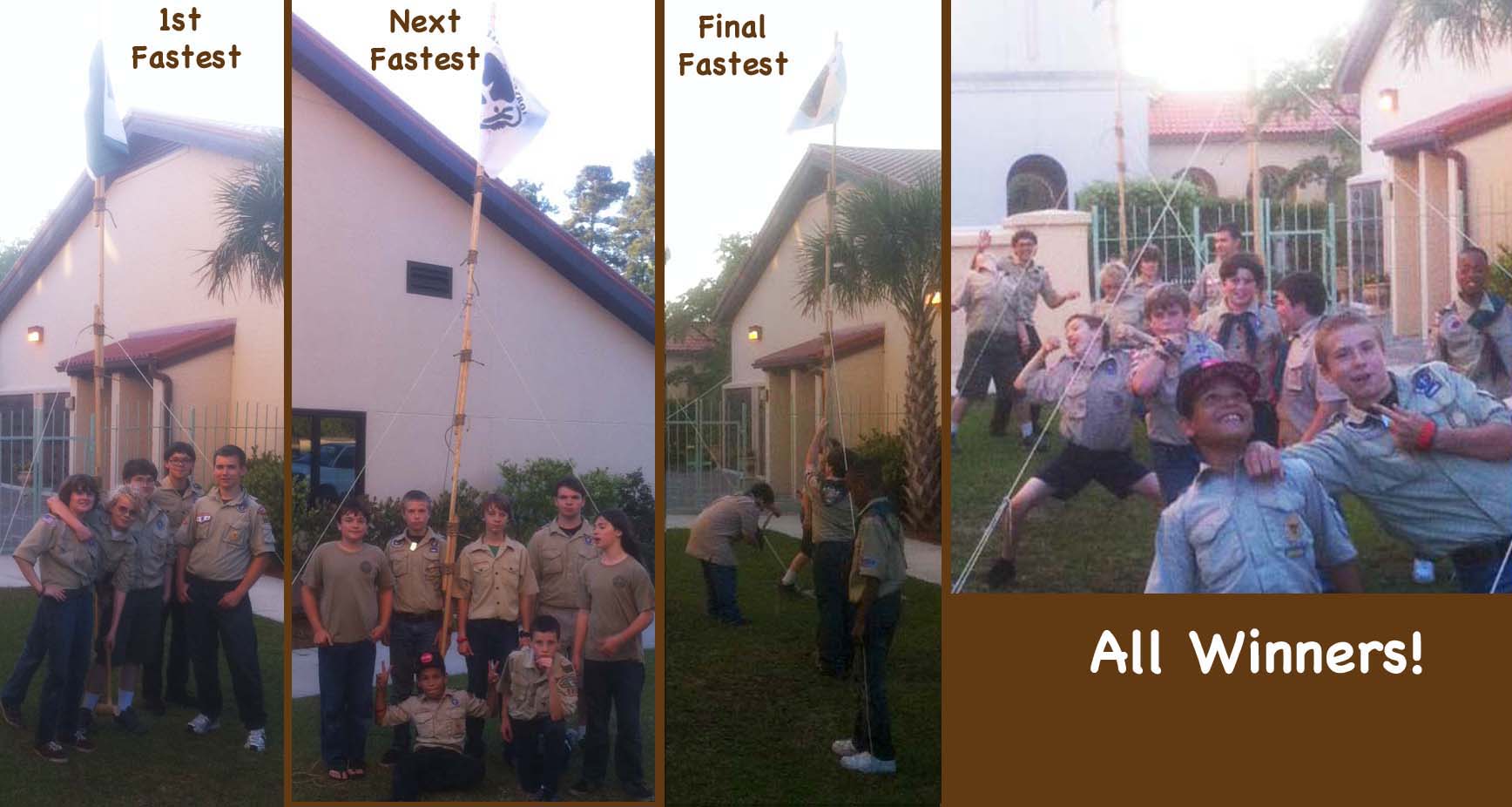

Patrol Flags Flying!
Patrol Flags Flying!

SCOUT MEETING CHALLENGES MAIN PAGE

14′ Gateway Tower (4 Flag Tower)

Coker Four Flags
Gateway to the Boy Scout Camp Pioneering Area

Using the 14′ Double Ladder Signal Tower as a point of reference, here are the plans for a very tall campsite gateway that stands out (and up) and serves as an impressive feat of Scout engineering. One of the perks included in this project is it provides an opportunity for new Scouts to experience hoisting a “boy-sized” structure replete with their own special colors e.g. their patrol flags.

Since this 14-foot structure isn’t climbed on, the spars can be considerably thinner in diameter. Bamboo is ideal. Lashing on those flags attached to each corner creates a spectacular effect and hence the name “4 Flag Tower!”

14′ Tower Gateway Schematic / Gateway to a Scout Expo Photo

Note: This design is not self-standing. Therefore, using it as a gateway at a camporee or Scout Expo with the necessary guylines requires an area wide and deep enough to accommodate a 16 x 16-foot space.

Scouts lash together a 4' Side.
Scouts lash together a 4′ Side.

Materials Needed:

  • four 2-1/2 to 3-inch x 14-foot leg spars
  • six 2-inch x 8-foot X-brace spars
  • four 2-inch x 6-foot X-brace spars
  • four 2-inch x 6-foot support spars
  • six 2-inch x 4-foot leg spreader
  • forty-five 15-foot x 1/4-inch lashing ropes
  • four 25-foot guylines
  • eight 24-inch pioneering stakes

Assemble the 4-foot sides. Begin by laying out two pairs of 14-foot spars for the tower legs, side by side, 3 and 1/2 feet apart. Be sure the butt ends are even at the bottom so the tower will stand up straight.

NOTE: All lashings need to be very tight.

Diagram 1
Diagram 1

Lash the legs together starting with a 4-foot bottom leg spreader about 6 inches up from the butt ends. Lash on a 4-foot middle leg spreader in the middle of the 14-foot legs (7 feet up), and a 4-foot top spreader about 3 inches from the top of the 14-foot legs.

When the legs are joined with the three 4-foot spreaders, lash on two 6-foot X-brace spars using square lashings to lash the ends to the legs, and a diagonal lashing where they cross, forming a trestle in the bottom half of the legs (see diagram 1). Three of the ends are lashed to the outside of the legs, and one on the inside, so that a slight gap is created where they cross. As the diagonal lashing begins, this gap will be cinched together with the timber hitch. Repeat the whole process with the other two 14-foot legs.

Diagram 2
Diagram 2

Join the 4-foot sides. Turn both sides up horizontally, parallel to one another about 5 and 1/2 feet apart. Make sure the bottoms are even.

Lash on one of the 6-foot support spars directly above the 4-foot middle spreader (see diagram 2).

Lash another one of the 6-foot support spars directly under the 4-foot side spreader at the very top.

Lashing the X Braces with a Diagonal Lashing.
Lashing the X Braces with a Diagonal Lashing.

Now, lash on two of the 8-foot X brace spars diagonally between the two 6-foot supports using square lashings to lash the ends to the legs, and a diagonal lashing where they cross forming a trestle in the top part of the wide (6-foot) side (see diagram 2). Three of the ends are lashed to the outside of the legs, and one on the inside, so that a slight gap is created where they cross. As the diagonal lashing begins, this gap will be sprung together with the timber hitch.

Lash the other side. To make the lashings on the other side, you have to get the whole crew together to carefully lift and roll the tower over 180° so that it’s laying on the X-brace, and the other sides of the 4-foot sides are easier to get to.

Repeat the same procedure as before.

Scouts carefully lift the structure and rotatie it 180° to lash the other side.
Scouts carefully lift the structure and rotatie it 180° to lash the other side.

Lash on the middle X-brace.  This X-brace is what will keep the four sides from racking. Lash the two remaining 8-foot X brace spars diagonally across the legs just under the 4-foot middle leg spreader (see Tower Gateway Schematic on the top of this page). Use square lashings to lash them to the legs and a diagonal lashing where they cross. To accomplish this, some crew members will have to hold up the top of the tower so that  there is better access to all four ends of the 8′ X brace spars.

Lash on the flags. If you want a flag or flags to fly from the top of the tower, lash the flagpole(s) to the top of each tower legs using a couple of tight round lashings.

Tower Gateway Layout
Tower Gateway Layout

Anchors and guylines. When all the lashings are done, move the tower to where it will be hoisted. Before actually hoisting the tower, lay out the position of the four legs on the ground.  Then determine where the four anchors for the guylines will be placed to steady the legs of the tower.

Using the pioneering stakes, build four 1-1 anchors. Each should extend 16 feet, 45° out from the leg.

Attach the four guylines to the legs about 12″ above the middle 4′ spreaders with a roundturn with two half hitches.

NOTE: Make sure the flags are unfurled before hoisting the tower.

Hoisting the tower. You’ll need a whole crew to do the hoisting. Get ready to hoist the tower by delegating the following:

  1. One signal caller who tells the crew members when and how fast to pull on the ropes.
  2. One safety officer who observes for all safety considerations and signs of trouble during the hoisting.
  3. Four Scouts to serve as “Lifters” to lift the top 6′ support spar that’s on the ground. Their job is to first left and then push the tower up.
  4. Two Scouts, one on each of the 2 guylines attached to the legs, to make sure the tower isn’t over pulled and topples over
  5. Four “Pullers” who will use the two guylines as hoisting ropes to pull the tower until it is standing
We did it!
We did it!

When everyone is in position, the signal caller should direct the Scouts on the hoisting ropes (the pullers) to hoist the tower into position, while the lifters start lifting. Care should be exercised not to over pull the tower.

As soon as the tower is standing, four Scouts should temporarily tie the guylines to the anchors using a roundturn with two half hitches.

Heeling the tower. If the tower is uneven, you can heel the the butt ends of the legs 4 to 6 inches deep as needed to make it more level.

Tighten the guylines. As soon as the tower is in position, go to each of the anchors and untie the Roundturn with Two Half Hitches and replace it with a rope tackle. Use the rope tackles to hold the tower steady, by gradually applying strain to each of the four guylines at the same time. Do this by tying a butterfly knot in each guyline about 6 to 8 feet from the anchor. Then wrap the running end of the guyline around the forward stake of the anchor and back through the loop in the butterfly knot. When rope tackles are tied to all four anchors, gradually tighten the lines. Apply enough strain to each of the guylines to hold the tower firm and in a vertical position. Then tie off the rope tackles and secure the running ends with half hitches.

Hoisting a Larger Version: 17' high x 8' wide x 6' deep
Hoisting a Larger Version: 17′ high x 8′ wide x 6′ deep

Favorite Pioneering Knots: Roundturn with Two Half Hitches

VIEW VIDEO: How to tie a Roundturn with Two Half Hitches

Roundturn with Two Half Hitches

The following text is by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

This is one of the basic knots that is very reliable for a number of uses in pioneering work. It is easy to tie and untie and does not reduce the strength of the rope due to sharp turns when under a hard pull.

You start by making a roundturn. This provides extra surface around the spar when chafing or slipping might be a problem. Once you’ve made the roundturn, the rope has a grip on whatever it’s around (see 1). The strain on the rope can then be adjusted before finishing off with two half hitches (see 2 and 3).

The knot is well suited for both ends of a guyline. When it is used in a place where you will not have easy access, as at the top of a tower, secure the running end, (after the two half hitches are tied) with a piece of light cord.

It can be tied in the middle of a long rope by making a long bight with enough rope to make two half hitches after the roundturn.

1, 2, and 3 (below) illustrate the half hitches tied loosely. In actual use both half hitches are pulled up tight.

Tying a Roundturn with Two Half Hitches
  1. To make the knot, start by making a roundturn over a spar.
  2. Next, make a half hitch around the standing part of the rope. Then make another half hitch.
  3. When both half hitches are made, pull them tight, and secure the ends with a small cord.

PIONEERING USES

  • At both ends of large hand and foot ropes for a monkey bridge. Be sure to secure the running ends with a light cord.
  • When wear is a factor when tied to an iron ring.
  • For guylines because it does not jam, and is easy to untie when adjustments are needed.
Tying a Roundturn with Two Half Hitches
Tying a Roundturn with Two Half Hitches

Simple Flagpoles

During the gathering period, a flagpole is lashed together using four Scout staves. A carabiner is tied to the top, a halyard is strung through, and the pole is lifted and secured with three guy lines. The flag is raised as part of the troop's opening ceremony.
Flagpole using 5 Scout Staves  erected for the Troop Meeting’s Opening Ceremony

Flags engender pride! Flying ’em high is great for Scout spirit, and making a flagpole is really easy. All you need are straight sticks (Scout Staves work great), rope for round lashings, rope for guylines, and three stakes.

View Video: Raising a Simple Flagpole Demonstration

Scout Stave Flagpole with a Halyard in the Pioneering Village at the 2017 National Jamboree

The key to making a simple flagpole out of shorter poles is round lashings and knowing where to tie them. The space where the two poles are joined, gets two tight round lashings—one on either side of the overlap and right near the ends of each pole. The length and thickness of the poles being lashed together will determine how much they need to overlap, and how many tight wraps need to be taken. Using 5-foot Scout Staves, you can simply overlap them about 10 inches with a couple of 6-foot lashing ropes. With practice, a Scout patrol can make a   15-foot flagpole out of four Scout staves in a few short minutes.

15-Foot Scout Stave Flagpole without a Halyard

The key to lifting and securing a simple flagpole is tying on three guylines about 3/4 of the way up, and extending them out equidistant from one another. The stakes should form an equilateral triangle, and should ideally be hammered in a distance away from the flagpole of at least twice the height of where they’re tied. So, if the flagpole is 15 feet, and the guylines are attached 11 feet up, the stakes should be 22 feet from the pole for optimum stability. NOTE: Under many circumstances, this distance can be much shorter and still provide the support to hold the flag up, even during lengthy periods of use.

Quick Lash and Attach
Quick Lash and Attach

While the flagpole is being lashed together, a Scout or Scouts can be putting the stakes in the ground, pacing out the proper distance and hammering them in to form that equilateral triangle.

Before raising the pole, the three guylines should be tied at about 3/4 the way up using roundturns with two half hitches or rolling hitches. Then when the flagpole is being held erect, three Scouts can each take a guyline and attach it to a stake with a tight taut-line hitch, or for taller, heavier flagpoles, a rope tackle.

If the flag is not to be ceremoniously raised and lowered, or with shorter flagpoles, a halyard is not necessary.

Easy Tall Flagpole
