The Hourglass Tower at the Jamboree

Hourglass a.k.a. Pyramid Tower, erected next to the Camp Gadget / Skills Instruction area.
Hourglass Tower Display
Hourglass Tower Display: Rope Ladder Side

The Hourglass Tower in the 2013 National Jamboree Pioneering Area was set up as one of four tower displays.

“The Hourglass Tower is something of a classic for Scout pioneering. John Sweet’s excellent book Scout Pioneering describes it, and since then many Scout troops have built one.” (Read: Erecting an Hourglass Tower in Ropes and Poles.)

“The tower is constructed from two large pyramids interlocked together.” (Read: Hourglass Tower in Poneering Made Easy.)

As an interesting side note: by employing rope tackles in each of the lines marrying the two tripods, effectively tightening the connections was very easy to accomplish.

PIONEERING AREA: TOWERS

JAMBOREE PIONEERING AREA: MAIN PAGE

Prestressed Triple Walkway Bridge

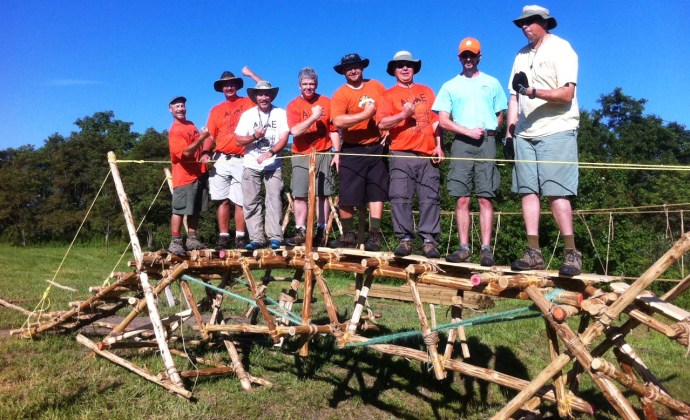

STRONG Bridge!
STRONG Bridge!

For information, contact: Albert Crowsky, 847-809-4593

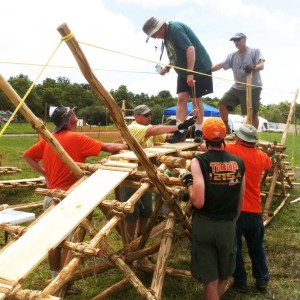

Sound engineering, deliberations, and a dose of creative improvisation entered into the picture during the building process.
Sound engineering, deliberations, and a dose of creative improvisation entered into the picture during the building process.
The finished bridge is decorated with pennants.
The finished bridge is decorated with pennants.

JAMBOREE PIONEERING AREA: BRIDGES

JAMBOREE PIONEERING AREA: MAIN PAGE

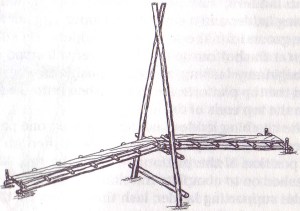

Single A-Frame Bridge Pictorial

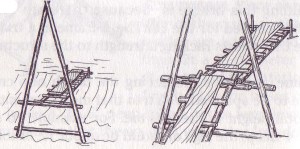

The Single A-Frame Bridge is made up of three subassemblies. Please refer to Bridge Walkways as a point of reference for two of the three of these subassemblies. The following photos will enliven the text and instructions featured in Adolph Peschke’s informative, older pioneering merit badge pamphlet. Click on the photos for larger views:

Lashing the top of the legs with a two pole shear lashing. Lashing on the ledger to the bottom of the legs. Lashing on the transom at the desired distance from the butt ends of the legs. All square lashings are lashed tightly, especially on the transom.
Captured from the 2013 Jamboree Pioneering Area
Carry the assembled A-Frame to the creek or ravine. Standup the A-Frame in the desired position. Carry over the walkways and place them on the A-Frame’s transom. Connect the underspars of the walkways to  the transom with three strop lashings.
Captured from the 2013 Jamboree Pioneering Area

Single A-Frame Bridge Materials and Instructions

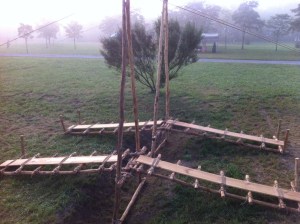

Single A-Frame Bridges at the Jamboree

Single A-Frame Bridges at the Jamboree

A triumphant success—posing on their Single A-Frame Bridge
A Triumphant Success—posing on their Single A-Frame Bridge

In the Pioneering Area of the 2013 national jamboree, we put together a couple of Single A-Frame Bridge kits, so Scouts and Venturers could build this simple crossing bridge during their visit to Garden Ground Mountain. Each kit included:

  • two pre-constructed walkways
  • two 12-foot leg spars (shear legs)
  • one  5-foot transom spar
  • one 6-foot ledger spar
  • two pre-positioned anchors
  • four pioneering stakes
  • two guylines
  • five lashing ropes

Whenever a crew wanted to build a bridge, we provided an overview of the design and gave them a quick introduction to tying a rope tackle and the Japanese Mark II Square LashingWhat follows are some photo montages of the Single A-Frame bridges built from the kits during the jamboree. For larger and largest views, click on the photos once, and then once again:

Positioning their A-Frame in the ditch while preparing the guylines, and lashing the walkways to the transom.
Positioning their A-Frame in the ditch while preparing the guylines, and lashing the walkways to the transom.
Lashing the ledger tightly to the legs and putting tension  on a guyline.
Lashing the transom to the legs and putting tension on a guyline.
Positioning their A-Frame and hammering stakes in the corners of the walkways.
Lashing on the Transom
Lashing on the transom to the legs.
Lashing on the ledger and holding the A-Frame up while adjusting the height of the transom.
Lashing on the ledger and holding the A-Frame up while adjusting the height of the transom.
The shear lashing at the top of the legs, and lashing the ledger at the bottom.
The Shear Lashing at the top of the legs, and lashing the ledger at the bottom.
Lashing the A-Frame legs with a shear lashing, and lashing on the ledger.
Lashing the A-Frame legs with a Shear Lashing, and lashing on the transom.
Carrying their A-Frame to the ditch and placing the walkways on the transom.
Carrying their A-Frame to the ditch and placing the walkways on the transom.
Lashing on the transom and attaching the walkways.
Lashing on the transom and attaching the walkways.
Tightly frapping a square lashing for the transom and working together to join the walkways to the A-Frame.
Tightly frapping a Square Lashing for the transom and working together to join the walkways to the A-Frame.
Strop lashing the walkways to their A-Frame.
Strop lashing the walkways to their A-Frame.

On occasion, a pair of Scouts wanted to build a bridge, and with persistence, and the help of staff or friendly Scouter, they were able to get it done.

Dynamic Duos!
Dynamic Duos!

JAMBOREE PIONEERING AREA: BRIDGES

JAMBOREE PIONEERING AREA: MAIN PAGE

Related article



Single Trestle Bridge: Photos & Commentary

Summer Camp Pionneering Merit Badge Class: Single Trestle Bridge Over a Shallow Creek
Camp Coker Pioneering Merit Badge Class: Single Trestle Bridge Over a Shallow Creek

CLICK HERE FOR SINGLE TRESTLE BRIDGE PROCEDURE, MATERIALS, AND INFORMATION.

Positioning the Trestle / Lashing the Walkway Underpars to the Trestle Transom
Positioning the Trestle and Lashing both Walkway Underpars to the Trestle Transom
Driving in the Pioneering Stakes / Lashing the Walkways to the Stakes
Driving in the Pioneering Stakes / Lashing the Walkways to the Stakes
Lashing the First and the Third Handrails to the Trestle Legs
Lashing the Handrails to the Trestle Legs
Single Trestle Built Over a Shallow Creek at Camp Coker, Society Hill SC
Single Trestle Bridge Built Over a Shallow Creek at Camp Coker, Society Hill, SC

CLICK HERE FOR SINGLE TRESTLE BRIDGE PROCEDURE, MATERIALS, AND INFORMATION.



Single Lock Bridge: Photos & Commentary

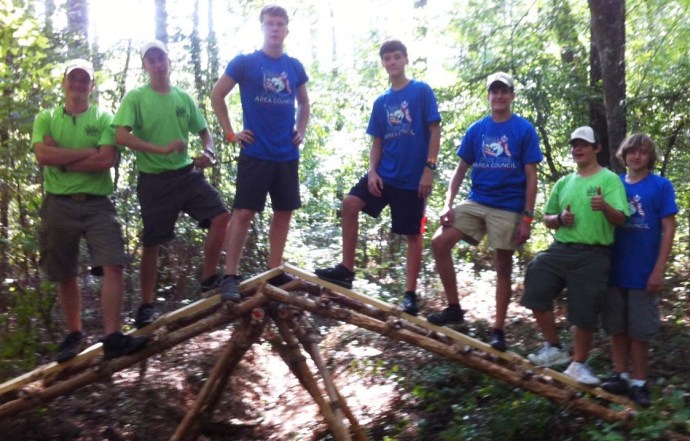

Single Lock Bridge, Camp Coker, Society Hill
Single Lock Bridge, Camp Coker, Society Hill

This fundamental trestle bridge design yields a solid structure. With Adolph Peschke’s text as the main point of reference, under the following photos there are some guidelines that will help in its successful construction:

Building the Trestles and Walkways
Building the Trestles and Walkways

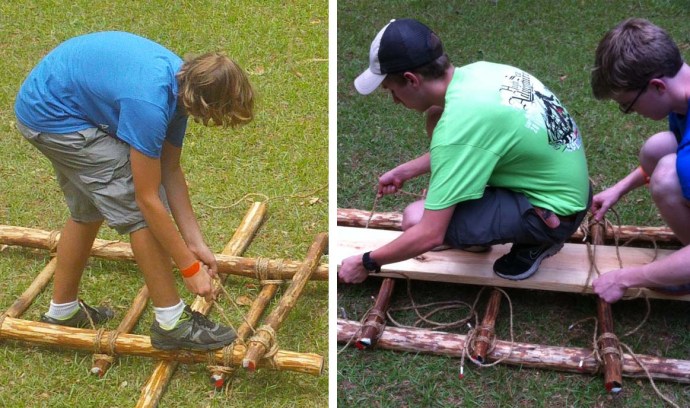

Unerspar and Plank
Lashing on the Walkway Underspar and Plank

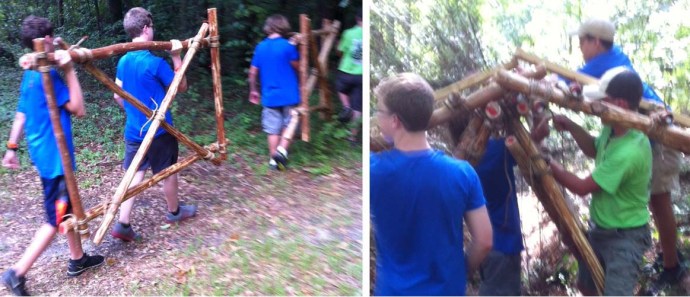

Carry and Strop
Transporting the Subassemblies to the Ravine and Attaching the Walkways to the Trestles
  • When using the length of spars in the list of materials, choose a ravine or stream that is at least wide enough to assure the interlocking trestles can be spread at a distance that will allow the formation of a comfortable angle of just about 45°.
  • Make it a priority to lash the top ledgers as low as necessary to assure they will end up about 1 foot above the level of the banks. Whatever the height, they need to be at least 6 inches from the end of the trestle legs, so when the trestles interlock, the “V” that is formed on each side is deep enough to rest the 3 inch-diameter transom in between.
  • The bottom ledgers need to be lashed at least 6 inches up from the butt ends of the trestle legs to assure there’s enough leg to heel in as necessary when it comes time to even the transom and add stability.

Pioneering Bridges and the Saga of the Bridge of Fifteen Nations

SINGLE LOCK BRIDGE INSTRUCTIONS

Summer Camp Promotion

Easy Tall Flagpole

At most Scouting events, there isn’t a permanently-installed, tall, metal pole for raising and lowering the colors. During opening ceremonies at these Scout gatherings, a tall flagpole made by joining long spars together can impress and inspire.

Opening Ceremony at a District Camporee
Opening Ceremony at a District Camporee

What is meant by tall? Naturally, the height of the flagpole depends on the size of the flag and the size of the area where it will be raised. For the most part, the flags used in Scouting are 3 x 5 feet, and the average size outdoor flagpole for a 3 x 5-foot flag is 20 feet. Of course, the main criteria for flagpole height is how far away you want the flag to be seen. But also, flying a flag high is synonymous with pride, and the taller the pole the greater the impact. However, this post is about a simple flagpole and not a pioneering display of goliath proportions. The specific flagpole featured on this page topped out at 32 feet, which was impressive, but not uncanny.

Building and putting up a taller flagpole requires more attention than one for an easy campsite setup, but all in all it’s still a relatively simple operation. Basically, four things are needed:

  1. Long spars
  2. An effective way to join the spars together so the flagpole will be rigid
  3. A series of planned steps to take before standing the flagpole up *
  4. A crew to lift the flagpole to its vertical position

Long spars. Depending on your point of reference, the definition of long spars is relative, and will hinge on what’s available in your geographic area and how practical it is to procure and transport them. Naturally, the longer the spars the fewer you’ll need to make the pole tall, which of course has obvious advantages. Again, depending on your point of reference, a long spar can be seen as having a length anywhere from 10 to 20 feet.

Tall View
Simple, Tall, Pioneering Flagpole

In the flagpole featured on this page, there are three long spars: 16-foot bottom, 14-foot middle, and 10-foot top. The lower the spar, the larger the diameter. The butt end of the next spar up should be as near to the same diameter as possible to the top of the one it’s joining.

West Country Round Lashing Joining Two Bamboo Spars

An effective way to join the spars together so the flagpole will be rigid. Obviously, the rigidity of the flagpole is a primary concern. You don’t want it to bend and  you don’t want it to come apart. It has to ever-withstand the stress of its own weight in a vertical position, as well as the weakening forces of wind, rain, and varying temperatures. When it comes to joining spars together to extend their length, there are basically four lashings that can be employed. For the tightest and most secure lashing, the West Country Round Lashing works really very well.

When the utmost rigidity is required, a quarter of the spars’ lengths should overlap each other. Using long lengths of 1/4-inch manila rope, start each of the two lashings approximately 1-1/2 to 2 inches from the ends of the overlapping spars and tie at least ten tight half knots (overhand knots) towards the middle of the overlap. Depending on the length of the lashing rope and the size of the spars, for added security, additional lashings can be tied e.g. in the photo to the left, where the bottom spar and the middle spar overlap, four West Country Round Lashings were applied.

* A series of planned steps to take before standing the flagpole up. Before transforming the finished flagpole from horizontal to vertical, these steps need to be taken:

  1. Determine the spot on the ground where the flagpole will stand and dig a hole about 4 inches deep with a diameter just a little larger than that of the flagpole’s butt end.
  2. Position the flagpole so the bottom is right over the hole.
  3. To attach the rope halyard, tie a small rope grommet and pulley to the top of the flagpole with a prusik.
  4. Reave the prepared rope halyard through the tackle.
  5. Attach four guylines of the  proper length (see: Guylines.) Tie the guylines to the flagpole about 3/4 up the pole with four rolling hitches. Tie them on so they will each line out to their respective anchors.
  6. Measure out the proper distance from the bottom of the flagpole in four perpendicular directions and mark the spots where the front pioneering stake will be driven into the ground for each 1-1 anchor. The rule of thumb is drive in the stakes at a distance equal to twice the height from where the knots were tied, measured out from the base of the flagpole.

  7. Build four 1-1 anchors in readiness for attaching the four guylines.

A crew to lift the flagpole to its vertical position. When ready, four crew members each take hold of a guyline and position themselves in line with their respective anchors. Additional crew members line up along the length of the flagpole ready to walk the pole up to its vertical position. One member is stationed at the bottom to guide the pole into the hole as the others lift. When everyone is in position, a signal caller gives the go ahead to lift. Those with the guylines pass the ends of their lines behind the front stake of their anchor. Once the flagpole is standing upright, each guyline is secured to its anchor with a rope tackle. Final adjustments can then be made to each guyline until the pole is standing straight.

SaveSave

14′ Gateway Tower (4 Flag Tower)

Coker Four Flags
Gateway to the Boy Scout Camp Pioneering Area

Using the 14′ Double Ladder Signal Tower as a point of reference, here are the plans for a very tall campsite gateway that stands out (and up) and serves as an impressive feat of Scout engineering. One of the perks included in this project is it provides an opportunity for new Scouts to experience hoisting a “boy-sized” structure replete with their own special colors e.g. their patrol flags.

Since this 14-foot structure isn’t climbed on, the spars can be considerably thinner in diameter. Bamboo is ideal. Lashing on those flags attached to each corner creates a spectacular effect and hence the name “4 Flag Tower!”

14′ Tower Gateway Schematic / Gateway to a Scout Expo Photo

Note: This design is not self-standing. Therefore, using it as a gateway at a camporee or Scout Expo with the necessary guylines requires an area wide and deep enough to accommodate a 16 x 16-foot space.

Scouts lash together a 4' Side.
Scouts lash together a 4′ Side.

Materials Needed:

  • four 2-1/2 to 3-inch x 14-foot leg spars
  • six 2-inch x 8-foot X-brace spars
  • four 2-inch x 6-foot X-brace spars
  • four 2-inch x 6-foot support spars
  • six 2-inch x 4-foot leg spreader
  • forty-five 15-foot x 1/4-inch lashing ropes
  • four 25-foot guylines
  • eight 24-inch pioneering stakes

Assemble the 4-foot sides. Begin by laying out two pairs of 14-foot spars for the tower legs, side by side, 3 and 1/2 feet apart. Be sure the butt ends are even at the bottom so the tower will stand up straight.

NOTE: All lashings need to be very tight.

Diagram 1
Diagram 1

Lash the legs together starting with a 4-foot bottom leg spreader about 6 inches up from the butt ends. Lash on a 4-foot middle leg spreader in the middle of the 14-foot legs (7 feet up), and a 4-foot top spreader about 3 inches from the top of the 14-foot legs.

When the legs are joined with the three 4-foot spreaders, lash on two 6-foot X-brace spars using square lashings to lash the ends to the legs, and a diagonal lashing where they cross, forming a trestle in the bottom half of the legs (see diagram 1). Three of the ends are lashed to the outside of the legs, and one on the inside, so that a slight gap is created where they cross. As the diagonal lashing begins, this gap will be cinched together with the timber hitch. Repeat the whole process with the other two 14-foot legs.

Diagram 2
Diagram 2

Join the 4-foot sides. Turn both sides up horizontally, parallel to one another about 5 and 1/2 feet apart. Make sure the bottoms are even.

Lash on one of the 6-foot support spars directly above the 4-foot middle spreader (see diagram 2).

Lash another one of the 6-foot support spars directly under the 4-foot side spreader at the very top.

Lashing the X Braces with a Diagonal Lashing.
Lashing the X Braces with a Diagonal Lashing.

Now, lash on two of the 8-foot X brace spars diagonally between the two 6-foot supports using square lashings to lash the ends to the legs, and a diagonal lashing where they cross forming a trestle in the top part of the wide (6-foot) side (see diagram 2). Three of the ends are lashed to the outside of the legs, and one on the inside, so that a slight gap is created where they cross. As the diagonal lashing begins, this gap will be sprung together with the timber hitch.

Lash the other side. To make the lashings on the other side, you have to get the whole crew together to carefully lift and roll the tower over 180° so that it’s laying on the X-brace, and the other sides of the 4-foot sides are easier to get to.

Repeat the same procedure as before.

Scouts carefully lift the structure and rotatie it 180° to lash the other side.
Scouts carefully lift the structure and rotatie it 180° to lash the other side.

Lash on the middle X-brace.  This X-brace is what will keep the four sides from racking. Lash the two remaining 8-foot X brace spars diagonally across the legs just under the 4-foot middle leg spreader (see Tower Gateway Schematic on the top of this page). Use square lashings to lash them to the legs and a diagonal lashing where they cross. To accomplish this, some crew members will have to hold up the top of the tower so that  there is better access to all four ends of the 8′ X brace spars.

Lash on the flags. If you want a flag or flags to fly from the top of the tower, lash the flagpole(s) to the top of each tower legs using a couple of tight round lashings.

Tower Gateway Layout
Tower Gateway Layout

Anchors and guylines. When all the lashings are done, move the tower to where it will be hoisted. Before actually hoisting the tower, lay out the position of the four legs on the ground.  Then determine where the four anchors for the guylines will be placed to steady the legs of the tower.

Using the pioneering stakes, build four 1-1 anchors. Each should extend 16 feet, 45° out from the leg.

Attach the four guylines to the legs about 12″ above the middle 4′ spreaders with a roundturn with two half hitches.

NOTE: Make sure the flags are unfurled before hoisting the tower.

Hoisting the tower. You’ll need a whole crew to do the hoisting. Get ready to hoist the tower by delegating the following:

  1. One signal caller who tells the crew members when and how fast to pull on the ropes.
  2. One safety officer who observes for all safety considerations and signs of trouble during the hoisting.
  3. Four Scouts to serve as “Lifters” to lift the top 6′ support spar that’s on the ground. Their job is to first left and then push the tower up.
  4. Two Scouts, one on each of the 2 guylines attached to the legs, to make sure the tower isn’t over pulled and topples over
  5. Four “Pullers” who will use the two guylines as hoisting ropes to pull the tower until it is standing
We did it!
We did it!

When everyone is in position, the signal caller should direct the Scouts on the hoisting ropes (the pullers) to hoist the tower into position, while the lifters start lifting. Care should be exercised not to over pull the tower.

As soon as the tower is standing, four Scouts should temporarily tie the guylines to the anchors using a roundturn with two half hitches.

Heeling the tower. If the tower is uneven, you can heel the the butt ends of the legs 4 to 6 inches deep as needed to make it more level.

Tighten the guylines. As soon as the tower is in position, go to each of the anchors and untie the Roundturn with Two Half Hitches and replace it with a rope tackle. Use the rope tackles to hold the tower steady, by gradually applying strain to each of the four guylines at the same time. Do this by tying a butterfly knot in each guyline about 6 to 8 feet from the anchor. Then wrap the running end of the guyline around the forward stake of the anchor and back through the loop in the butterfly knot. When rope tackles are tied to all four anchors, gradually tighten the lines. Apply enough strain to each of the guylines to hold the tower firm and in a vertical position. Then tie off the rope tackles and secure the running ends with half hitches.

Hoisting a Larger Version: 17' high x 8' wide x 6' deep
Hoisting a Larger Version: 17′ high x 8′ wide x 6′ deep

Double Platform Monkey Bridge

Project completed in time for a Scout Expo by a Pioneering Crew for Chicora Chapter, Santee Lodge No. 116, Order of the Arrow
Double Platform Monkey Bridge

It’s a pretty safe to say most Scouts love to climb things. So, it makes sense that if a monkey bridge is combined with something to climb on, it will be even more fun. The challenge in constructing a project like this is to assure the structure can safely support not only the weight of those climbing on the platforms, but also the continual stress created by repeatedly crossing the rope bridge. Building this version of a double platform monkey bridge entails quite a few subassemblies and a procedure with many steps. Basically, with the materials listed, the ropes span a distance of 25 feet between two identical square platforms 4 feet wide and 8 feet high. At the front of each platform is an X-brace just under 5 feet high, providing a V for the foot rope. The hand ropes run through the junction where the X-braces intersect the top of the front legs, and then extend down joining the foot rope at a log-stake anchor 10 feet behind the back of each platform.

Bridge in operation during a Scout Expo
Bridge in operation during a Scout Expo

Here are the materials needed to construct the project:

  • eight 8-foot x 4-inch spars for platform legs
  • four 8-foot x 3-1/2-inch spars for X-braces
  • four 6-foot x 2-1/2-inch diagonal side braces
  • eight 4-foot x 3-inch spars for side base spreaders (4) and platform supports (4)
  • sixteen 4-foot x 2-inch spars for ladder rungs (10), handrails (4) and X-brace leg spreaders (2)
  • twenty-four 4-foot x 2-inch floor spars
  • two 4-foot x 4-inch log and stake anchor logs
  • sixteen 30-inch pioneering stakes for 2 log-stake  anchors
  • sixteen large wooden stakes for the 8 guyline 1-1 anchors
  • sixteen small tourniquet stakes
  • two rope grommets with large O-rings
  • one 70-foot x 1/2 or 3/4-inch manila foot rope
  • two 70-foot x 1/2-inch manila hand ropes
  • eight 8-foot x 1/4-inch manila spanner ropes
  • thirty-six 15-foot x 1/4-inch manila lashing ropes
  • twenty-six 20-foot x 1/4-inch manila lashing ropes (for X-braces, base spreaders and platform supports)
  • eight 25-foot x 3/8-inch manila guylines
  • four 35-foot x 1/4-inch manila lashing ropes for floor spars
  • six burlap or canvas saddles (for the foot rope and hand ropes)
  • two large mallots
  • Binder twine
  • Tape Measure
Anchors are being built as sides are being connected.
Anchors are being built as sides are being connected.

Tips:

• Participants should be well-acquainted and experienced in the skills required for building this project.

• Select a project leader who will divide the participants into work groups, assign tasks, and oversee operations.

• Before proceeding, position the materials in proximity to the location where the project will be placed. It’s good to organize the materials by the tasks for which they’re needed.

• Depending upon how many Scouts are participating (will there be a small group of 6 Scouts, or a large group of 24), many of the subassembly steps needed to finish the project can be completed simultaneously. This division of labor can enormously streamline the project’s completion.

• If the opportunity presents itself, it can very  helpful to initially lay out the hand and foot ropes, in conjunction with completing Task E, before proceeding with Tasks A & B.

• The following tasks can be completed at the same time:

  1. Tasks A 1 & 2  /  B 1 & 2  /  Tasks D  1 & 2 and E
  2. Task C  1  /  Task C  2
  3. Task F 1 & 2 /  Task H 1 & 2
  4. Tasks I & J  /  Tasks K, L & M

• If one task is taking longer to complete, workers from other groups can lend a hand and help finish it up so the next step can commence.

• Placing a 4-foot spar underneath the spars lying on the ground, in a strategic position, will raise the project sides up and make lashing much easier.

• There are 64 square lashings in this project and, for stability and safety, they must be tight! For speed and efficiency, the Japanese Mark II Square Lashing is highly recommended.

Ladder Side
Schematic of Ladder Sides

TASK A – 1 & 2: Building the ladder sides of the platforms. 1) Lay out two 8-foot legs side by side. Space the spars apart so that the distance from the middle of each spar, at both the top and bottom ends, is 40 inches. Use a tape measure. Also, make sure the butt ends are at the bottom and absolutely even. Starting 6 inches up from the butt end, connect the legs by lashing on a 4-foot ladder rung directly above the 6 inch mark, with tight square lashings.

Using a tape measure, measure 5 feet up from the butt end of each leg, lash on another ladder rung, directly below, just touching, the 5-foot mark, ON THE OTHER SIDE (what will become the inside) of the legs. See the diagram on the right.

Right in the middle of these two ladder rungs, lash on another ladder rung, and then, between the middle ladder rung and the top and bottom ladder rungs, lash on two more. Use tight square lashings.

2) Repeat the whole process on two other 8-foot legs for the other platform.

Assembling the X-Brace Side
Assembling an X-Brace Side

TASK B – 1 & 2: Building the X-brace sides of the platforms.

The premise for these sides is the X-braces have to cross each other  just under 5 feet for the foot rope, and they have to intersect the tops of the legs equally on each side for the hand ropes. Because of the size of the spars involved, and the necessity for very secure connections that do not shift, use 20-foot lashing ropes and two Scouts for each X-brace square lashing.

1) Lay out two 8-foot legs side by side. Space the spars apart so that the distance from the middle of each spar, at both the top and bottom ends, is 40 inches. Use a tape measure. Also, make sure the butt ends are at the bottom and absolutely even. Starting 6 inches up from the butt end, connect the legs by lashing on a 4-foot ladder rung as a leg spreader, directly above the 6-inch mark, with tight square lashings.

Schematic of X-Brace Sides
Schematic of X-Brace Sides

With a tape measure, mark 56 inches up from the butt end of each leg.

Temporarily stretch a piece of binder twine over each 56-inch mark and tie it to each leg to help define where this intersecting line lies. It’s at the middle of this line where the X-braces need to cross so that the foot rope will extend just underneath the floor spars of the platform.

Lay out an 8-foot X-brace spar diagonally in such a way that the top end lays over one leg about 4 inches from the top of the leg, and extends out approximately 6 inches from the side. Angle the spar so that it will cross the middle of the intersecting line (56 inches up from the butt ends of the platform legs). Line up the bottom end of this X-brace so that it is positioned under the bottom of the opposite leg. Lash the spar in place with tight Square Lashings.

Lay out a second 8-foot X-brace spar on top of both legs so that it creates an X.  Angle this spar so that it will cross the middle of the intersecting line (56 inches up from the butt ends of the platform legs). Make sure this spar also extends out approximately 6 inches from the side and that it intersects the leg at the same distance from the top as the X-brace on the other side. Lash this spar in place over both legs with a square lashing. It’s between the top of the front legs and the extension of the X-braces that the hand ropes will be supported.

Now, with a diagonal lashing, lash the middle of  both 8-foot X-braces springing them together where they cross, using a 20-foot lashing rope.

2) Repeat the whole process with the two remaining 8-foot legs.

Schematic of Connecting Side
Schematic of Connecting Sides

TASK C – 1 & 2: Connecting the Ladder and X-brace sides. (If Task E has already been completed, before joining the ladder and X-brace sides, carry the two completed sides for each platform to the approximate location where they will eventually be positioned.)

1) Turn both a ladder side and an X-brace side up horizontally, parallel to one another. On the X-brace side, make sure the leg spreader and the X-brace spars are facing out. Space the legs apart so that the distance from the middle of each leg, at both the top and bottom ends, is 40 inches. Use a tape measure. Also, make sure the butt ends are absolutely even. With tight Square Lashings, join both sides by lashing a 4-foot side base spreader to the legs just below the bottom leg spreaders with a 20-foot lashing rope.

On the inside of the platform, using a 20-foot lashing rope, lash a 4-foot platform support to both legs so that the top edge comes up to 58 inches on both sides (directly under and as close as possible to the top ladder rung on the ladder side.). We will be laying the floor spars on top of this support.

Lash a 4-foot hand rail (same as ladder rung) to the top of both legs.

Lay a 6-foot diagonal side brace diagonally over both legs, between the base spreader and platform spreader, and lash in place using square lashings.

To join the other side, carefully lift and roll the platform over 180°, supporting the spars as much as possible, and repeat the above steps.

2) Repeat the whole process to join the ladder side and X-brace side of the other platform.

TASK D: Stand the platforms upright. With three Scouts lifting at the ground-level handrail, and two to three pulling on the other handrail, raise the platform to an upright position. If TASK E has been completed, we can proceed to Task G.

TASK E: Site preparation. Begin by stretching a length of binder twine along the center line of where the ropes will span. Drive a tent stake into the ground marking the center.

Working from the center, measure 12-1/2 feet toward each end and drive another tent stake to mark where the X-braces of each platform are to be placed. They should be 25 feet apart. Then with two other tent stakes, mark out another 14′ to where the anchors are to be built.

25' span, 4' platforms, 10' to anchors
25-foot span, 4-foot platforms, 10 feet to anchors
Log Stake Anchor Diagram. Click image for larger view.
Log Stake Anchor Diagram

TASK F – 1 & 2: Build the anchors. The foot and hand ropes will be attached to anchors at both ends.

1 & 2) Build a log-and-stake anchor (also known as a log and picket holdfast), 14 feet from where the X-braces of each platform are to be placed. To make the log-and-stake anchors, place one of the 4-foot x 4-inch logs perpendicular to the pull of the line, 14 feet from where the X-brace side will be. Drive in a row of four pioneering stakes spaced evenly in front of the log, leaning them back at a 45° angle. Slip a rope grommet through an O-ring and then slip the ends of the grommet around the log (see diagram). Drive a second row of pioneering stakes 24 inches behind the front stakes. Then anchor the front pioneering stakes to the rear pioneering stakes with a tourniquet made of binder twine or rope using four tent stakes. After twisting the tourniquet tight, hammer the tent stake into the ground to keep it from loosening.

TASK G – 1 & 2: Position the platforms. All hands on deck! Move both upright platforms into position no more than 25 feet apart. Place them on the binder twine that marks the center line of the bridge, making sure the X-braces of each are facing each other 10 feet from the center mark.

Bridge in Operation at a Council-wide Scout Expo
Bridge in Operation at a Council-wide Scout Expo

TASK H – 1 & 2: Lash on the floor. Lay 4-inch floor spars on top of the platform supports so that the ends extend out evenly on each side. Using the Double Floor Lashing and the 35-foot lashing ropes, lash the floor securely in place.

TASK I – 1-8: Add anchors for platform guylines. For added stability, we’ll be adding four guylines to each platform. To start, measure 10 feet, 45° out from each leg and drive in a 1-1 anchor.

TASK J – 1-8: Secure the platforms. Attach one of the 25-foot x 3/8-inch guylines to each leg, directly above the floor spars, with a roundturn with two half hitches.

Extend the guyline down to the corresponding 1-1 anchor and attach it to the anchor with a rope tackle. Repeat this process at each leg.

TASK K: Foot rope. First place a piece of heavy canvas (called a “saddle”) in the top V formed by the X-braces. This will protect the foot rope and allow it to slide a little as needed.

If the foot and hand ropes are not already laid out during Task E, two Scouts will be needed to stretch the foot rope out, aligning the center of the rope with the center stake along the binder twine.

Next, lay the ends of the rope over the saddle in the V formed by the X-braces on each platform. Then, maintaining the rope’s center alignment between the platforms, extend the rope under the platforms, through the ladder sides and pulling it somewhat taut, thread the ends through the O-rings attached to the log-and-stake anchors. Tie these off temporarily with a roundturn with two half hitches.

TASK L: Hand ropes. Two Scouts will be needed to stretch the hand ropes out on either side of the foot rope, aligning the center of each with the center stake along the binder twine.

Climb the platforms and place saddles in the crotch between the X-brace extensions and the front legs.  Maintaining the center alignment between the platforms, place one hand rope over its corresponding saddles. Then extend the rope down, crossing it over the outside of the top ladder rung, pull it taut, and thread the ends through the O-rings attached to the log-stake-anchors. Tie these off with a roundturn with two half hitches. Repeat the process for the other hand rope.

Good Show!

TASK M: Stringer ropes. Now add the stringer ropes that will go from the foot rope to the hand ropes. Start by tying the center of an 8-foot long stringer rope at the center of the foot rope, using a clove hitch. The stringer rope is tied around the foot rope so that both ends are 4 feet long. Add two more stringer ropes on both sides of the center stringer rope (so there are five stringer ropes in all), tying them about 4 feet apart.

Tie one end of each stringer rope to one of the hand ropes, again using a clove hitch. Then do the same with the other ends of the stringer ropes, attaching them to the other hand rope.

TASK N: Tighten the foot rope and hand ropes. Now you can put a strain on the foot rope. Undo the Roundturn with Two Half Hitches, and make a rope tackle on each end of the foot rope. Two Scouts will need to adjust the tension at each rope tackle so that the middle of the rope stays midway between the platforms.

As needed, adjust the tension of the hand ropes by tightening them at the anchors and retying the roundturn with two half hitches.

Final testing. With caution, one crew member can get on the bridge as all lashings, anchors, and knots are observed by the safety officer and all other crew members. Make adjustments as required.

Safe operation calls for only one Scout to be on the foot rope of the monkey bridge and up to two on either platform at a time.

Single A-Frame Bridge

Two A-Frame Bridges in the  Early Morning Fog on Garden Ground Mountain at the Summit Bechtel Reserve
Two Single A-Frame Bridges in the Early Morning Fog on Garden Ground Mountain at the Summit Bechtel Reserve

The simplest of all crossing bridges is the Single A-Frame Bridge. The design was featured at the 2013 National Jamboree which afforded Scouts an opportunity to construct the bridge right on the spot.

Single A-Frame Bridges at the Jamboree

Single A-Frame Bridge Pictorial

Link to: Older Pamphlet InfoThe following text is by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

Building this bridge is quite simple because there are very few lashings needed for the center A-frame. The A-frame is a triangular shape that resists racking and provides strength for the structure.

A-frame. Start this project by determining the depth of the creek or ravine to be spanned. You have to add 8 feet to that measurement to get the total height of the legs for the A-frame. For example, to span a creek 4 feet deep, the legs of the A-frame should be about 12 feet or longer.

This total length allows for the distance from the butt ends of the A-frame legs up to the transom that supports the walkways. The transom should be about 1 foot higher than the banks of the creek. It also allows for the height from the walkways up to the tops of the legs to permit free passage for a person along the walkways.

Lay the A-frame subassembly out on the ground to check if the spars are long enough when lashed together for the two requirements mentioned above.

A-frame Legs. When you’ve determined the length of the spars for the legs of the A-frame, lash them together at the top with a shear lashing, not a diagonal lashing. This lashing should be made somewhat loose so that you can spread the spar legs apart to form the A-frame. As you spread the spar legs, the Shear Lashing will tighten. A little practice will show you how loose to make the shear lashing initially in order for it to be tight when the A-frame is formed.

View of A-frame and Attachment of Walkways
View of A-frame and Attachment of Walkways

Ledger and transom. To complete the A-frame, use square lashings to lash the bottom ledger across the legs about 1 foot from the bottom of the legs. Then lash a transom spar to support the walkways at the proper height in relation to the banks of the creek.

Walkways. The two 10-foot walkway sections are made as separate subassemblies. (Refer to “Bridge Walkways.”)

Assembly. After the walkways are made, take them to the assembly site along with the A-frame. Place the A-frame in the center of the creek and heel in the legs about 4 to 6 inches deep. As the legs are being heeled in, level the transom to accept the walkways in a level position.

Single A-Frame Bridge
Single A-Frame Bridge

When the A-frame is upright and the transom is level, lash both underspars on the walkways to the transom with strop lashings at three points. Finally, lash the cross spars at the ends of the walkways to stakes on the banks of the creek with Strop Lashings.

For safety, it’s best to add a light 1/4-inch guyline from the top of the A-frame to both sides of the creek to prevent it from tipping over.

List of Materials for a A-Frame Bridge

  • two 3-inch x 12-foot A-frame legs
  • one 2-inch x 6-foot bottom ledger
  • one 3-inch x 6-foot transom
  • four 3-inch x 10-foot walkway lateral spars
  • twelve 2-inch x 3-foot walkway cross spars
  • four 2-1/2-foot  walkway cross spars
  • two 2-inch x 10-foot walkway planks
  • four stakes

Single Trestle Bridge

Single Lock Bridge

Single Lock Bridge

CLICK HERE FOR COLOR PHOTOS, COMMENTARY, AND SOME FURTHER GUIDELINES ON BUILDING A SINGLE LOCK BRIDGE.

Single Lock Bridge Photo Scanned from 1967 Field Book
Single Lock Bridge Photo Scanned from 1967 Field Book

Link to: Older Pamphlet InfoThe following text is by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

The single lock bridge shown here is a well-established and basic design. The list of spars shown for this project should build a bridge to span a creek or ravine approximately 4 feet deep and 18 feet from bank to bank.

Trestles. The bridge consists of two trestles and two walkways. Begin by building the two trestles as subassemblies. Adjust the length of the spars for the trestle so that when they are placed in the creek, as shown in Drawing 2, the tops of the ledgers will be about 1 foot above the level of the banks of the creek. This will give a comfortable slant to the walkways.

Drawing 1: Trestle Schematic
Drawing 1: Trestle Schematic

When constructing the two trestles, build only one trestle first. Then as the second trestle is being built, make sure that the legs are narrower at the top and fit between the legs of the first trestle (see Drawing 1).

Walkways. Next, the two walkways are constructed as subassemblies. Each walkway consists of two lateral spars. six cross spars, and two longer cross spars. One of these two longer cross spars is used as an underspar at the end of the walkway that is attached to the transom. The other longer cross spar is used to attach to the stakes. (Refer to Bridge Walkways.)

Interlocking Trestles
Drawing 2: Interlocking Trestles

Assembly. After building the trestles and walkways, take them to the assembly site (the creek or ravine). Place the trestles in the center of the creek so that the tops of the trestles are interlocked (see Drawing 2). Then lift a 3-inch diameter transom spar to fit on top of the interlocked trestle legs.  Now, heel in the bases of the legs in holes 4 to 6 inches deep. As you’re heeling in the legs, level the transom spar so that the walkways don’t slant when they’re added.

Next, the two walkways are put into position (see Drawing 3). Lash the underspars on the walkways to the transom spar with Strop Lashings at three points. Finally, the cross spars at the ends of the walkways are lashed to the stakes.

By lashing the walkways to the transom spar and lashing the ends of the walkways to the stakes, you make a complete walkway unit that will prevent movement and provide a sturdy bridge deck.

Drawing 3: Fully Assembled Single Lock Bridge
Drawing 3: Fully Assembled Single Lock Bridge

List of Materials for a Single Lock Bridge

  • four 3-inch x 6-foot trestle legs
  • four 2-1/2-inch  x 4-foot trestle ledgers
  • one 3-inch x 4-foot trestle transom
  • four 2-inch x 6-foot cross braces
  • four 3-inch x 10-foot walkway lateral spars
  • twelve 2-inch x 3-foot walkway cross spars
  • four 2-inch x 3-1/2-foot walkway cross spars
  • two 2-inch x 10-inch x 10-foot walkway planks
  • four stakes

CLICK HERE FOR COLOR PHOTOS, COMMENTARY, AND SOME FURTHER GUIDELINES ON BUILDING A SINGLE LOCK BRIDGE.

Single Trestle Bridge

SingleLockVertical
Summer Camp: Pioneering Merit Badge Class

CLICK HERE FOR COLOR PHOTOS AND COMMENTARY.

This simple crossing bridge uses only a single trestle and two walkways. The legs of the trestle are extended up above the walkway to provide a way to attach a handrail. The length of the spars listed for the walkways and trestle will be enough to build a bridge that will span a creek or ravine that’s up to 4 feet deep and 18 inches wide.

This project can be broken into three subassemblies: the trestle, the two walkways, and the four light spars for handrails.

Trestle. Begin by building the trestle. The legs for the trestle should be spars that are about 3 inches in  diameter and 8 to 10 feet long. When choosing these spars, take into account the depth of the creek you’re crossing.

The distance from the base of the legs to the top ledger (transom) on the trestle should be about 1 foot higher than the level of the banks of the creek. This will allow the walkways to slant up. Then allow an additional 4 feet in height on the legs from the top ledger up to the top of the legs for attaching the handrail.

The top ledger of the trestle should be about 3″ in diameter since it also acts as the transom and carries all the weight of the walkways and the person using it. The bottom ledger can be smaller: a 2 inch diameter spar will work here.

Drawing 1: Trestle Heeled in with one walkway positioned.
Drawing 1: Trestle Heeled in with one walkway positioned.

The trestle is assembled with Square Lashings to hold the ledgers and the ends of the cross braces to the legs. The center of the cross braces is lashed together with a Diagonal Lashing.

Walkways. The two walkways are assembled as separate sub assemblies. (Refer to Bridge Walkways.) Be sure to make the cross spar at the end of the walkway long enough to attach to both the stakes and the handrails without getting in the passageway.

Assembly. To assemble the bridge, set the trestle in the center of the creek. Heel in the bottoms of the trestle legs by setting them in holes approximately 4 to 6 inches deep (see Drawing 1). This will prevent the trestle from shifting, and is also a way to level the transom spar as the trestle is set in place so that the walkways are level.

Next, put the walkways in position from both sides and lash the walkways’ underspars to the transom (top ledger) of the trestle. Then drive stakes at the other end of the walkways. Lash the ends of the cross spars on the walkways to the stakes.

Handrails. Finally, handrails are provided to help those crossing the bridge and also add strength to the structure of the bridge. When the handrails are added, they form triangles with the walkway and the trestle leg. These triangles produce a strong structure that prevents the bridge from racking. Lash the handrails to the top of the trestle legs and to the stakes with simple Strop Lashings (see Drawing 2).

single_trestle_bridge
Drawing 2: view of assembled bridge with handrails.

List of Materials for a Single Trestle Bridge

  • 2    3-inch x 8 or 10-foot trestle legs
  • 1    3-inch x 4 -foot trestle top ledger (transom)
  • 1    2-inch x 4-foot trestle bottom ledger
  • 2    2-inch x 6-foot cross braces
  • 4    3-inch x 10-foot walkway lateral spars
  • 12  2-inch x 3-foot walkway cross spars
  • 4    2-inch x 3-1/2-foot walkway cross spars
  • 2    2-inch x 10″ x 10-foot walkway planks
  • 4    2-1/2-inch x 12-foot handrails
  • 4    stakes

Double A-Frame Monkey Bridge

—> EXPLANATIONS, DETAILED INSTRUCTIONS, AND ILLUSTRATIONS!

—> EXPLANATIONS, DETAILED INSTRUCTIONS, AND ILLUSTRATIONS!

On November 14, at the Chicora District Webeloree, (gathering of 4th and 5th Grade Webelos Scouts), a crew from Troop 888 put up the troop’s eighth Double A-Frame Monkey Bridge. The event was geared mainly towards those Scouts who hadn’t yet had a hands-on experience assembling a bridge. Scouts gathered at 8:30, and the bridge was ready for a test walk by 10:00 a.m. Lending a hand were: Ian Baker, Dominick Bezmen, Geoff Britzke, Will Hall, Jason Hardee, Daniel Mesich, Sam Snodgrass, and Greg Spatholt. The following steps went into building the bridge: Scouts lash together two 8ʼ spars and one 6ʼ spar to form four A-Frames, Two A-Frames are joined together to form each side of the bridge. The Double A-Frames are held up in the proper positions and at the right distance. Two Hand Ropes and one Foot Rope are tied on and anchored at either end. Spanner Ropes are added to the Hand Ropes and Foot Ropes. The Monkey Bridge is tested and adjustments are made as necessary. Scouts supervise Webelos interested in crossing the bridge. The bridge was able to support a 270 pound adult! Lashing and knot-tying savvy are important in any large pioneering project, but teamwork is the key. A 14’ Double Ladder Tower is scheduled for Feb.

—> EXPLANATIONS, DETAILED INSTRUCTIONS, AND ILLUSTRATIONS!

FOur and a half years ago we studied the plans for a Double A-frame Monkey Bridge in the Pioneering Merit Badge Pamphlet. Four and a half years later, we're still using the same pine spars cut from behind the house and putting up bridges on selected camping trips and Scouting events. The lashings and methods we learned are constantly being passed on to new Scouts. The techniques are the same but with some slight improvements. Like a sheer lashing is tied to the tops of the A-frames instead of a square lashing. And after this last bridge, we're now frapping the strop lashings on the bottom when lashing the two A-frames together. This makes them real tight. After four and a half years, the bridges are still as much fun as ever, and with moe advanced teamwork and sharper skills, they're going up a whole lot faster too. Our SPL goes through the ticky process of lashing two A-frames together where the 8 foot spars cross. The A-frames are steadied as the hand rope is attached with a clove hitch on each side. The bridge is tested before the final tightening of the hand and foot ropes. The bridge went up in about an hour and took ten minutes to take down.

—> EXPLANATIONS, DETAILED INSTRUCTIONS, AND ILLUSTRATIONS!

Double A-frame monkey bridge (Our first Built with Laminated Spars) Square Lashing an A-frame corner, joining together the bottoms of two A-frames with round lashings, adjusting the clove hitch on a spanner rope as Scouts wait their turn to cross the bridge, crossing the fully assembled monkey bridge on a camping trip.

—> EXPLANATIONS, DETAILED INSTRUCTIONS, AND ILLUSTRATIONS!

Double Tripod Chippewa Kitchen




—> CLICK HERE FOR INSTRUCTIONS, FURTHER INFORMATION AND ILLUSTRATIONS!

After assembling the tripods and lashing on the braces, Scouts lash on the cooking platform on a Double Tripod Chippewa Kitchen

Scouts cut a couple of burlap bags before adding a layer of mineral soil to make the cooking surface.

—> CLICK HERE FOR INSTRUCTIONS, FURTHER INFORMATION AND ILLUSTRATIONS!

 Lit charcoal chimneys are placed on the cooking surface and monitored.

Pouring out the Charcoal. When the coals are ready, they're spread over the cooking surface of the Chippewa Kitchen.

—> CLICK HERE FOR INSTRUCTIONS, FURTHER INFORMATION AND ILLUSTRATIONS!

Foil food packets are cooked over the coals on a Chippewa Kitchen

14′ Double Ladder Signal Tower

This signal tower went up on a camping trip in March of 2000 in a large grassy field. The operation took a little over two hours. PHASE 1: Before we started, a well-muscled sledge hammer crew, made up of Jason Hardee, Theodore Fontana, Cory Keibler, Kurt Lester, and Will Hall, took turns pounding in 24 three-foot pioneering stakes to make up the four “1-1-1” anchors needed to tie the tower down. PHASE 2: A crew assembled the 2 fourteen foot ladders. (All Scout campers tied at least one of the fifty square lashings required to put together the completed project.) PHASE 3: Another crew held the ladders in position while they were lashed together. Thanks to Jason for his diagonal lashings, and Theodore and Hiram for their help in lashing down the floor spars making up the platform. PHASE 4: The tower is hoisted with Scouts manning each corner guyline and the rope used to make sure the tower isn’t pulled too far before it’s secured. Thanks to Michael O’Neil who was in charge of tightening the guylines using the rope tackles at each of the anchors
This signal tower went up on a camping trip in March of 2000 in a large grassy field. The operation took a little over two hours. PHASE 1: Before we started, a well-muscled sledge hammer crew, made up of Jason Hardee, Theodore Fontana, Cory Keibler, Kurt Lester, and Will Hall, took turns pounding in 24 three-foot pioneering stakes to make up the four “3-2-1” anchors we thought we needed to tie the tower down. (For years, we overlooked the fact all we really needed were 1-1 anchors.) PHASE 2: A crew assembled the 2 fourteen foot ladders. (All Scout campers tied at least one of the fifty Square Lashings required to put together the completed project.) PHASE 3: Another crew held the ladders in position while they were lashed together. Thanks to Jason for his Diagonal Lashings, and Theodore and Hiram for their help in lashing down the floor spars making up the platform. PHASE 4: The tower is hoisted with Scouts manning each corner guyline and the rope used to make sure the tower isn’t pulled too far before it’s secured. Thanks to Michael O’Neil who was in charge of tightening the guylines using the rope tackles at each of the anchors

The current Guide to Safe Scouting states, “Pioneering projects, such as monkey bridges, have a maximum height of 6 feet. Close supervision should be followed when Scouts are building or using pioneering projects.” However, under certain circumstances and in accordance with some recently revised standards, Scouts CAN again build and CLIMB ON this and other tower structures. Refer to: NCAP Circular No. 2, pages 3 and 4.

—> RECENT TOWER CONSTRUCTION <—

14′ Boy Scout Tower Gateway (Four Flag Tower)

Jamboree Pioneering Area: Towers

The following text is by Adolph E. Peschke as presented in the 1998 printing of the 1993 edition of the Pioneering Merit Badge Pamphlet:

This project solves the old problem of wanting to build a signal tower when there aren’t enough big spars to do the job. The double ladder tower requires four 14-foot spars and several smaller spars, but not nearly the amount needed for a four-leg signal tower. It also cuts down the number of lashings required.

This tower is not free standing. It requires the use of guylines to hold it steady. Review the sections on anchors and rope tackle if this is your first encounter with guylines.

Assemble the ladders. This project begins with building two ladders: a climbing ladder and a supporting ladder. Lay out two pairs of spars on the ground for the legs of the ladders. Be sure the butt ends are even at the bottom so that the tower will stand up straight. Before you begin any lashing, mark the positions where the spars that will hold the top platform are to be lashed onto the legs. This is about 4 feet from the top ends of the legs.

To make the climbing ladder, lash ten rungs on one pair of legs at about 1-foot intervals. The top rung should be lashed on where you marked the position of the platform, 4 feet from the top. Also the top handrail is lashed on to complete the climbing ladder.

To make the supporting ladder, lash three spars on the other set of legs to serve as the bottom, center, and top spreaders. The top spreader should be lashed at the point you marked for the platform, 4 feet from the top. Then lash on the top handrail, as on the climbing ladder.

Lash the ladders together. Now you have to join the two ladders to form the tower. Turn the two ladders up on their sides so they’re parallel to each other and approximately 6 feet apart. Check to see that the bottoms are even. Now lash on the base spreader to join the bottoms of the two ladders.

Lash on the platform supporting spar just above the top rung and top spreader on the ladders. Before proceeding, check the measurements from the bottoms of the legs to the platform supporting spar to make sure they’re equal on both legs so that the platform will be level.

Continue by lashing on the top long handrail. The lash on the two side X-braces diagonally between the legs using square lashings to lash the ends to the legs, and a diagonal lashing where they cross.

Figure 137
Figure 137

Lash the other side. To make the lashings on the other side, you have to get the whole crew together to roll the tower over 180° so that it’s laying on the X braces and the other sides of the ladders are up where they will be easier to get to.

Then proceed as before. Lash on the base spreader spar and the platform supporting spar. Again, measure to make sure there’s equal distance from both ends of the platform support spar to the bottoms of both legs. Continue to lash on the top long handrail and finish with the X-braces.

Lash on two more platform X-braces under the platform. These braces go diagonally across the legs just under the platform to help the tower resist racking (see figure 137). Use square lashings to lash them to the legs and a diagonal lashing where they cross.

14' Double Ladder Signal Tower Schematic
14′ Double Ladder Signal Tower Schematic

Before standing the tower upright, lash on the spars to form the platform floor.

Anchors and Guylines. When all the lashings are done, move the tower to where it will be hoisted. Before actually hoisting the tower, lay out the position of the four legs on the ground.  Then determine where the four anchors for the guylines will be placed to steady the legs of the tower. (Refer to the Anchors section to determine the position of the anchors.)

If the tower is positioned to make use of a natural anchor (such as a tree), prepare anchor strops to attach the guylines. For any guylines that won’t be using natural anchors, build anchors using pioneering stakes. At a minimum, you’ll need to build well constructed 1-1 anchors at all four corners.

Attach the four guylines to the legs just above the platform. The guylines should be 3/8-inch diameter manila or polypropylene rope. They’re attached to the legs of the tower using a roundturn with two half hitches and securing the running end of the rope.

Note: For safety reasons, never use a taut-line hitch on guylines, or for that matter, in any pioneering work. This hitch is used when adjustments in the tension are called for. It can slip.

During the Carwash Fundraiser in May of 1997, we raised our third 14 foot Double Ladder Signal Tower. After the tower is lashed together, requiring 50 square lashings, before it can be hoisted, it has to be carried and positioned in the exact location. Once in position, the crew divides into :lifters
Hoisting the 14′ Double Ladder Signal Tower

Hoisting the tower. Hoisting the tower up into a vertical position is done with separate ropes. Do not use the guylines. Tie two lines on the side of the tower being lifted and one line on the opposite side to prevent over pulling and toppling the tower.

You’ll need a whole crew to do the hoisting. First there should be a safety officer who observes for all safety considerations and signs of trouble during the hoisting. There should also be a signal caller who tells the crew members when and how fast to pull on the hoisting ropes and when to stop pulling. Two or more Scouts should be on each of the two ropes. And one or two Scouts should be on the rope on the other side to prevent over pulling the tower.

When everyone is in position, the signal caller should direct the Scouts on the hoisting ropes to hoist the tower into position. As soon as it’s up, temporarily tie the guylines to the anchors using a roundturn with two half hitches.

Heeling in the legs. When the tower is upright, heel in the butt ends of the tower legs in holes about 4 to 6 inches deep. This is done to steady the tower and can also help in leveling the tower to make sure that the platform is level and the tower itself is vertical.

Four 1-1 Anchors
Four 1-1 Anchors

Tighten the guylines. To hold the tower steady, gradually apply strain to each of the four guylines at the same time. One of the easiest ways to adjust the strain is to tie a rope tackle on the anchor ends of the guylines.

As soon as the tower is in position and the legs are heeled in, go to each of the anchors and untie the roundturns with two half hitches and replace it with a rope tackle.

Do this by tying a butterfly knot in each guyline about 6 to 8 feet from the anchor. Then wrap the running end of the guyline around the forward stake of the anchor and back through the loop in the butterfly knot. When rope tackles are tied to all four anchors, gradually tighten the lines. Apply enough strain to each of the guylines to hold the tower firm and in a vertical position. Then tie off the rope tackles and secure the running ends with half hitches.

Test the structure. Before the tower can be put into general use, make a test climb while the safety officer and the whole crew observe all the lashings and anchors to ensure they are all secure.

Note: Some people are not comfortable climbing up to a high place. They should not be encouraged to climb if they are not sure of themselves. Do not pressure anyone to climb the tower if they don’t want to.

1997 EXPO TOWER
1997 SCOUT EXPO TOWER

MATERIALS:

  • four 4-inch x 14-foot tower legs
  • ten 2-inch x 3-foot climbing ladder rungs
  • three 2-inch x 3-foot support ladder spreaders
  • two 2-1/2-inch x 6-foot base spreaders
  • two 2-1/2-inch x 6-foot platform supporting spars
  • two 2-inch x 3-foot platform handrails
  • two 2-inch x 6-foot platform long handrails
  • four 2-1/2-inch x 10-foot X braces
  • two 2-1/2-inch x 8-foot X braces
  • eighteen 2-inch x 3-1/2-foot platform support slats
  • eight pioneering stakes
  • binder twine
  • four 3/8-inch x 50-foot manila guylines
  • thirty-one 1/4-inch x 15-foot manila lashing ropes (for 28 square Lashings and 3 diagonal lashings)
  • twenty-two  1/4-inch x 20-foot manila lashing ropes (for 22 square lashings)

In accordance with current regulations, a fine adaptation consists of replacing the ladder rungs with support side spreaders, and dispensing with the platform floor slats. Lashing one or more long flag poles to the top of the legs and flying banners or flags never fails to elicit a rousing array of cheers, as the Scouts hoist their tower into an upright position!  Click here for project description and materials.
